Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

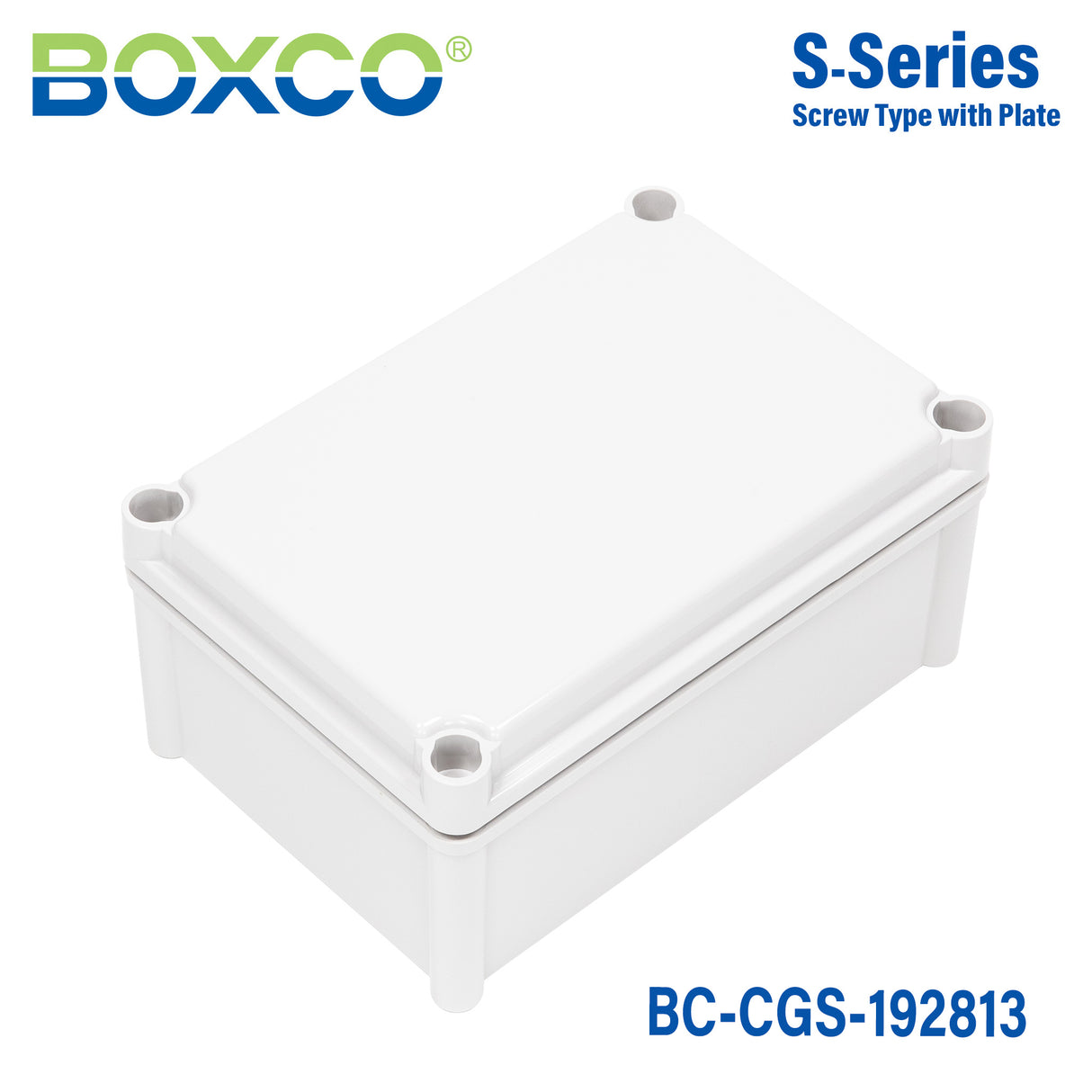

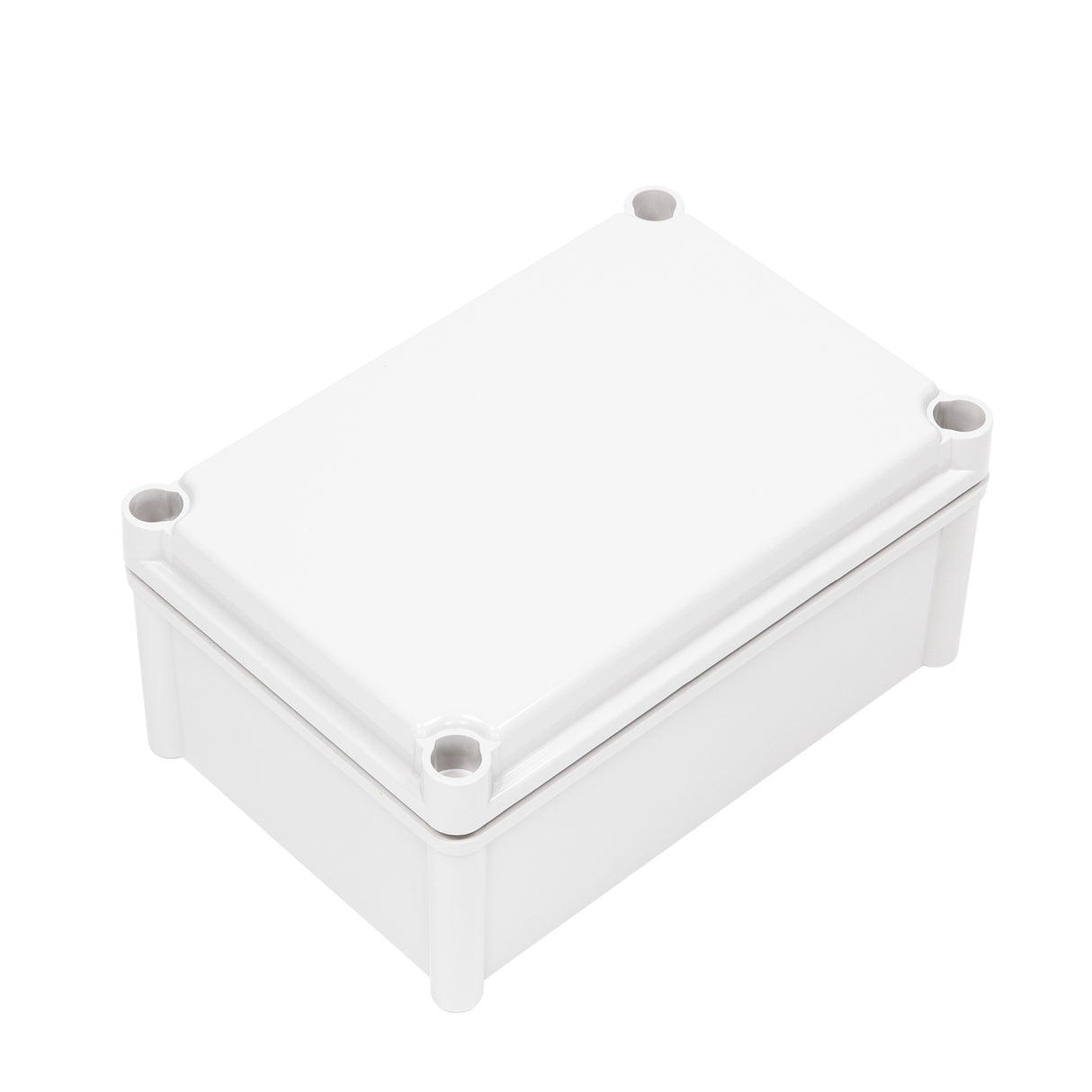

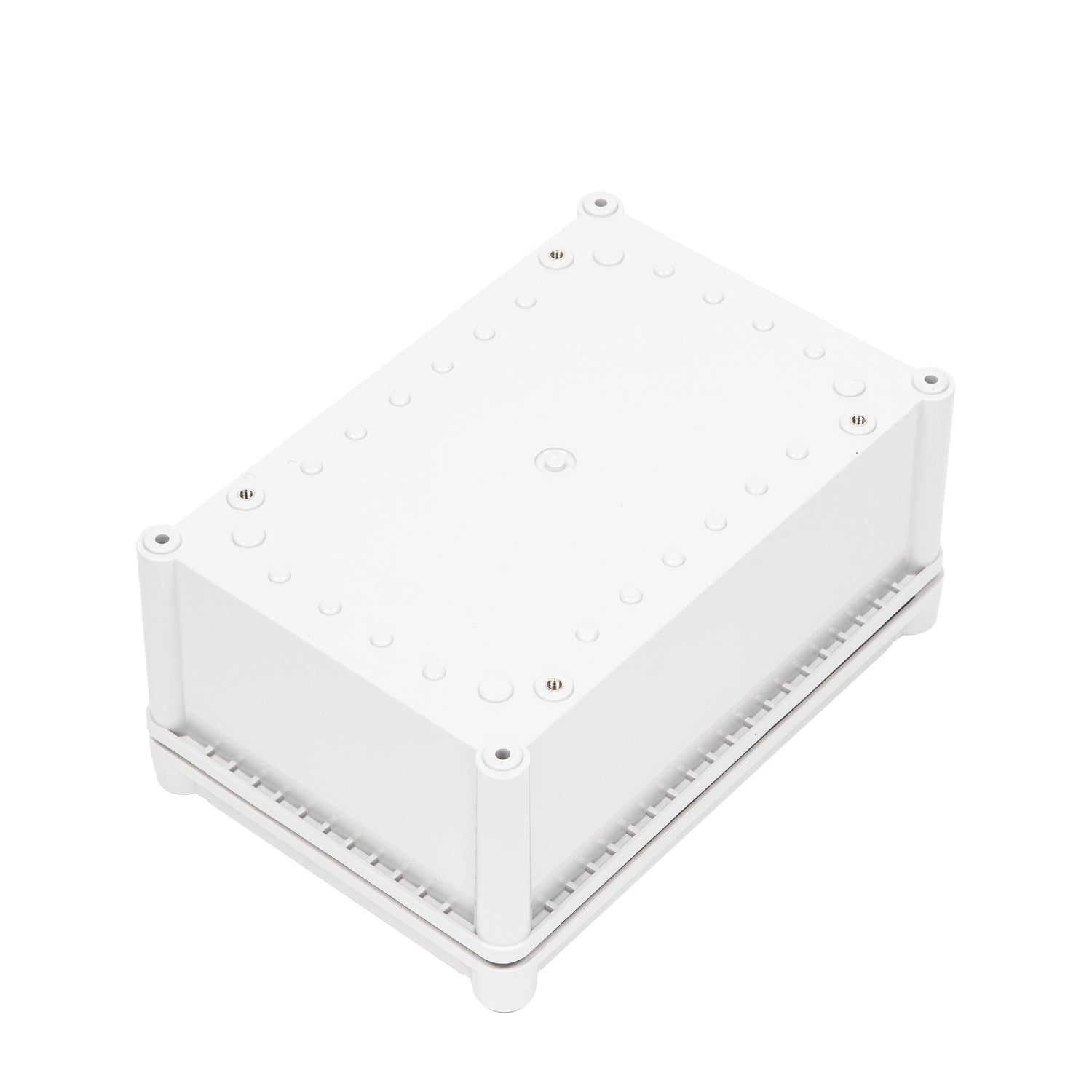

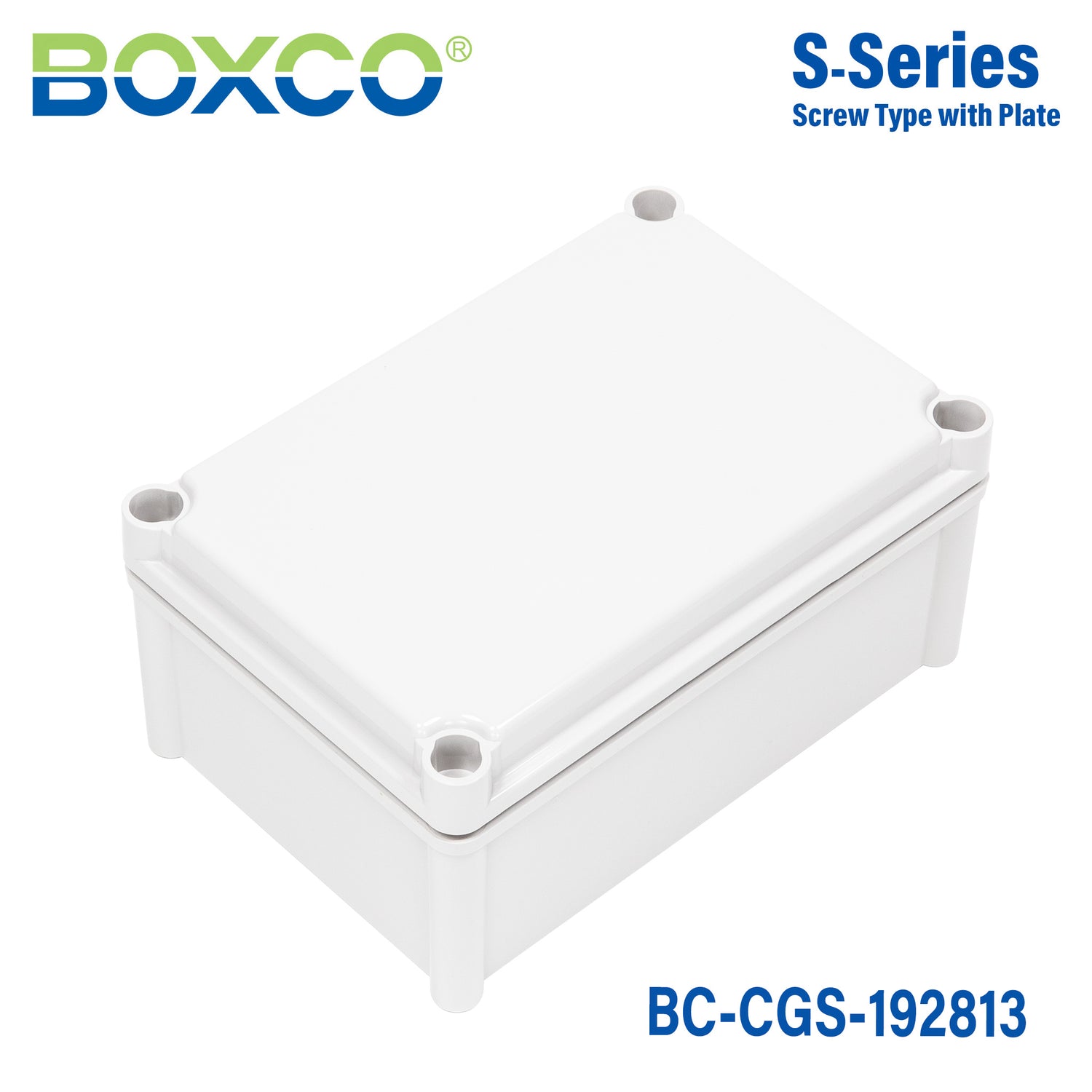

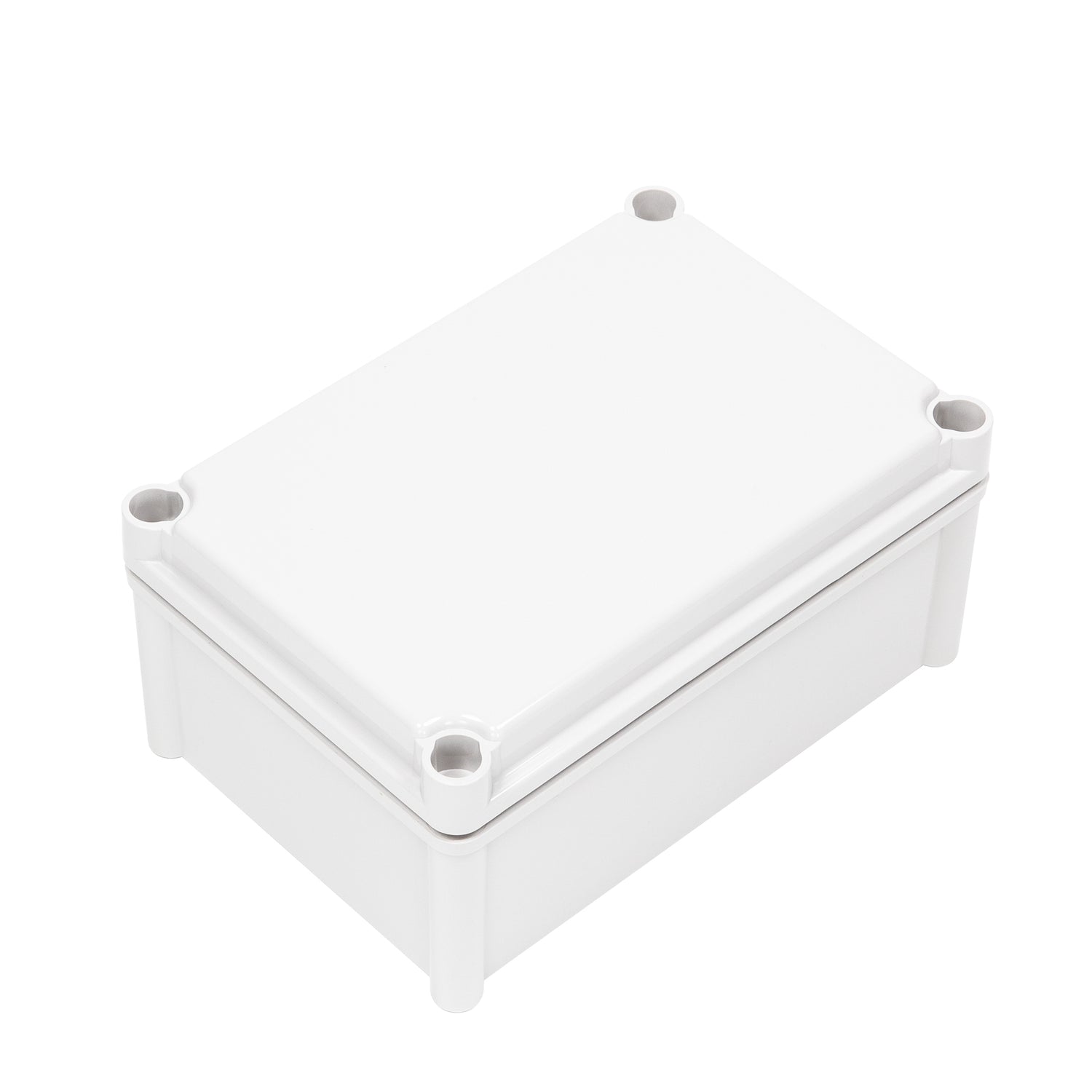

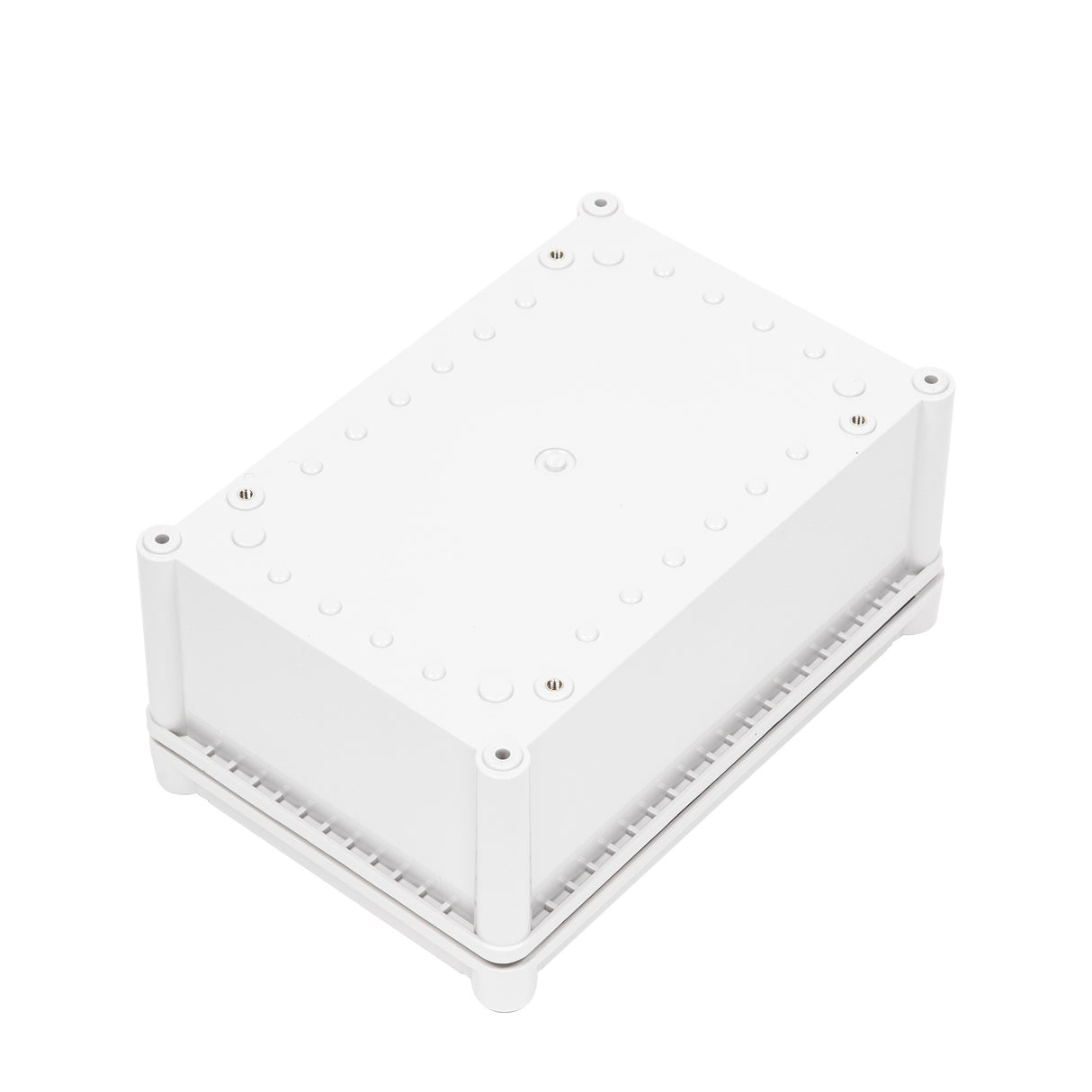

Boxco S-Series 190x280x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU:

BC-CGS-192813

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

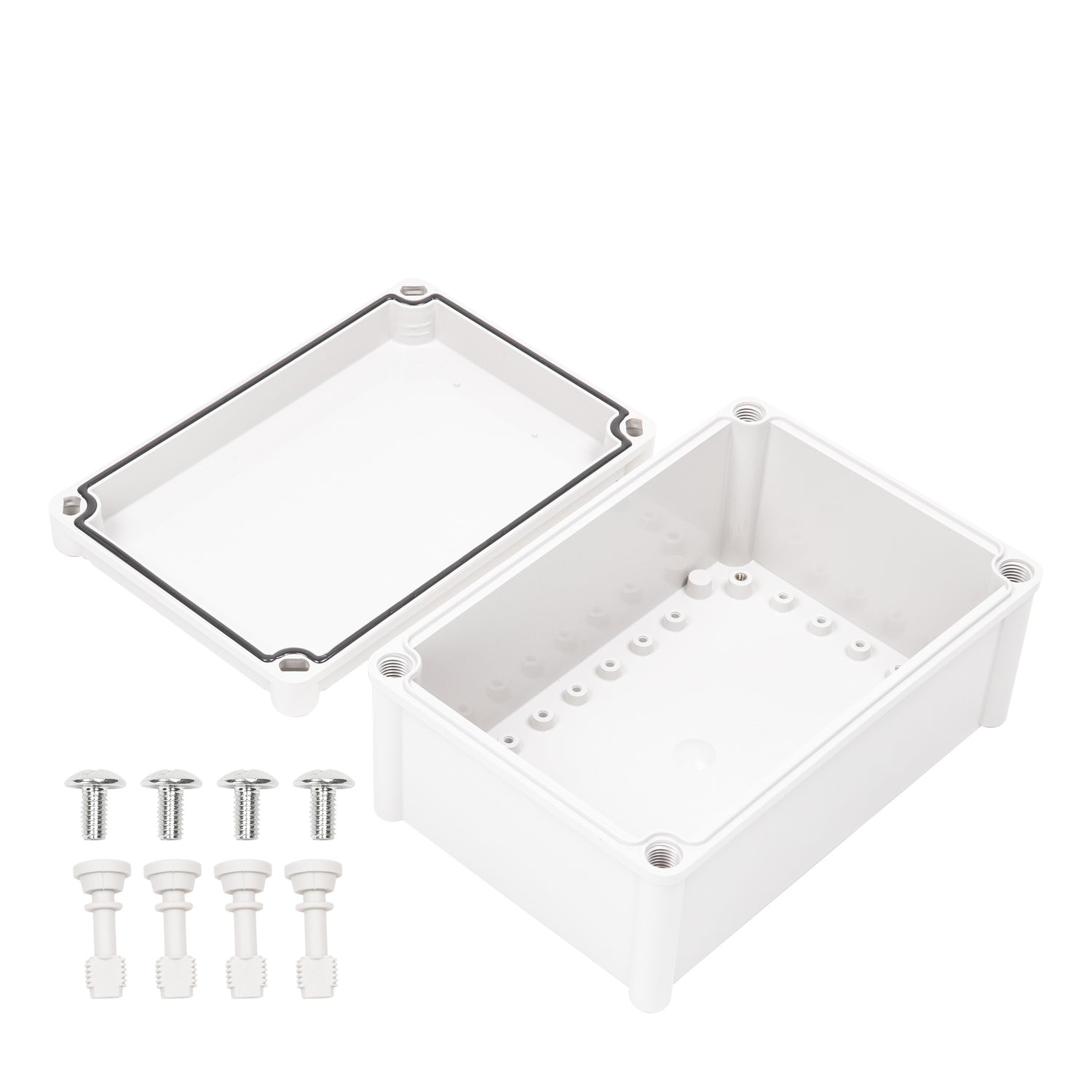

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~110°C
Warranty

1 Year
Length

19 cm
Width

28 cm
Height

13 cm
Weight

0.98 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is this Boxco S-Series enclosure best suited for?

This enclosure is designed for protecting electronic components and instruments in industrial and commercial environments. Its high-impact polycarbonate construction, IP67 sealing, and IK08 impact rating make it a practical choice for outdoor panels, control equipment housings, and other applications that need strong environmental protection.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long periods. Its IP67 rating also supports use where protection from dust and water ingress is important.

What are the key specifications of this enclosure?

This model measures 7.48 x 11.02 x 5.12 inches (190 x 280 x 130 mm) and weighs 0.976 kg. It is a screw-type plastic enclosure with a grey cover, made from polycarbonate, and carries IP67 and IK08 ratings.

What temperature range can this enclosure handle?

This enclosure is rated for use from -40°C to 110°C. That range makes it suitable for demanding environments with both low and high operating temperatures, as long as the full application is designed within those limits.

Does this enclosure support mounting internal components?

Yes. The enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts for securing items such as DIN rail or other internal equipment. These built-in features help support organized component placement inside the housing.

How does this model help protect sensitive equipment?

The enclosure uses anti-static material to help protect sensitive electronic instruments from static electricity. It is also made from high impact-resistant material, which helps protect against external impact and reduces the risk of breakage during machining or processing.
