Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

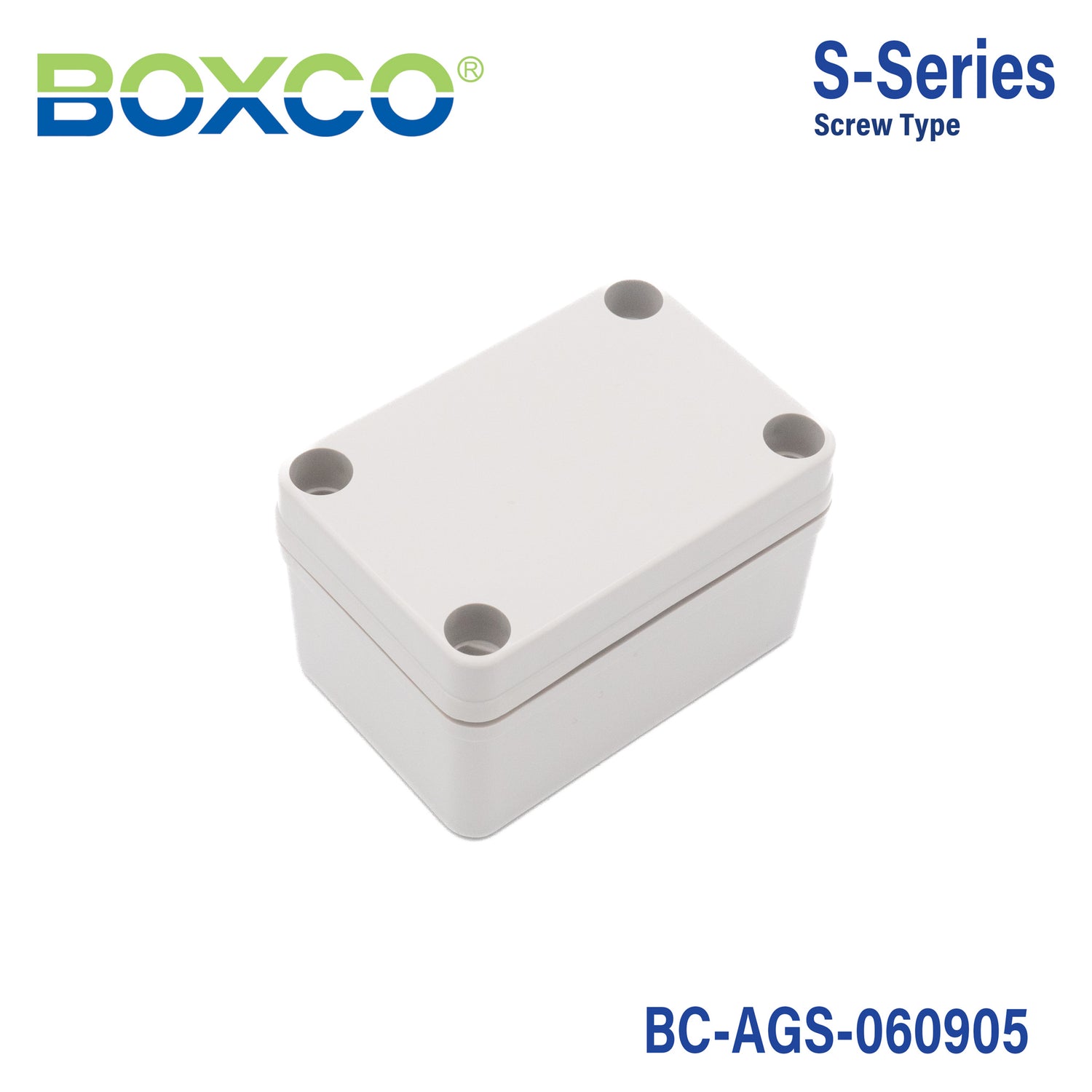

Boxco S-Series 65x95x55mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-060905
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-060905 is a 65×95×55 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-060905Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
65×95×55 mm (2.56×3.74×2.17 in)
Mounting plate dimension M1 × M2
54 × 84 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0609 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

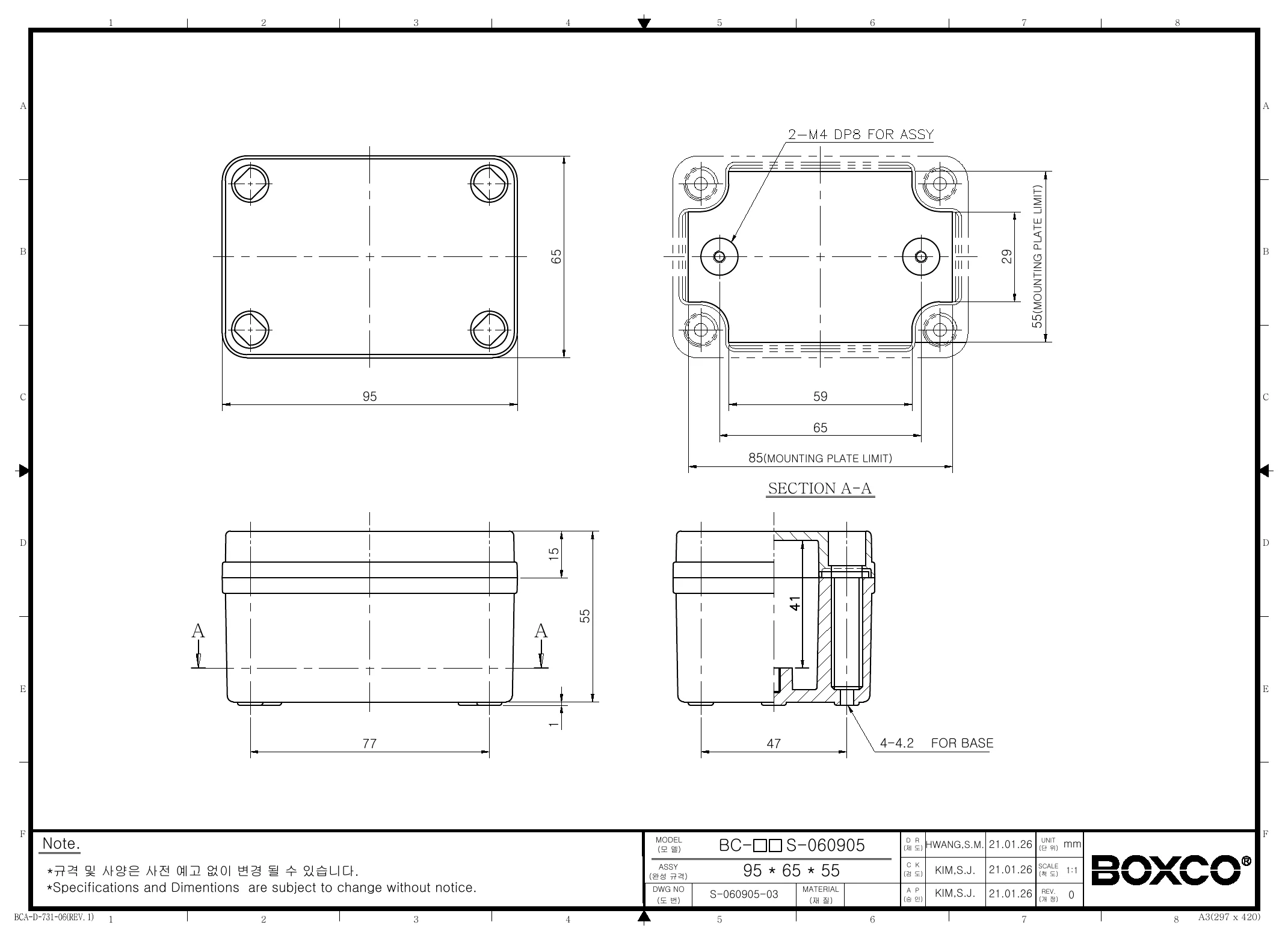

Technical drawings

BC-AGS-060905 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key specifications of the Boxco S-Series BC-AGS-060905 enclosure?

This model measures 2.56 x 3.74 x 2.17 inches (65 x 95 x 55 mm) and is made from ABS with a grey cover. It is rated IP67 for dust and water protection and IK08 for impact resistance. The enclosure weighs 0.126 kg and is covered by a 1-year warranty.

Is this plastic enclosure suitable for outdoor use?

Yes, this Boxco S-Series enclosure is described as having an ultraviolet stabilizer added for outdoor usage. The product description notes that only minor color change is expected even after long-term use. Its IP67 rating also supports use in demanding environments where dust and water exposure are concerns.

What kinds of applications is this enclosure commonly used for?

This enclosure is intended to protect sensitive electronic instruments and other components that need a compact, sealed housing. Its anti-static material helps reduce static-related risk for sensitive equipment. The impact-resistant ABS body also makes it a practical choice for industrial and commercial control or protection applications.

How durable is the BC-AGS-060905 enclosure in harsh conditions?

This model combines an IP67 ingress protection rating with an IK08 impact rating, so it is built for strong resistance to dust, water, and external impact. The description also highlights high impact resistance to help prevent breakage during hole and press processing. That makes it a robust option for environments where enclosure durability matters.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 °C to 70 °C. That range makes it suitable for both low-temperature and moderately high-temperature environments. Buyers should confirm that their application stays within that stated range.

Does this enclosure support internal component mounting?

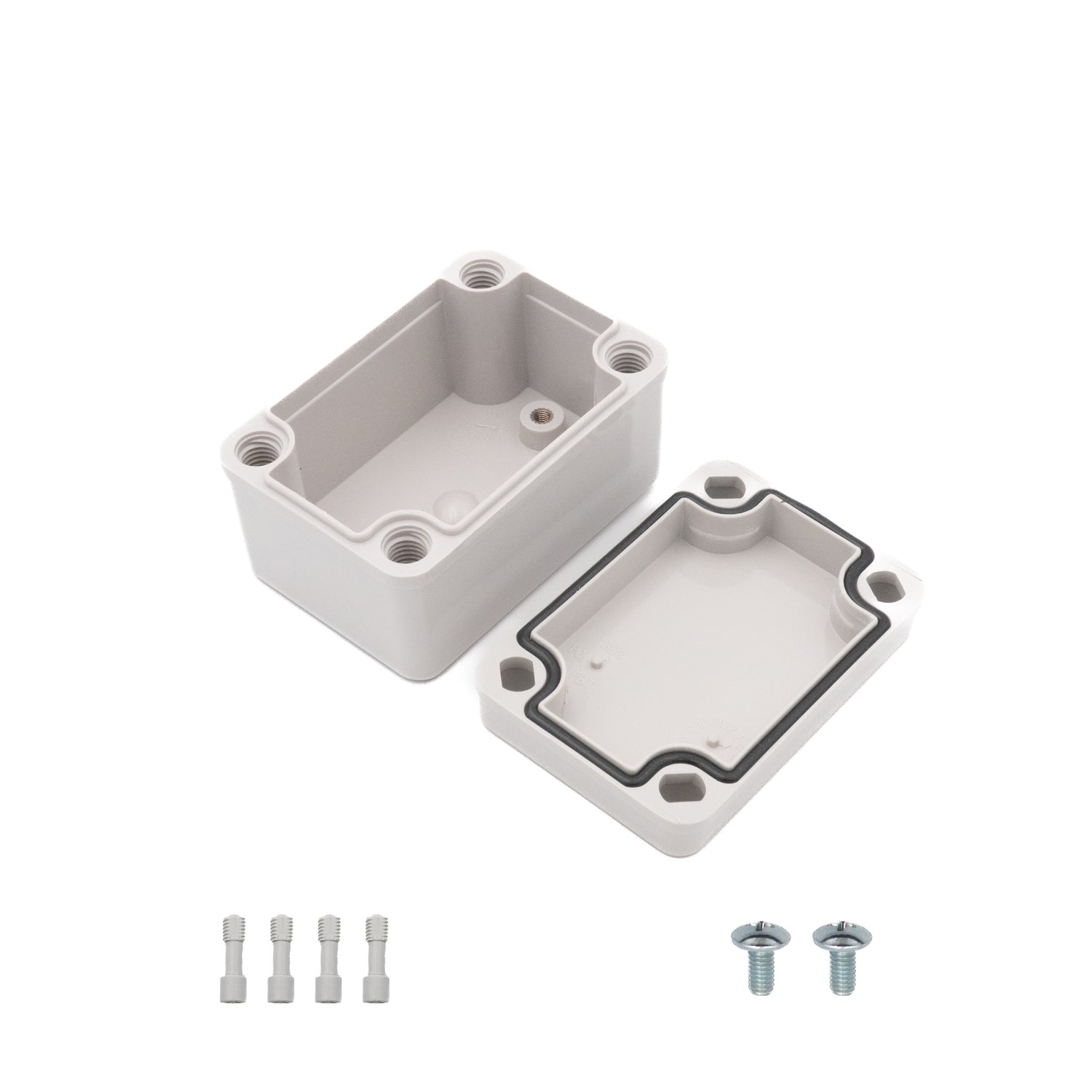

Yes, the product description states that it includes mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to help secure an internal mounting plate, DIN rail, or other equipment inside the enclosure. This is useful for applications that require organized internal hardware support.
