Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

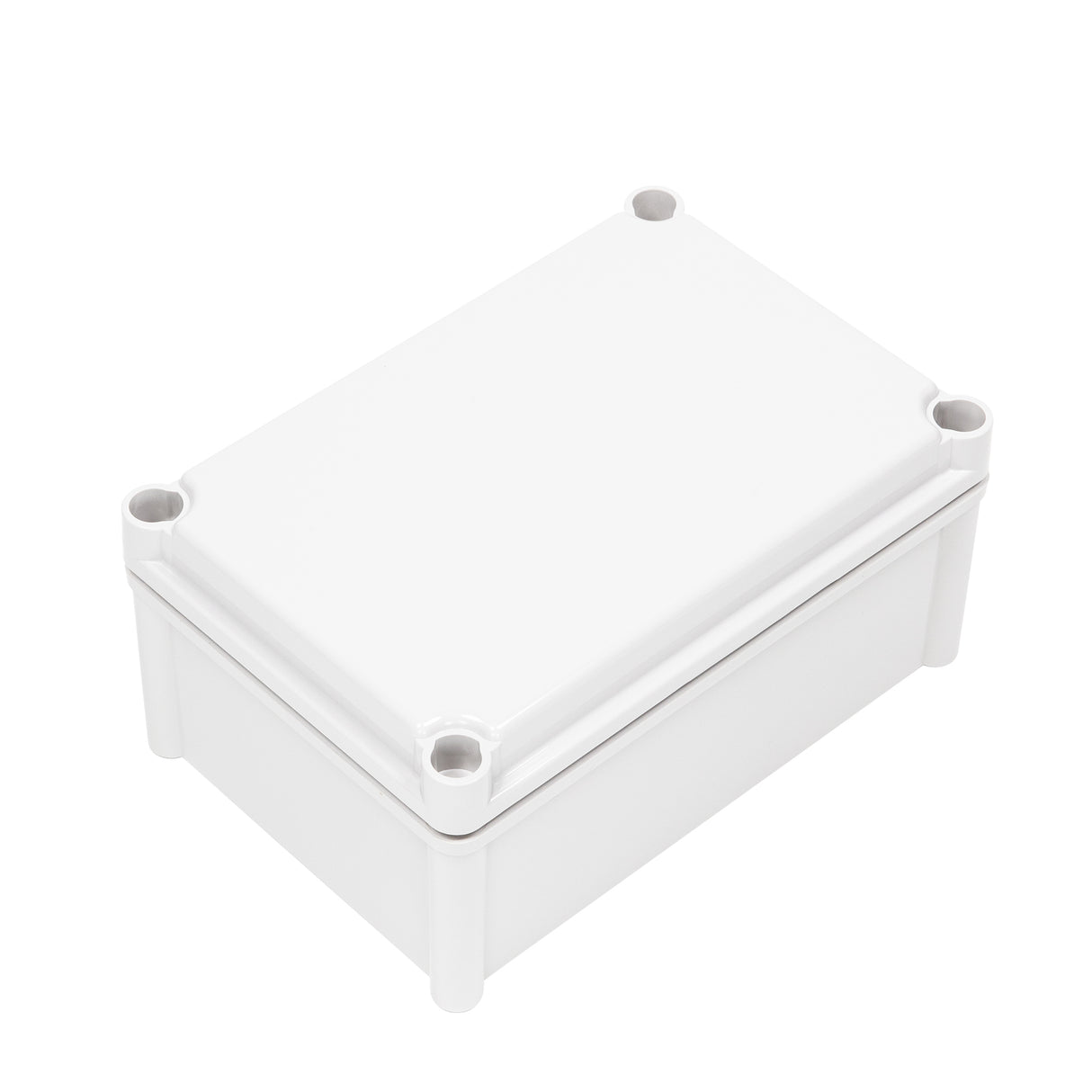

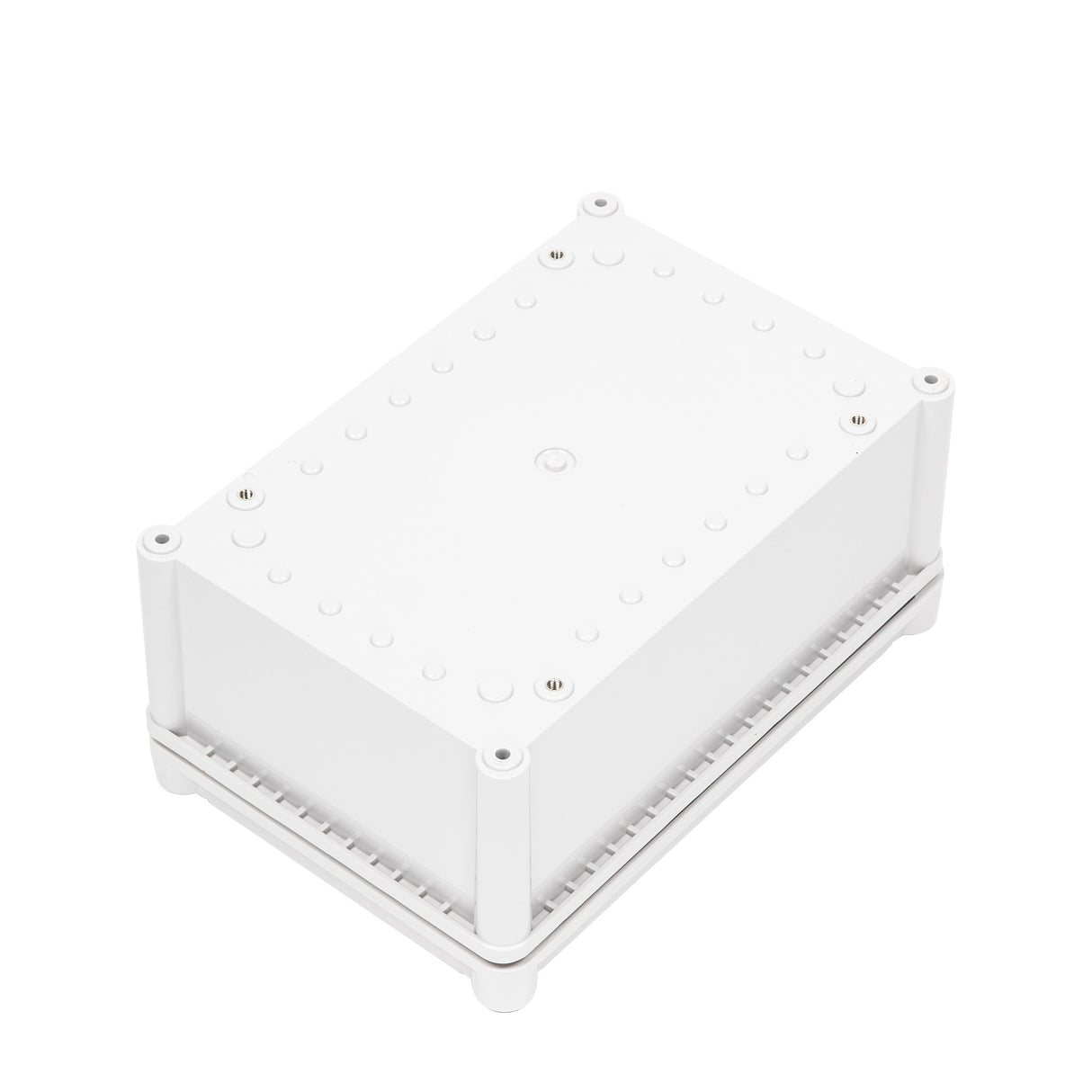

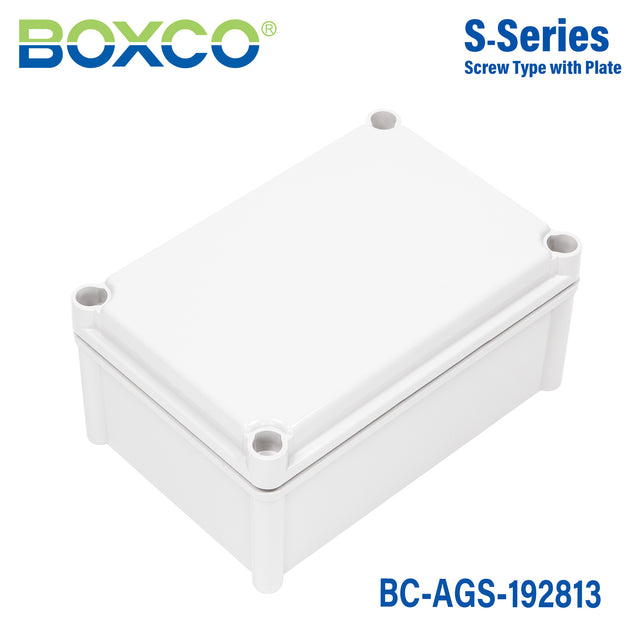

Boxco S-Series 190x280x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-192813
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-192813 is a 190×280×130 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-AGS-192813Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×280×130 mm (7.48×11.02×5.12 in)
Mounting plate dimension M1 × M2
159 × 249 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1928 PG (Plastic, PG type), 1928 P (Plastic, P type), 1928 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

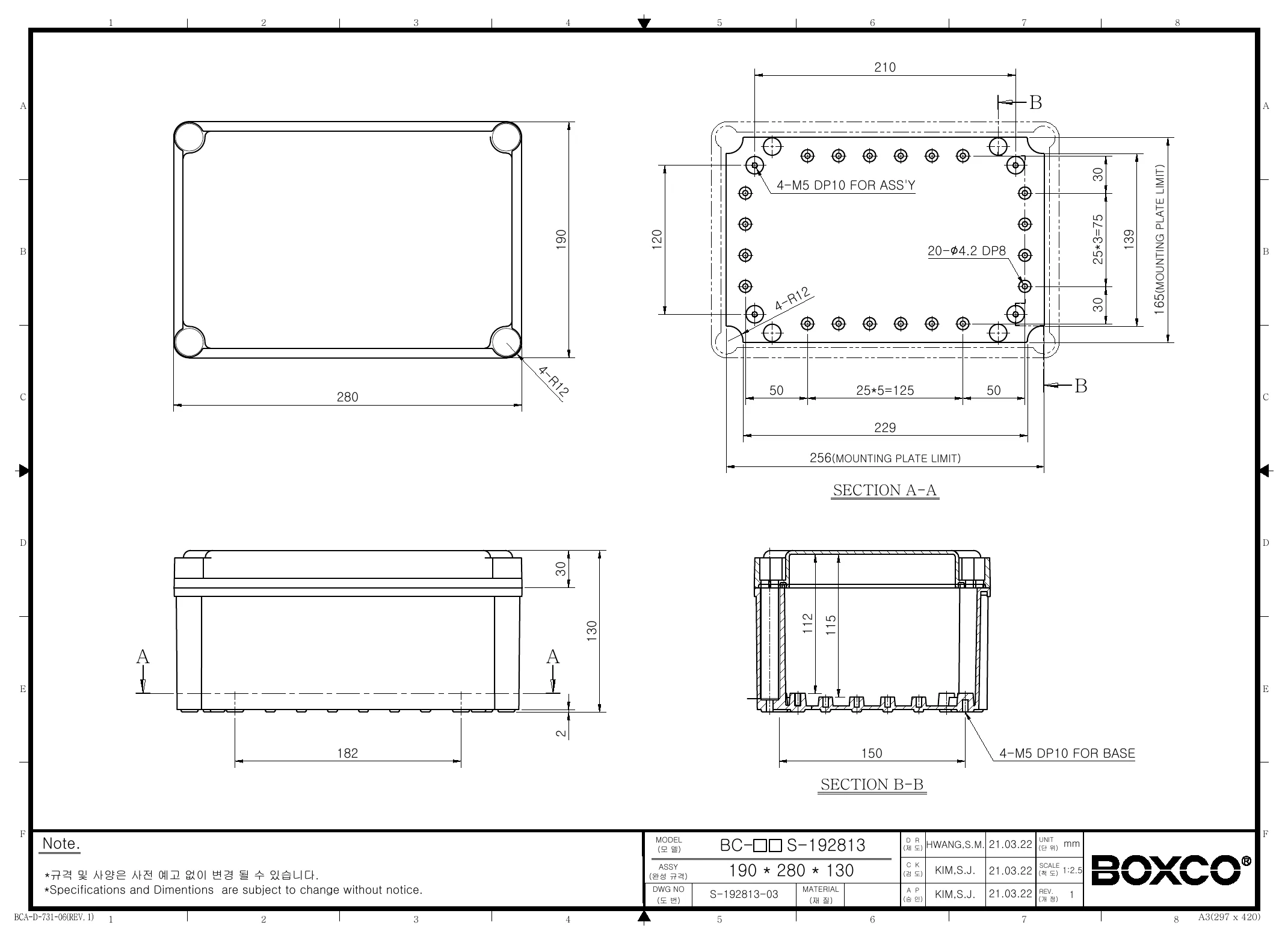

Technical drawings

BC-AGS-192813 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 190x280x130mm plastic enclosure suited for?

This enclosure is suited for protecting electronic components and control equipment in industrial, commercial, and outdoor environments where dust and water resistance matter. Its internal mounting plate attachment points and pre-molded screw nuts make it appropriate for housing equipment that needs secure internal support inside the box.

Is this enclosure suitable for outdoor use?

Yes, this model is designed for outdoor use. The description states that an ultraviolet stabilizer is added to help protect the enclosure outdoors and reduce visible color change over long periods of use.

How well does this enclosure protect against water, dust, and impact?

This model is rated IP67 and IK08. That means it is built for strong dust and water resistance along with solid impact resistance for demanding environments.

What are the size, material, and cover style of this enclosure?

This Boxco S-Series enclosure measures 7.48 x 11.02 x 5.12 inches, which is 190x280x130mm. It is made from ABS plastic and comes with a grey cover in a screw type design.

What temperature range can this enclosure handle?

This enclosure is specified for use from -40 degrees C to 70 degrees C. That range makes it a practical choice for many indoor and outdoor industrial environments with varying temperatures.

Does this enclosure support mounting internal equipment securely?

Yes, the enclosure includes internal mounting plate attachment points designed to hold a mounting plate tightly using brass inserted injection molding. It also features pre-molded mounting screw nuts for securing compatible internal hardware such as DIN rail-based equipment.
