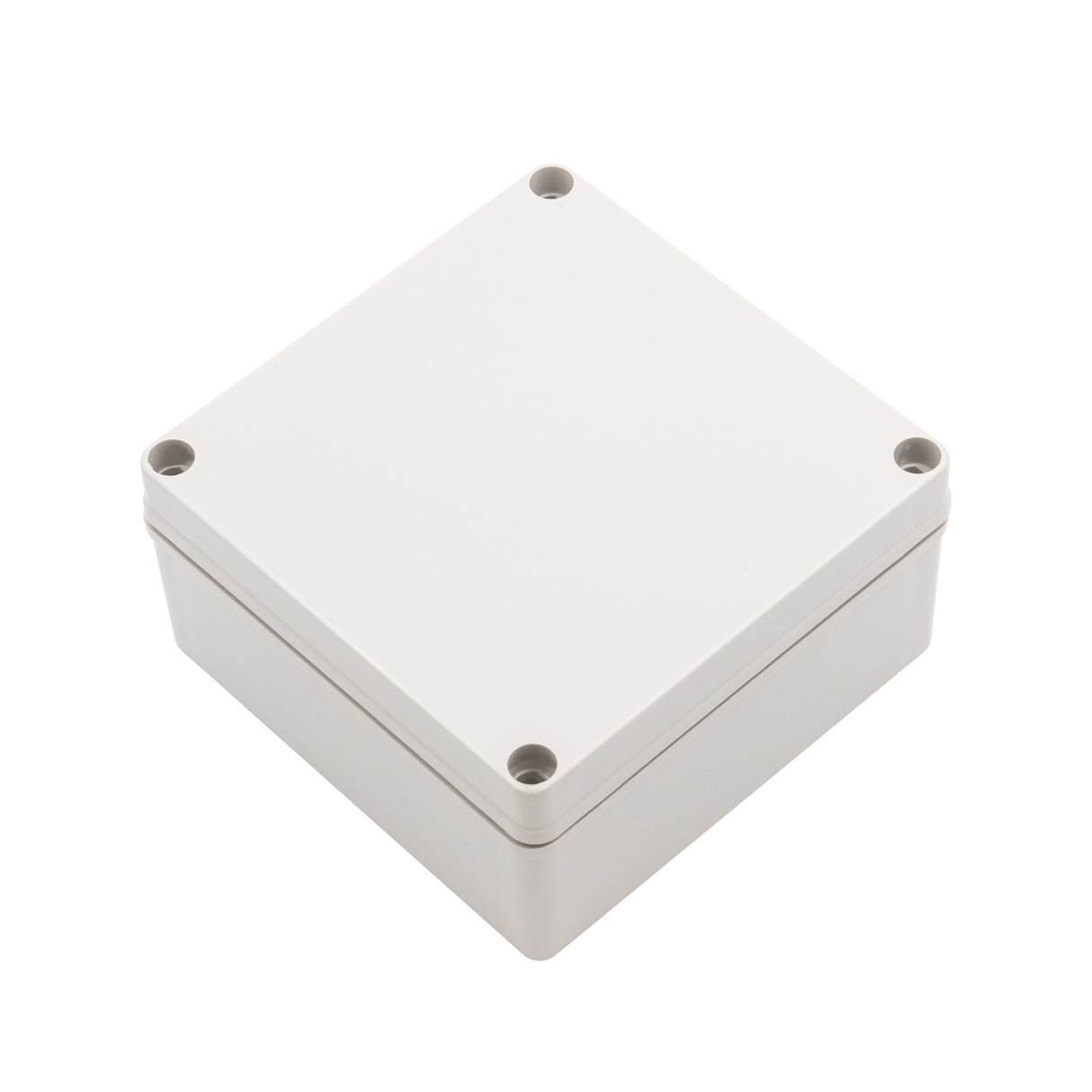

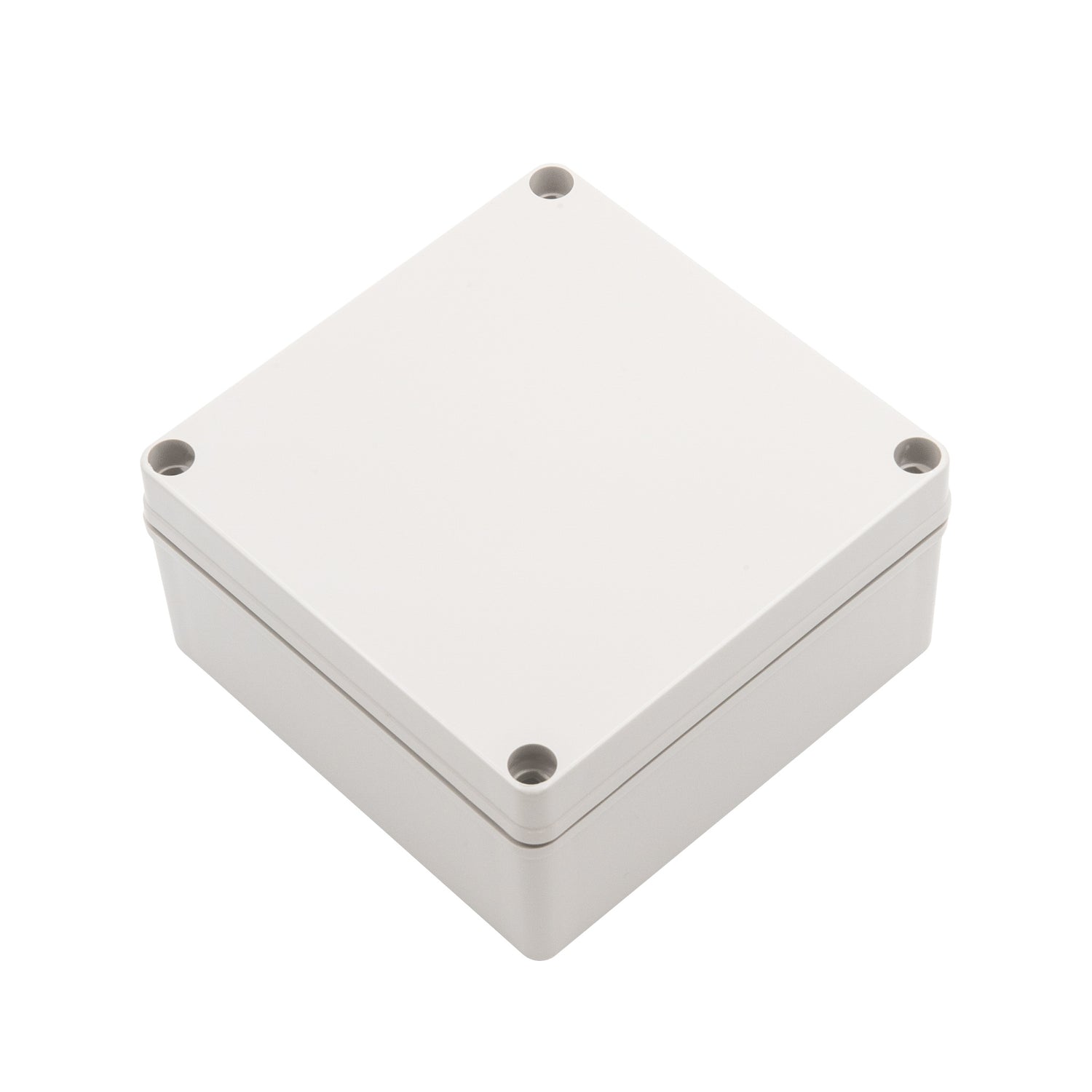

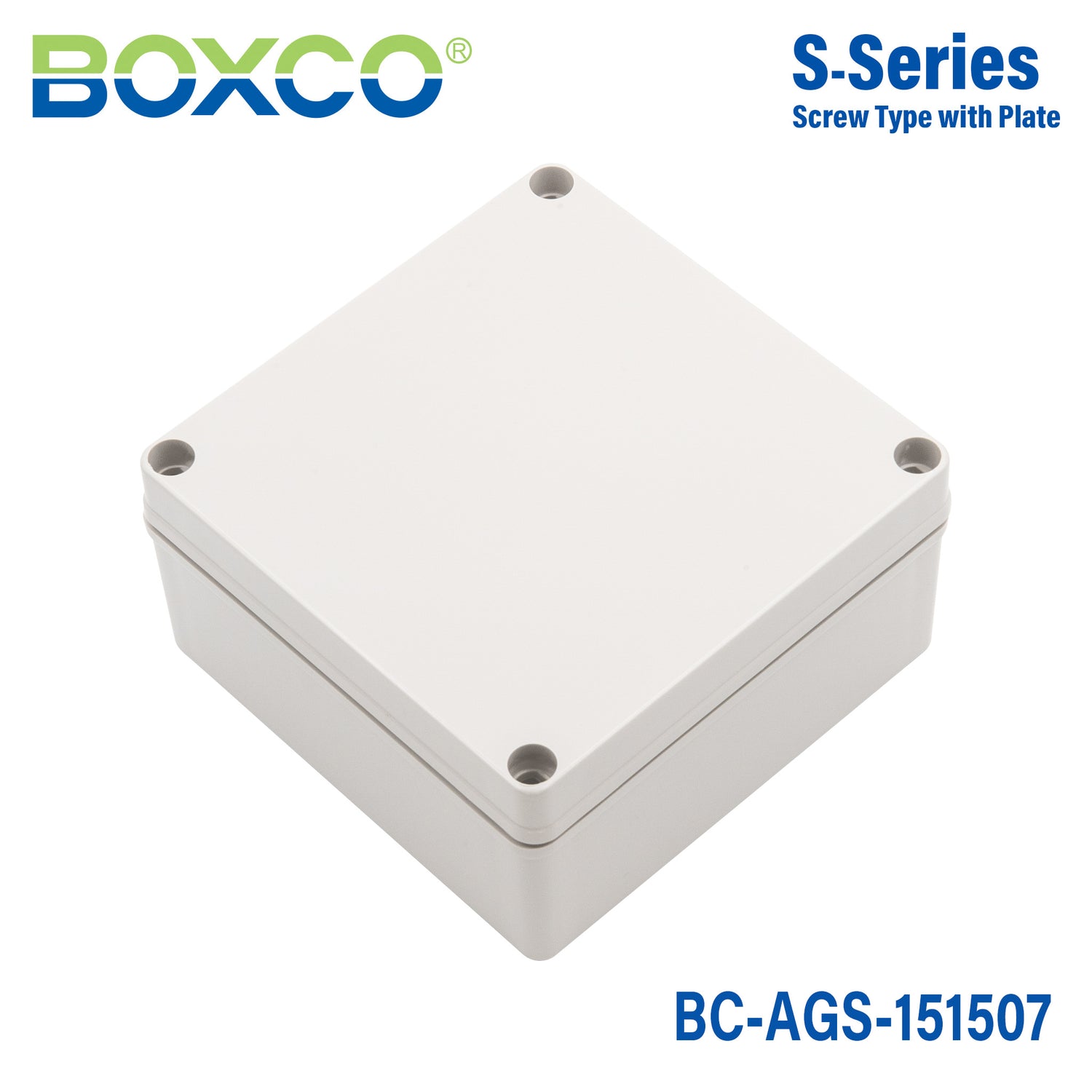

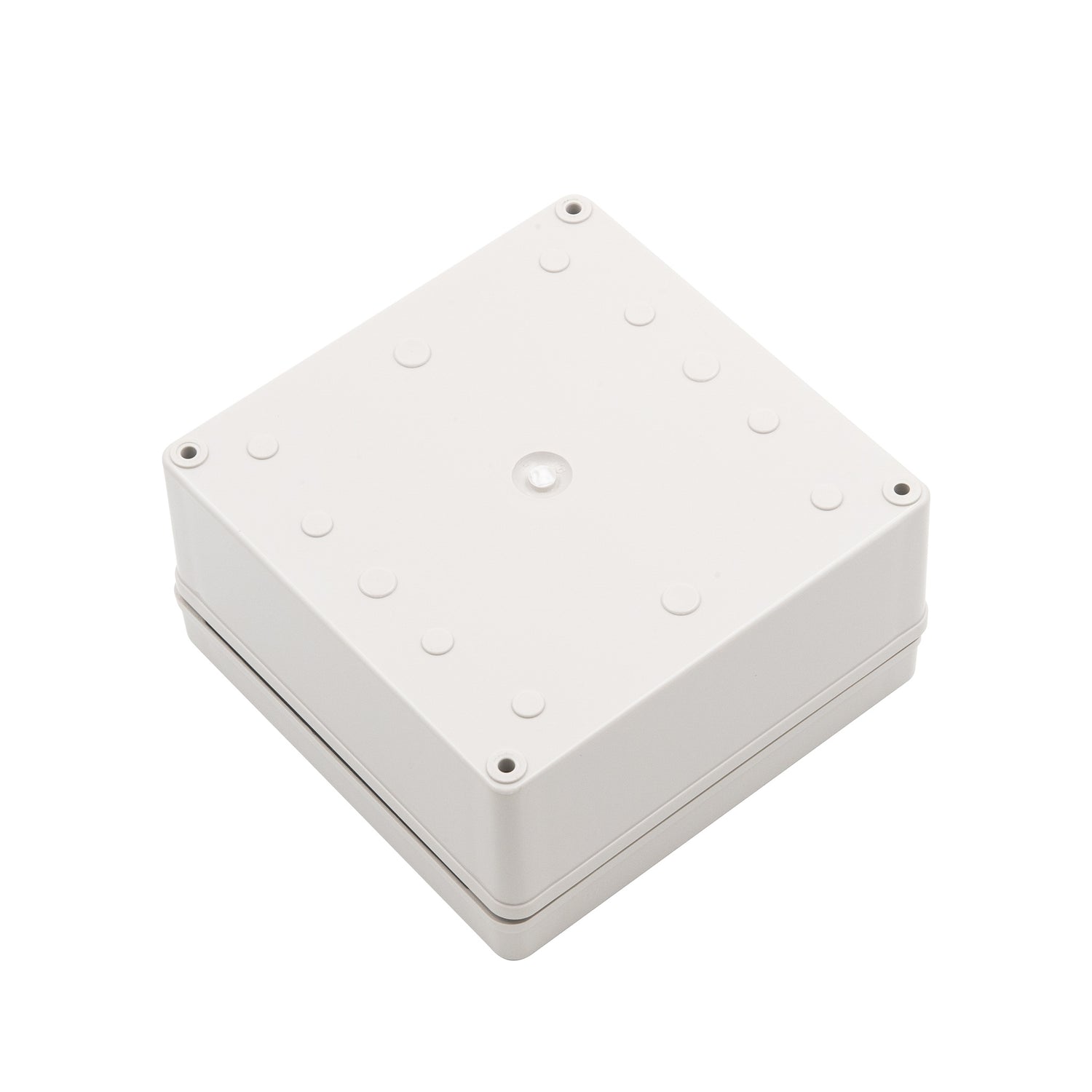

Boxco S-Series 150x150x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-151507
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-151507 is a 150×150×75 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-151507Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×150×75 mm (5.91×5.91×2.95 in)
Mounting plate dimension M1 × M2
123 × 123 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1515 G (Plastic, G type), 1515 P (Plastic, P type), 1515 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

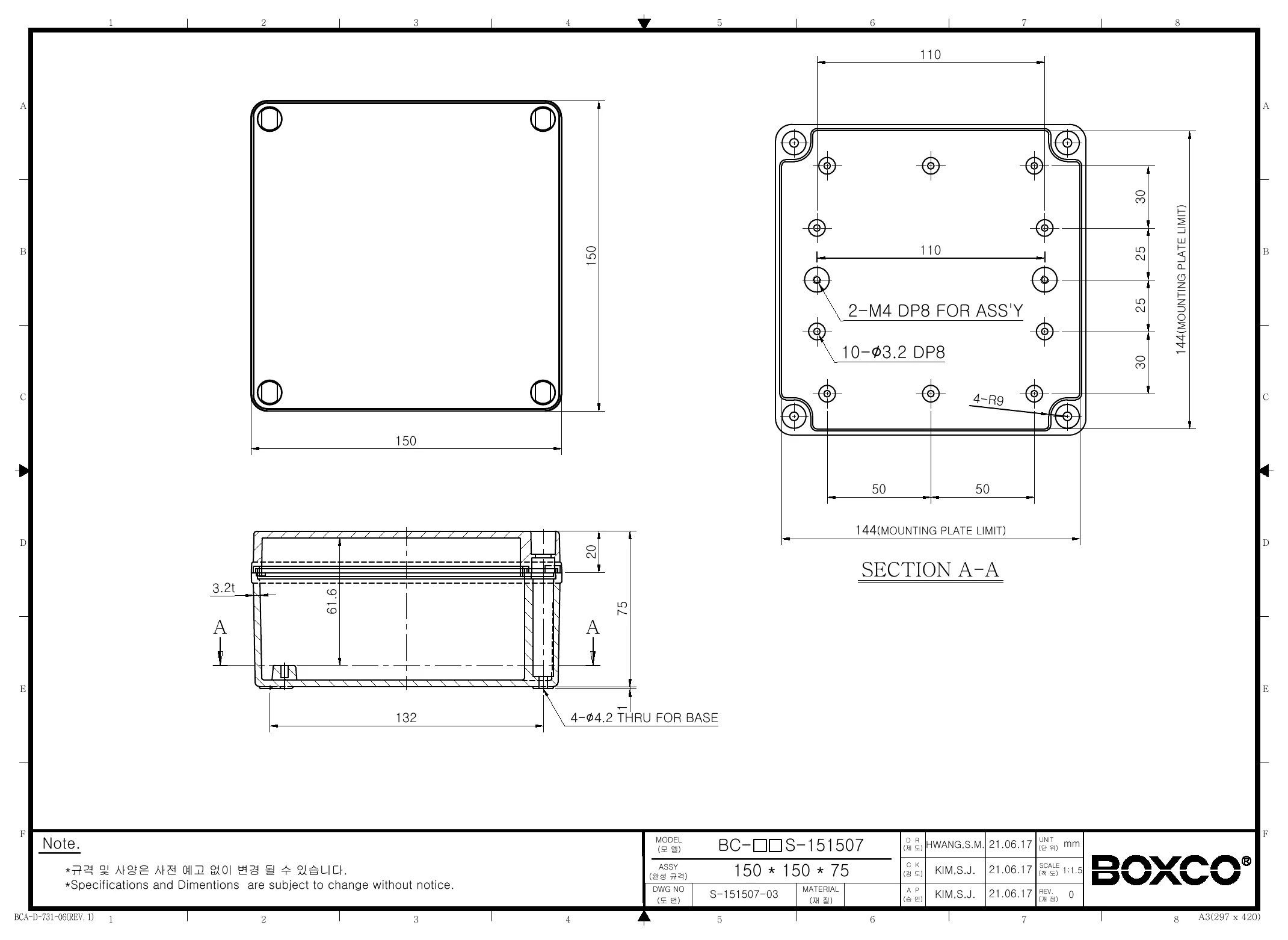

BC-AGS-151507 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco S-Series BC-AGS-151507 enclosure?

This model is a screw-type plastic enclosure made from ABS with a grey cover. Its external size is 5.91 x 5.91 x 2.95 inches (150 x 150 x 75 mm), and it is rated IP67 and IK08. The listed weight is 0.346 kg, and the operating temperature range is -40°C to 70°C.

Is this enclosure suitable for outdoor or washdown environments?

This enclosure is designed for demanding environments because it carries an IP67 rating for dust-tight and water-resistant protection. Boxco also states that the S-Series includes an ultraviolet stabilizer to help reduce visible color change during long-term outdoor use. Buyers should still confirm the overall application requirements match the enclosure size, material, and exposure conditions.

What kinds of applications is this plastic enclosure commonly used for?

This model is suited to protecting control components, instrumentation, and other electronics that need a sealed non-metallic housing. Boxco specifically notes anti-static material use to help protect sensitive electronic instruments from static electricity. Its combination of ABS construction, IP67 sealing, and compact square format makes it practical for industrial and commercial enclosure use where corrosion resistance and low weight matter.

How durable is the BC-AGS-151507 for industrial use?

The enclosure is made from high impact resistant ABS and carries an IK08 impact rating. Boxco also highlights molded thread features, brass-inserted mounting plate attachment points, and pre-molded screw nuts to support internal equipment mounting. These details make it better suited to tougher service than a basic light-duty plastic box.

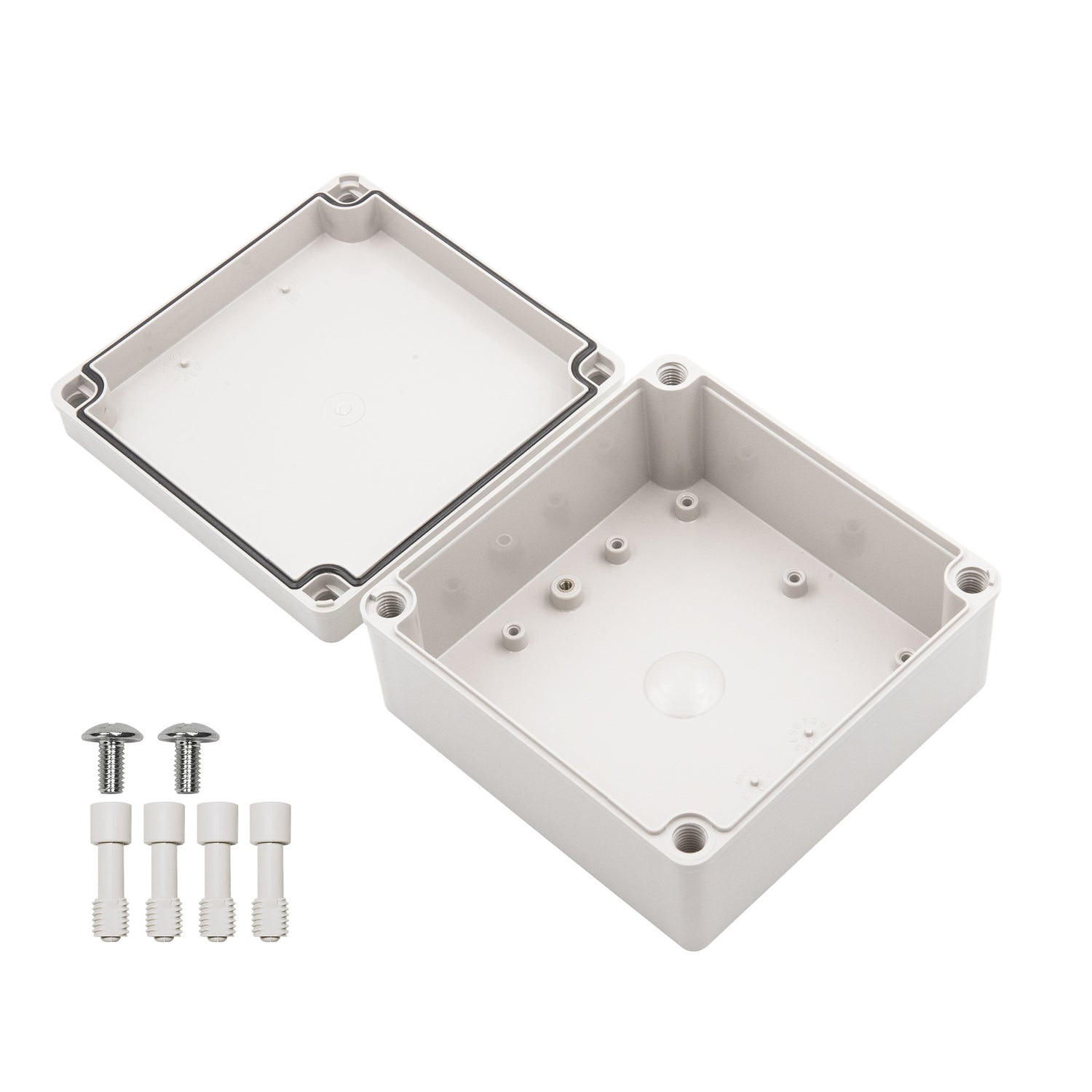

What internal mounting features does this enclosure include?

Boxco specifies internal mounting plate attachment points that can be fixed to brass inserted injection molding for heavier installed equipment. The enclosure also includes pre-molded mounting screw nuts so DIN rail or other equipment can be secured inside. These built-in features help when compatibility with internal mounting hardware is important.

What warranty and operating temperature range does this model have?

The stated warranty period for this enclosure is 1 year. Its specified operating temperature range is -40°C to 70°C, which covers many indoor and outdoor industrial environments. Those limits should be checked against the temperature demands of the intended application.
