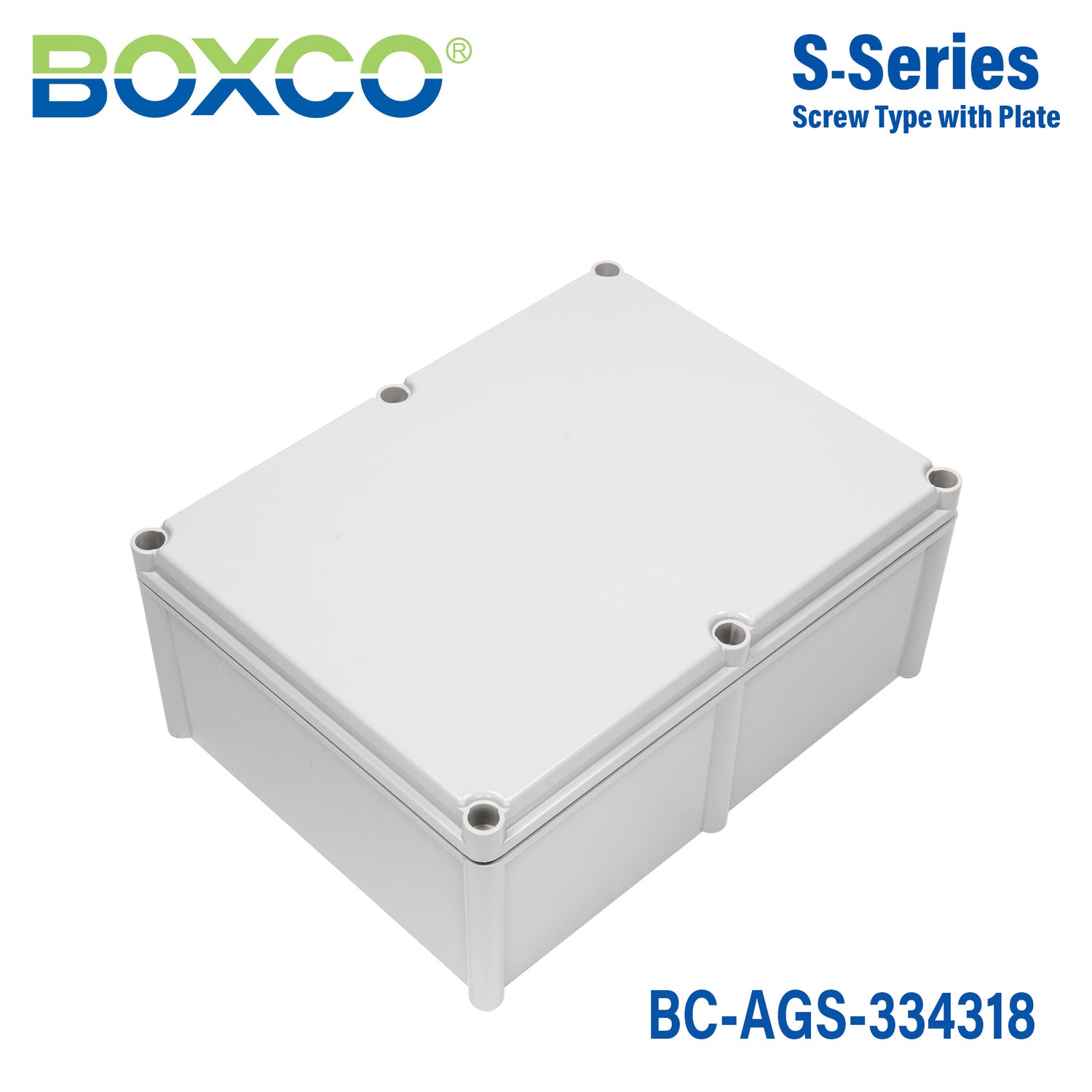

Boxco S-Series 330x430x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU:

BC-AGS-334318

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

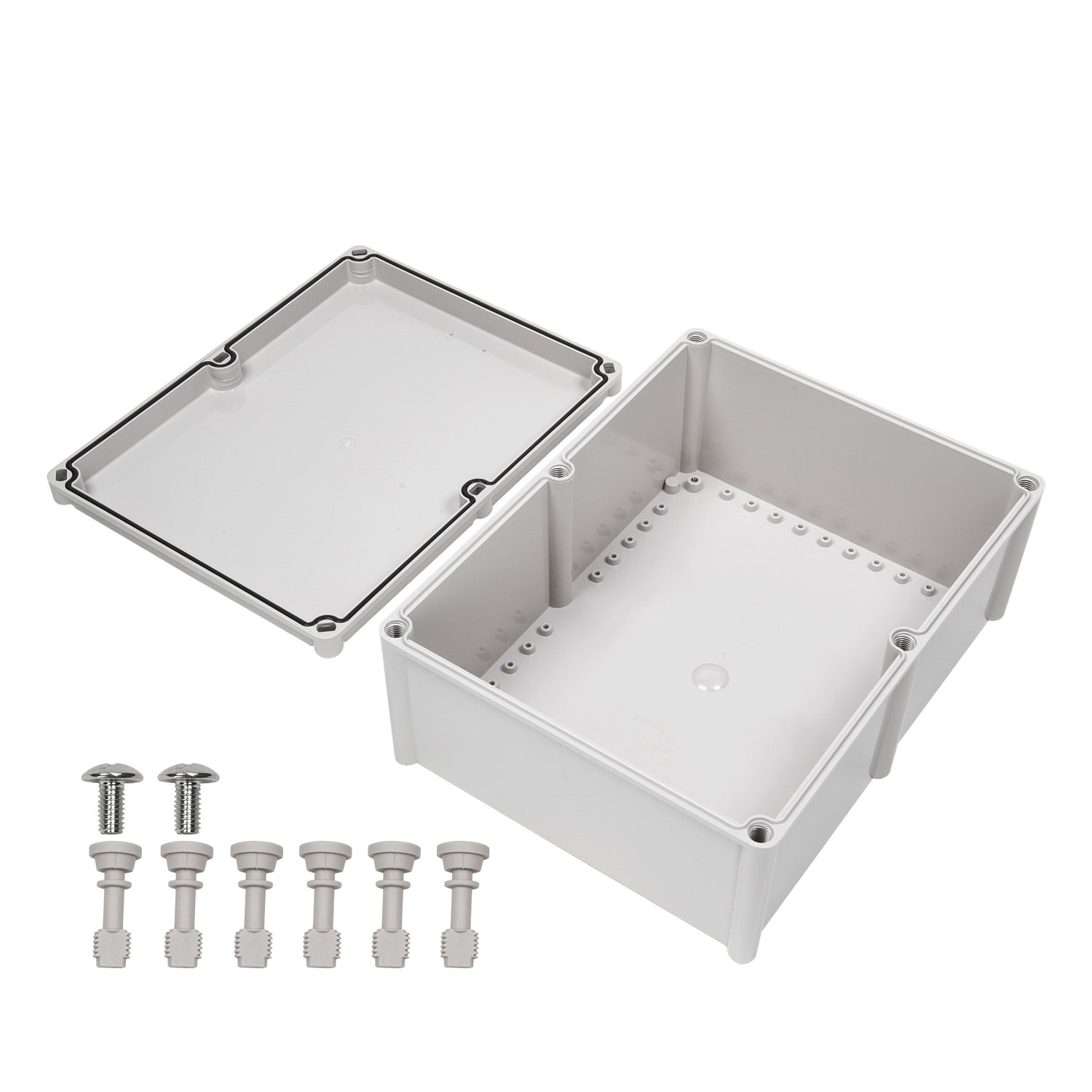

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

33 cm
Width

43 cm
Height

18 cm
Weight

2.25 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco S-Series BC-AGS-334318 enclosure suited for?

This enclosure is designed to protect electrical or electronic equipment in industrial and commercial environments where a durable non-metallic housing is needed. Its high-impact ABS construction, IP67 sealing, and IK08 impact rating make it a practical choice for outdoor or washdown-prone locations where dust and water resistance matter.

What are the dimensions of this enclosure?

The BC-AGS-334318 measures 12.99 x 16.93 x 7.09 inches, which corresponds to 330 x 430 x 180 mm. This larger format provides room for internal components while still using a screw-type cover design for secure closure.

Is this plastic enclosure suitable for outdoor environments?

Yes. Boxco states that the S-Series includes an ultraviolet stabilizer to help protect the enclosure during outdoor use and reduce visible color change over time. Its IP67 rating also supports use in environments exposed to dust and water.

How durable is the BC-AGS-334318 against impact and harsh conditions?

This model is made from high-impact-resistant ABS and carries an IK08 impact rating. It is also described as resistant to breakage during hole and press processing, which supports use in demanding industrial settings.

What internal mounting features does this enclosure include?

The enclosure includes mounting plate attachment points with brass inserted injection molding to help secure heavier internal equipment. It also has pre-molded mounting screw nuts that can be used for DIN rail or other internal hardware.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 °C to 70 °C. That makes it suitable for a wide range of indoor and outdoor industrial environments within those limits.

What distinguishes this Boxco S-Series model from basic general-purpose enclosures?

This model combines several protective features in one enclosure, including IP67 sealing, IK08 impact resistance, UV-stabilized material for outdoor use, and anti-static material for sensitive electronic instruments. It also includes molded attachment points and screw nuts that add flexibility for internal equipment mounting.
