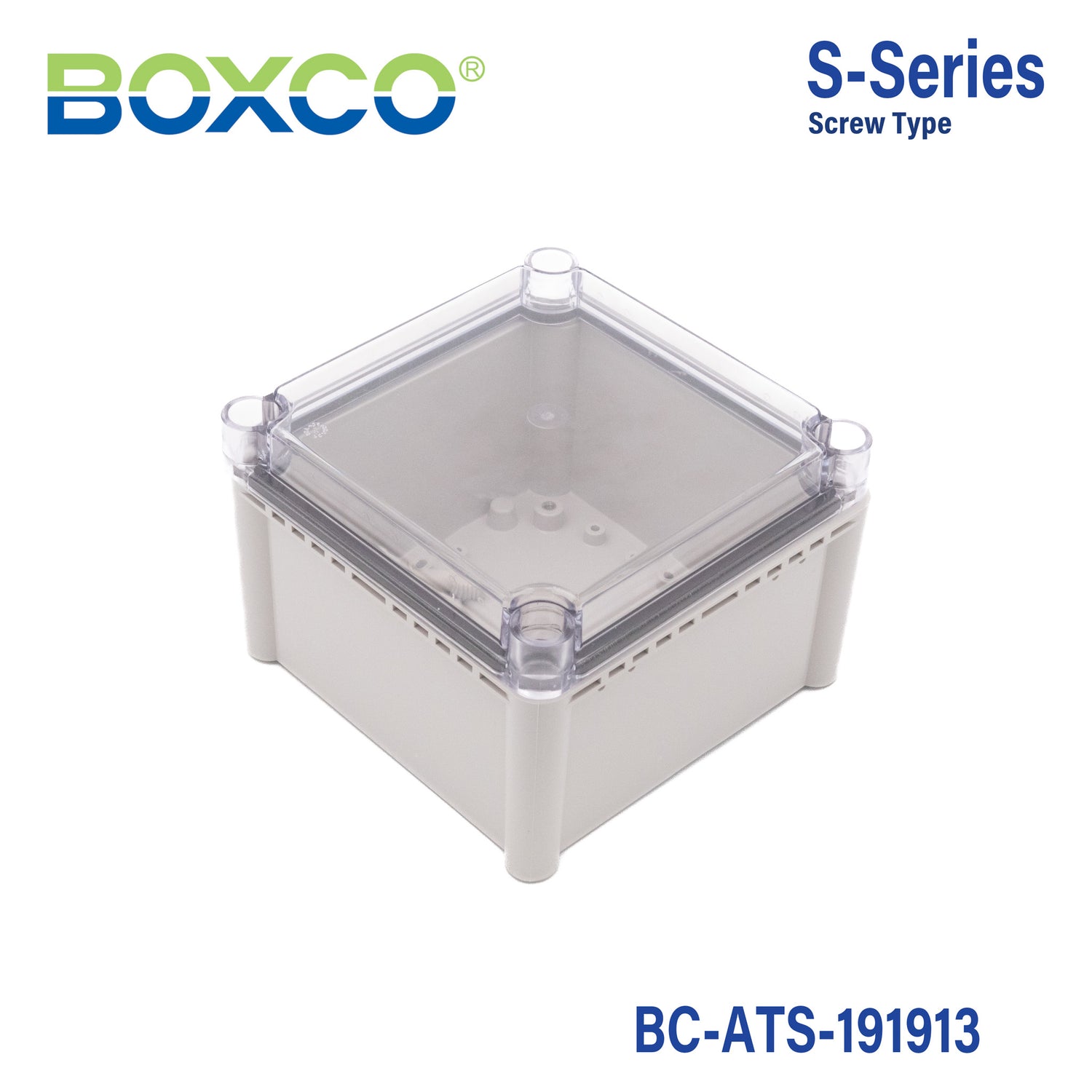

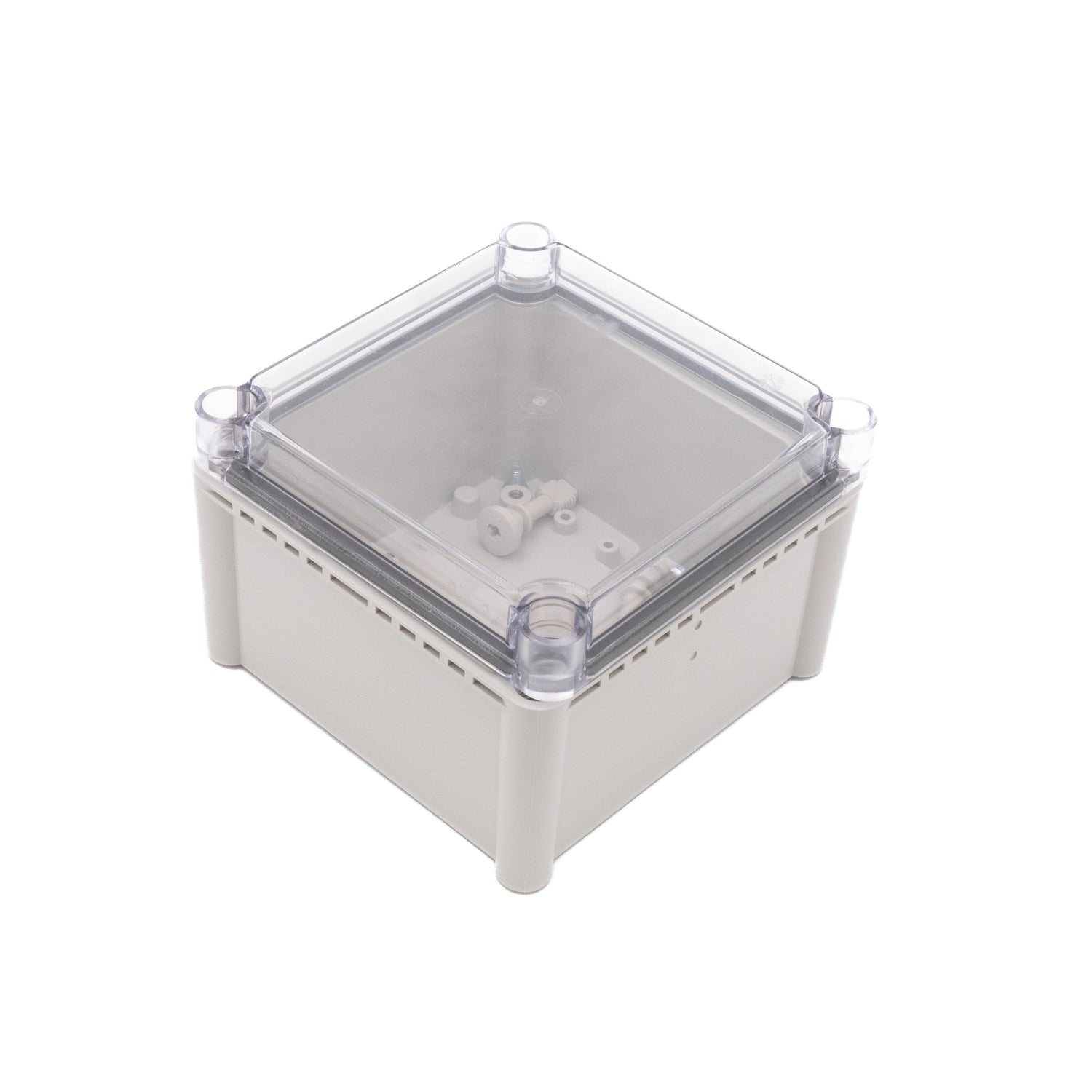

Boxco S-Series 190x190x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-191913
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATS-191913 is a 190×190×130 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-ATS-191913Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×190×130 mm (7.48×7.48×5.12 in)
Mounting plate dimension M1 × M2
159 × 159 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1919 P (Plastic, P type), 1919 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

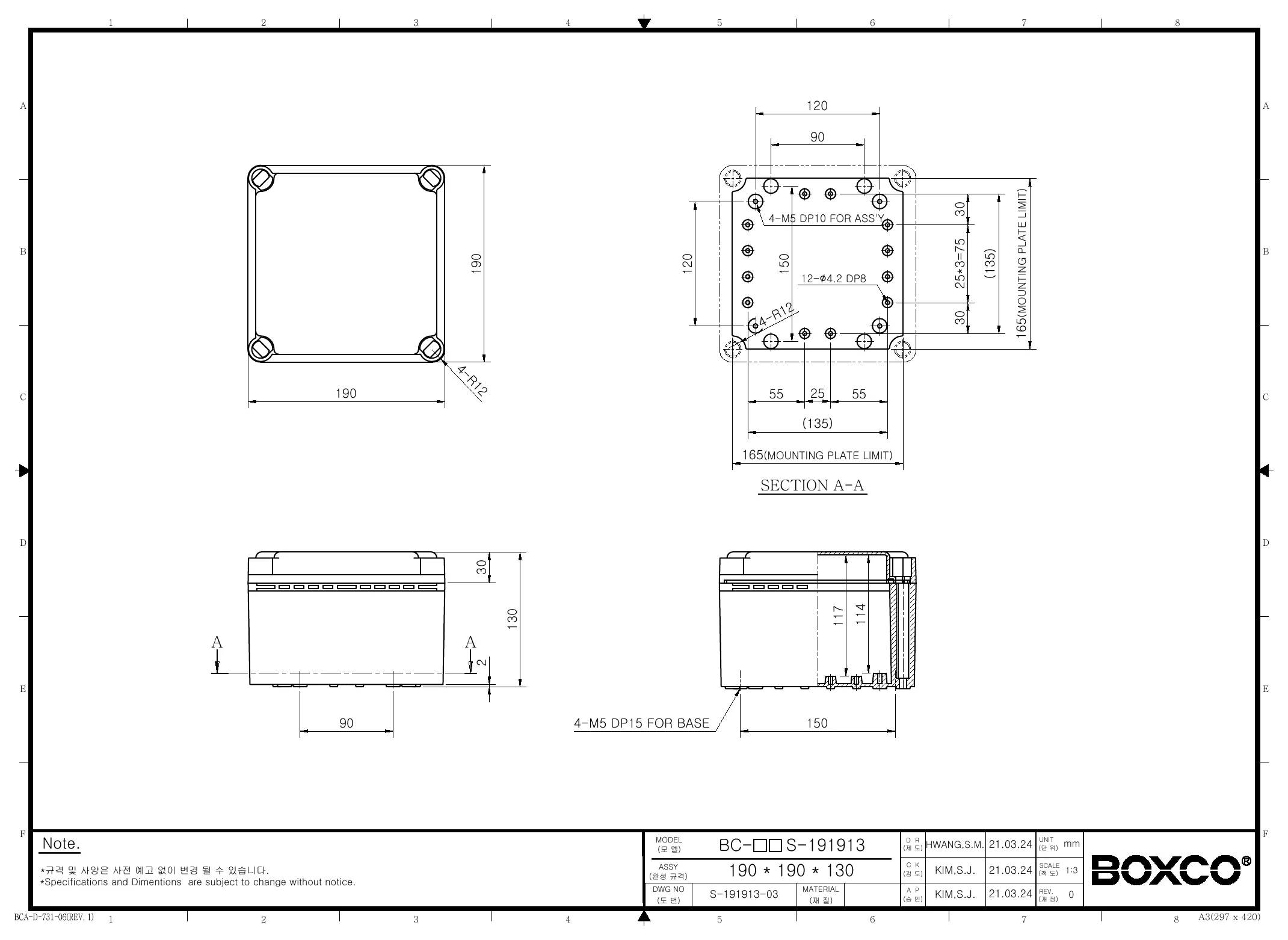

BC-ATS-191913 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure typically used for?

This enclosure is designed to protect electronic components and instruments in industrial and commercial applications where a sealed plastic housing is needed. Its anti-static material and high-impact ABS construction make it a practical choice for housing sensitive equipment in demanding environments.

What are the key specifications of the BC-ATS-191913 enclosure?

This model measures 7.48 x 7.48 x 5.12 inches (190 x 190 x 130 mm) and is made from ABS with a transparent screw-type cover. It is rated IP67 for dust and water protection, IK08 for impact resistance, weighs 1.36 kg, and has an operating temperature range of -40 C to 70 C.

Is this enclosure suitable for outdoor or harsh environments?

Yes, this Boxco S-Series enclosure includes an ultraviolet stabilizer to support outdoor use and reduce noticeable color change over time. Its IP67 rating helps protect against dust and water ingress, while the IK08 impact rating supports use in tougher environments.

Does this enclosure support mounting internal components securely?

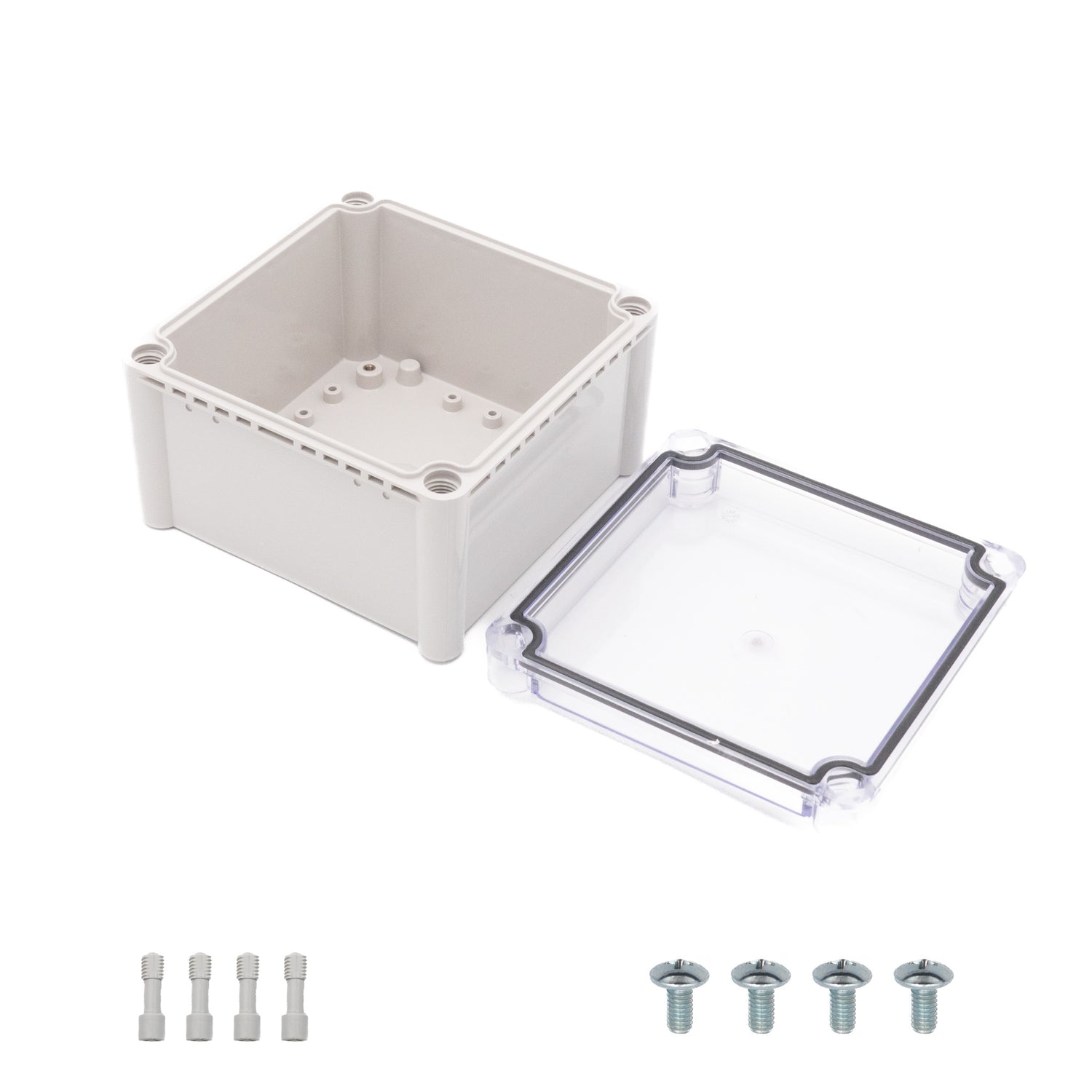

Yes, the enclosure includes internal mounting plate attachment points with brass inserted injection molding to help secure heavier equipment inside. It also features pre-molded mounting screw nuts for attaching compatible internal hardware such as DIN rail-based components.

What makes this model different from a basic plastic enclosure?

This model combines ABS construction, anti-static material, UV stabilization, a transparent cover, and both IP67 and IK08 ratings in one enclosure. It also includes built-in features such as gasket sealing, molded cover bolt attachment points, and internal mounting support that may not be present on simpler enclosures.

Does the transparent cover affect the enclosure's protection rating?

This model is specified with a transparent cover while still carrying an IP67 and IK08 rating. That means the cover is part of the enclosure's designed protection against dust, water ingress, and external impact for this specific model.
