Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

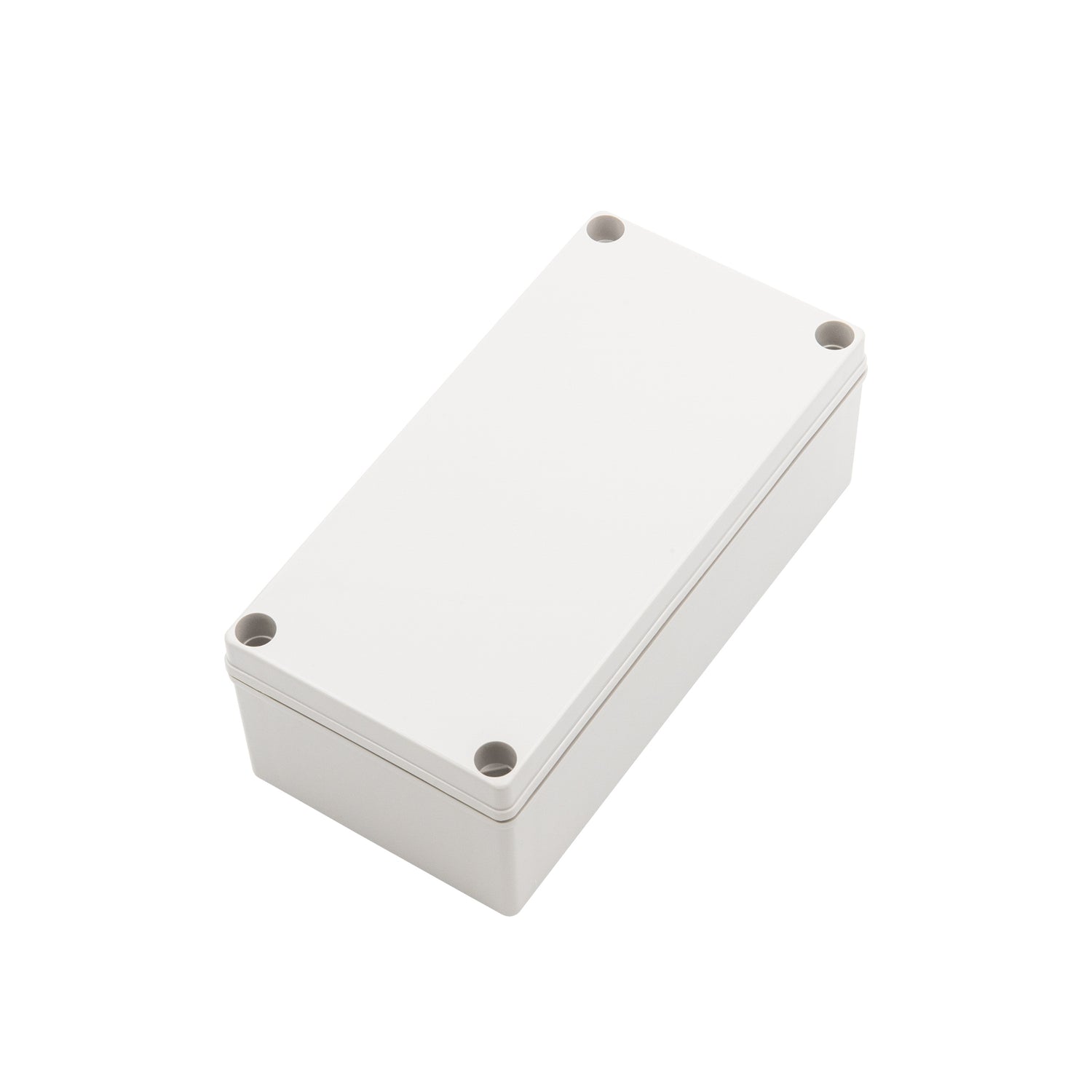

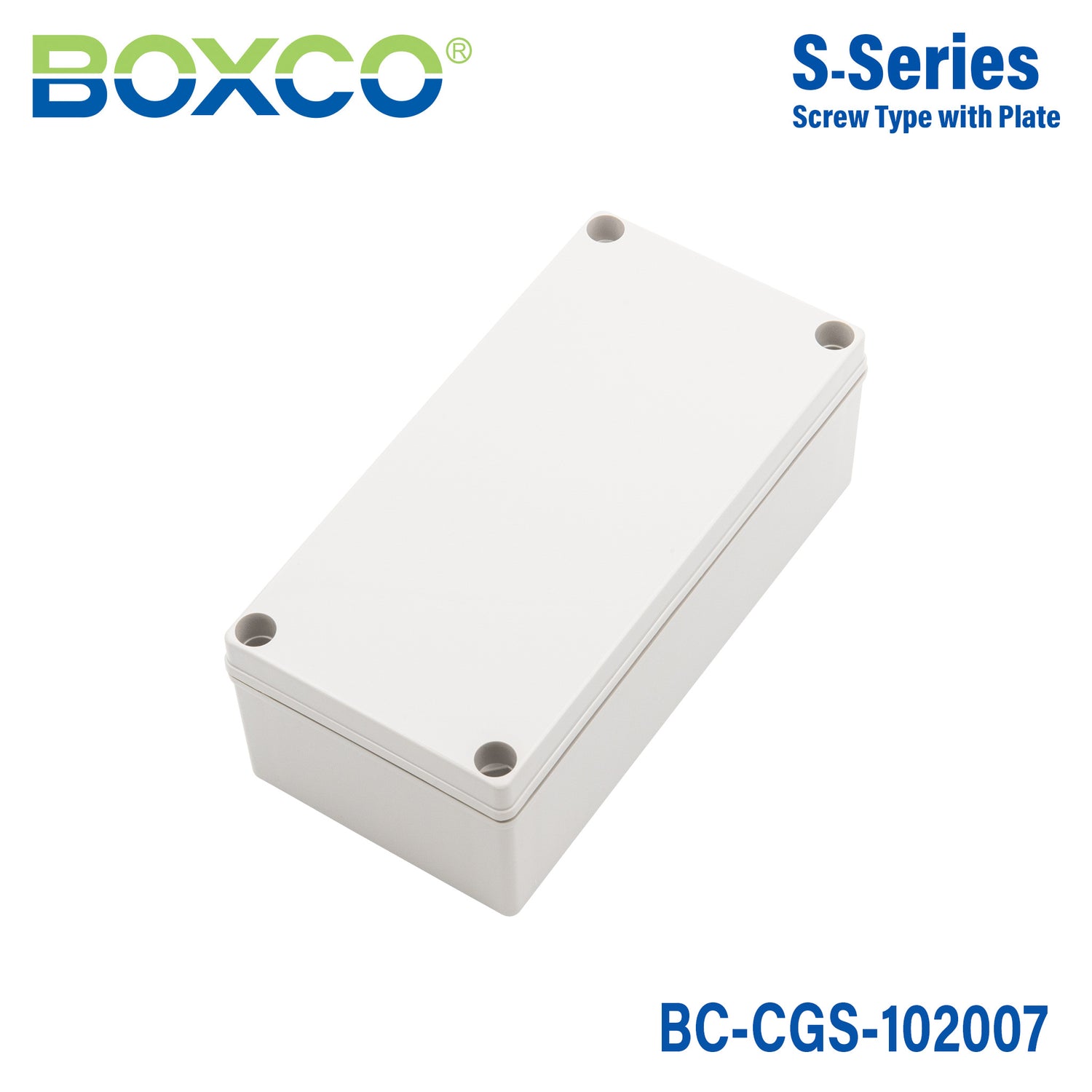

Boxco S-Series 100x200x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-102007
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGS-102007 is a 100×200×70 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-102007Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×200×70 mm (3.94×7.87×2.76 in)
Mounting plate dimension M1 × M2
77 × 176 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1020 P (Plastic, P type), 1020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

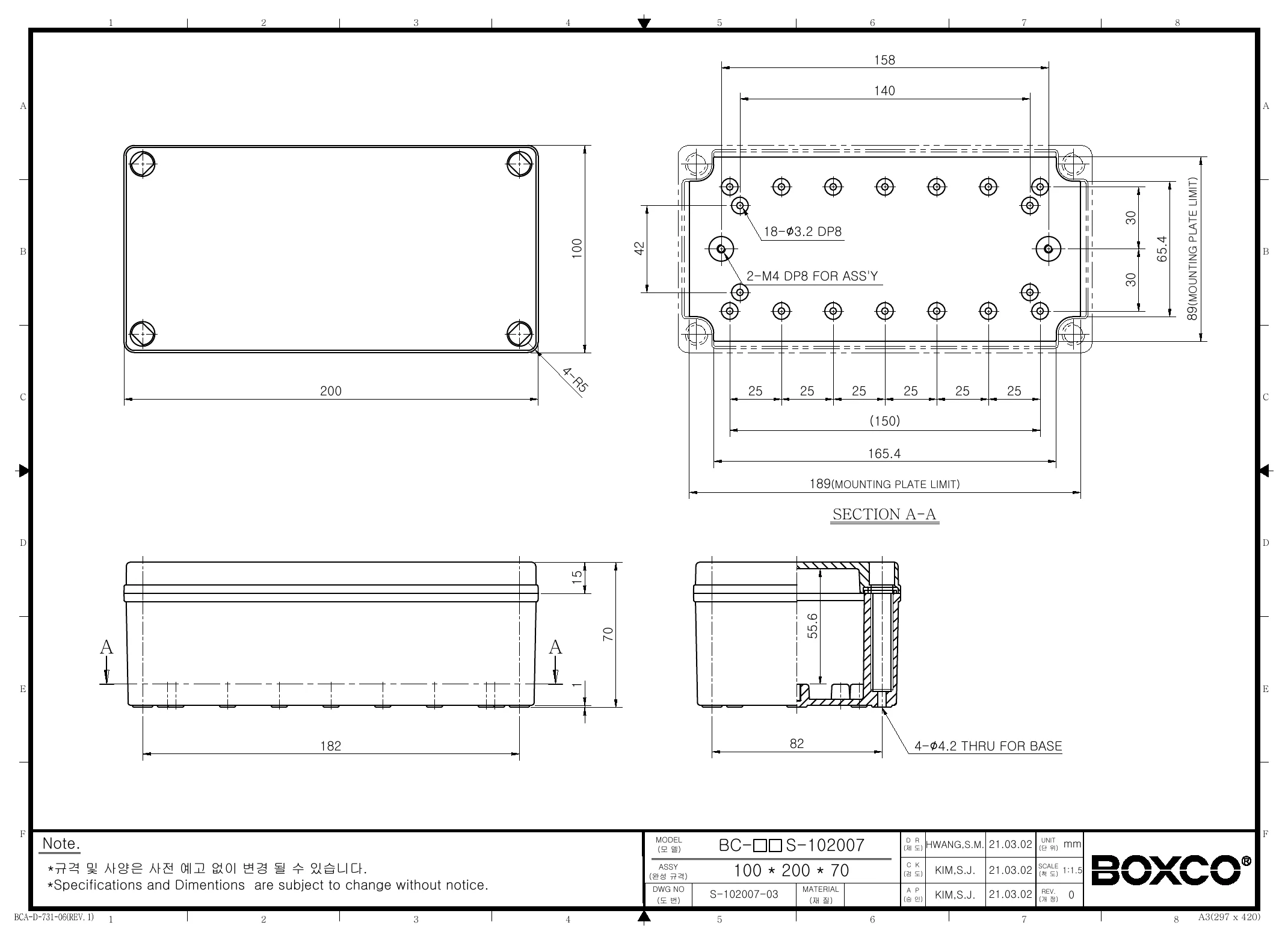

Technical drawings

BC-CGS-102007 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 100x200x70mm plastic enclosure suited for?

This enclosure is designed for protecting electronic components and sensitive instruments in industrial or commercial equipment. Its IP67 sealing, IK08 impact rating, and anti-static material make it a practical choice for control, monitoring, and housed electronics that need durable environmental protection.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time. The IP67 rating also supports strong protection against dust and water ingress in demanding environments.

What are the key environmental and durability ratings for this model?

This model is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. It also has an operating temperature range of -40°C to 110°C, which supports use across a wide range of conditions.

What material is used for this Boxco enclosure?

This version is made from PC material and includes anti-static properties for protecting sensitive electronic instruments from static electricity. Boxco also describes it as high-impact resistant for better durability during use and processing.

What size is this enclosure, and how much does it weigh?

The enclosure measures 3.94 x 7.87 x 2.76 inches, which corresponds to 100 x 200 x 70 mm. Its listed weight is 0.4500 kg.

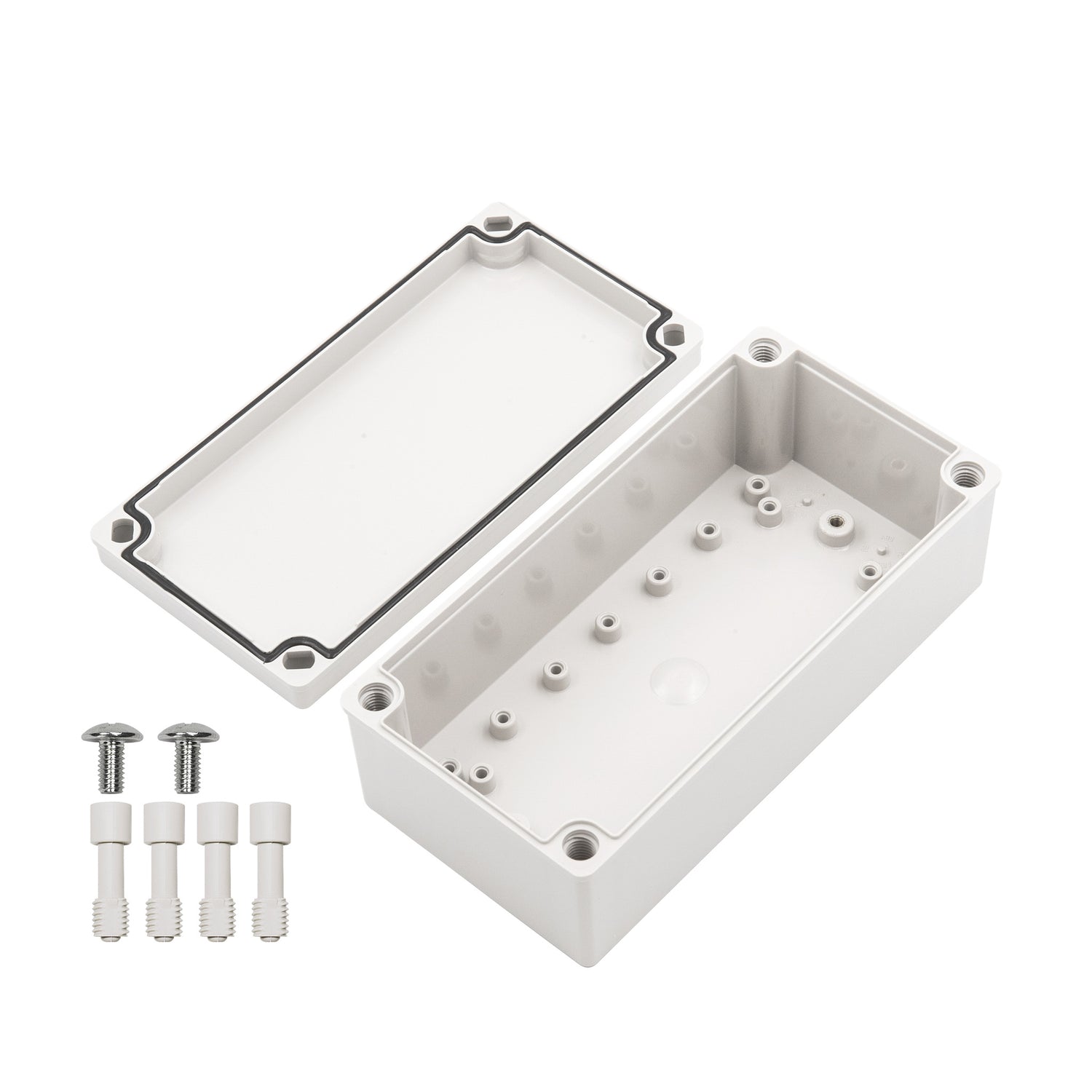

What features help support internal component mounting in this enclosure?

The enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to support secure mounting of internal hardware such as a mounting plate or DIN rail-related components.
