Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

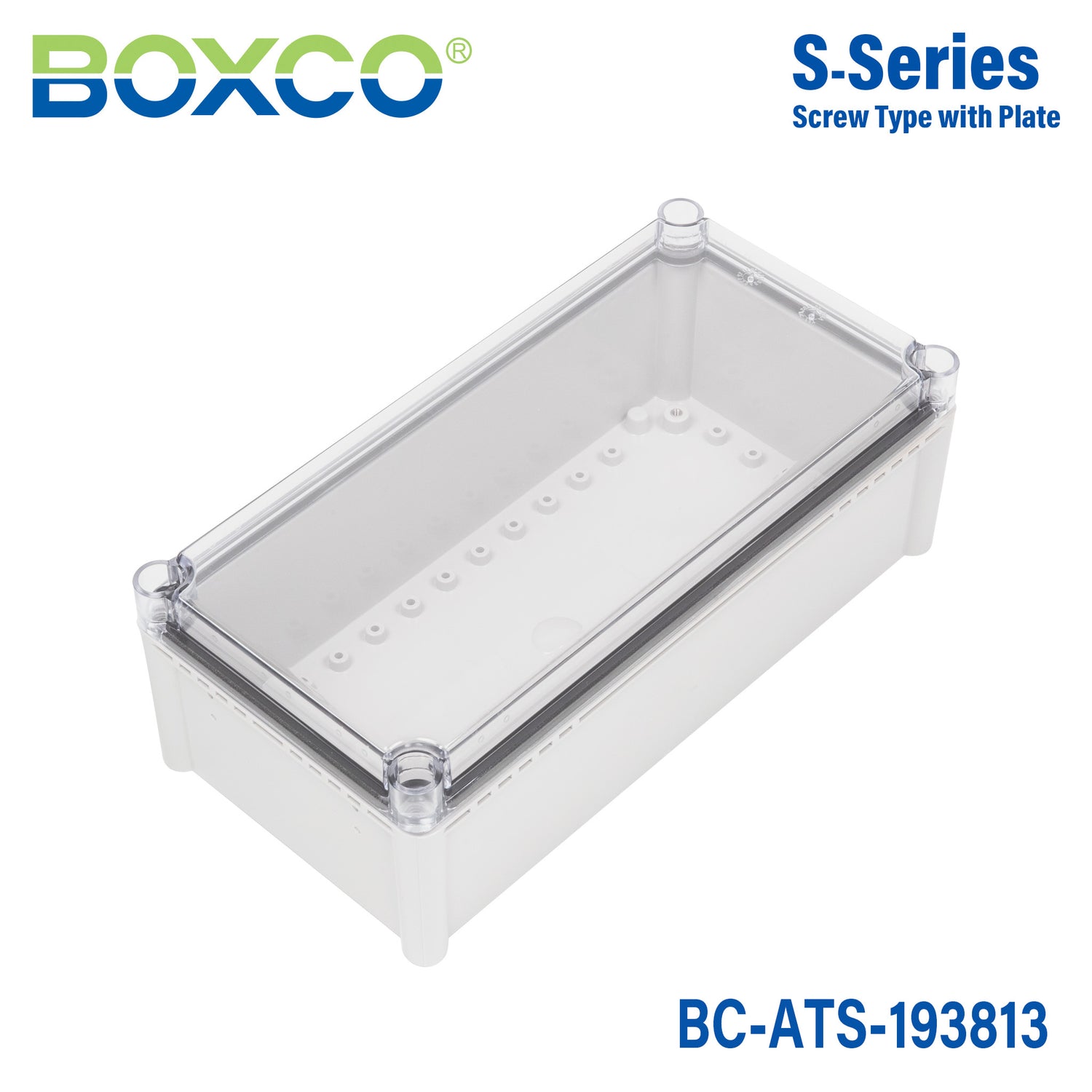

Boxco S-Series 190x380x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-193813
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATS-193813 is a 190×380×130 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-ATS-193813Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×380×130 mm (7.48×14.96×5.12 in)
Mounting plate dimension M1 × M2
159 × 347 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1938 P (Plastic, P type), 1938 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

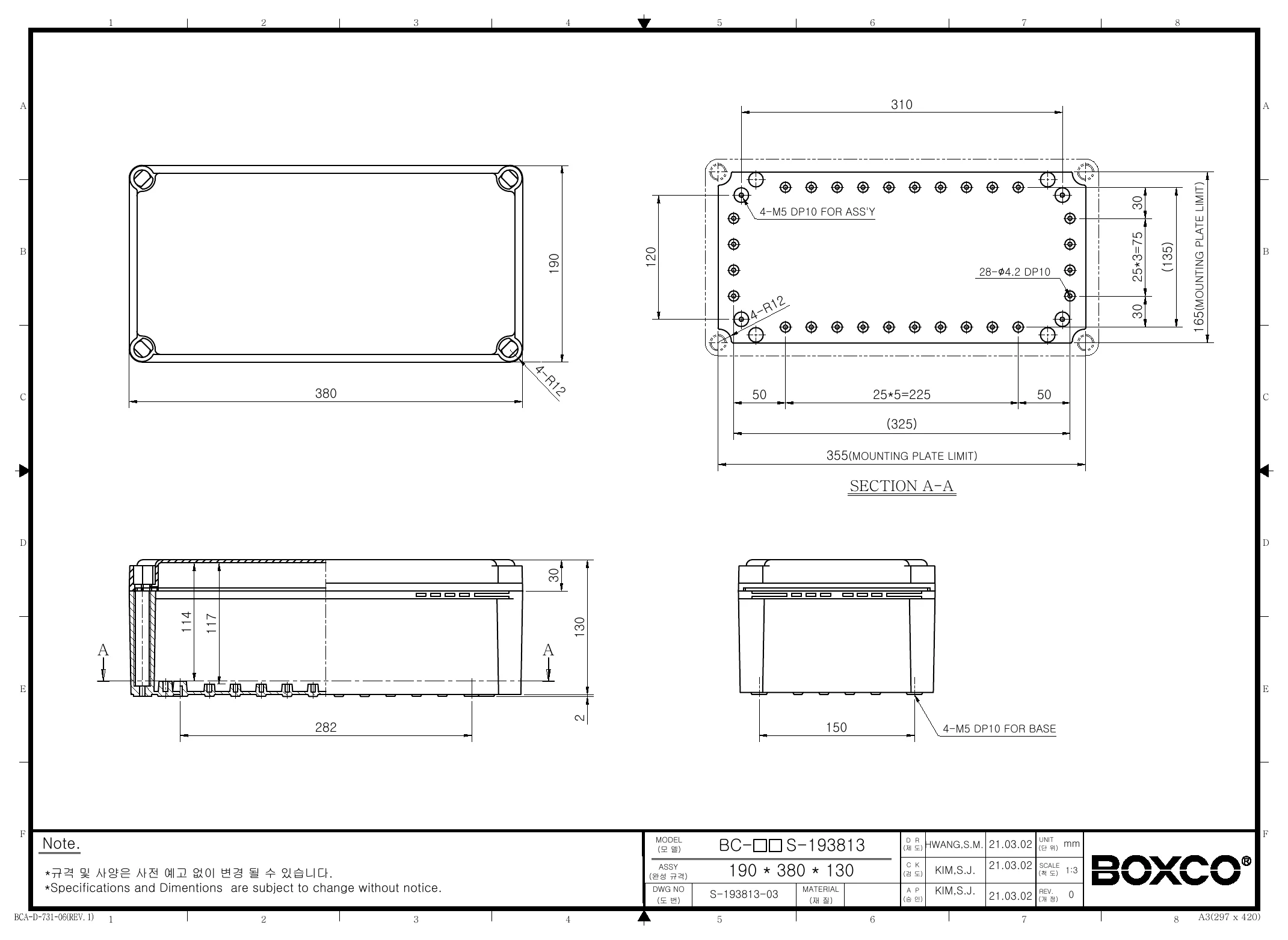

BC-ATS-193813 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure suited for?

This model is intended for protecting electronic and control equipment in industrial and commercial environments where a sealed plastic enclosure is needed. Its ABS construction, transparent cover, and impact and ingress ratings make it a practical choice for outdoor panels, monitoring devices, and other housed components that need visibility without opening the cover.

What are the exact dimensions of this enclosure?

This enclosure measures 7.48 x 14.96 x 5.12 inches, which corresponds to 190 x 380 x 130 mm. Those dimensions make it a relatively long enclosure within the S-Series, giving more internal space than compact junction-style boxes.

Is this enclosure suitable for outdoor or washdown environments?

This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The product description also states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time.

How durable is the enclosure against impact and harsh handling?

This enclosure carries an IK08 impact rating and is described as being made from high impact resistant material. Boxco also notes the design helps resist breakage during machining processes such as hole and press processing.

Does the transparent cover make this model different from opaque versions?

Yes. The transparent cover allows inspection of indicators, displays, or internal components without opening the enclosure, which can be useful in applications where visual checks are common. Buyers choosing between cover types often select this version when internal visibility matters more than a fully opaque housing.

What equipment mounting features are included in this enclosure?

The enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts for securing accessories such as DIN rail or other internal equipment. The description also highlights brass inserted injection molding for tightly fixing the internal mounting plate when heavier equipment is used.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C to 70 degrees C. That range makes it suitable for many indoor and outdoor industrial environments where temperature swings are a concern.
