Boxco

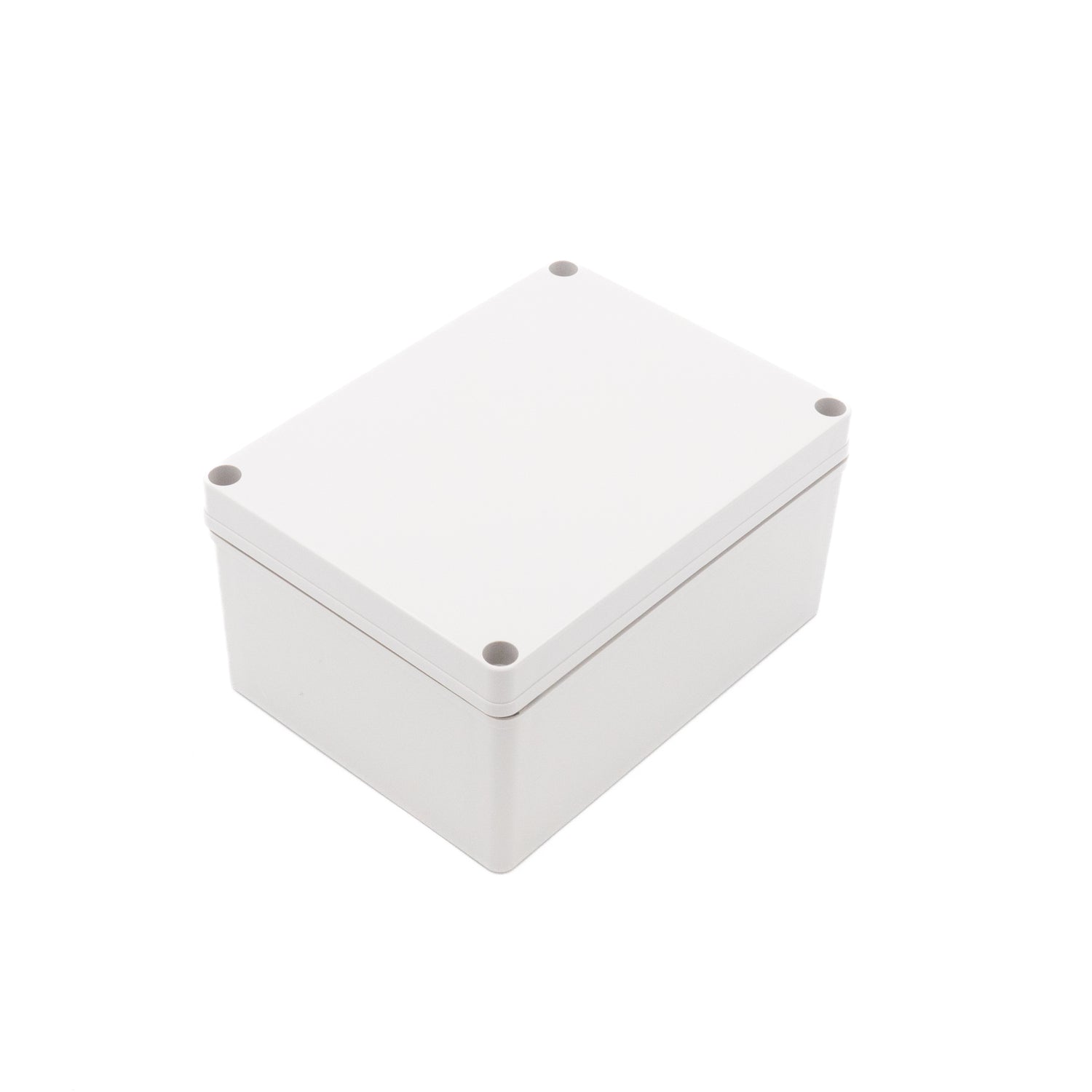

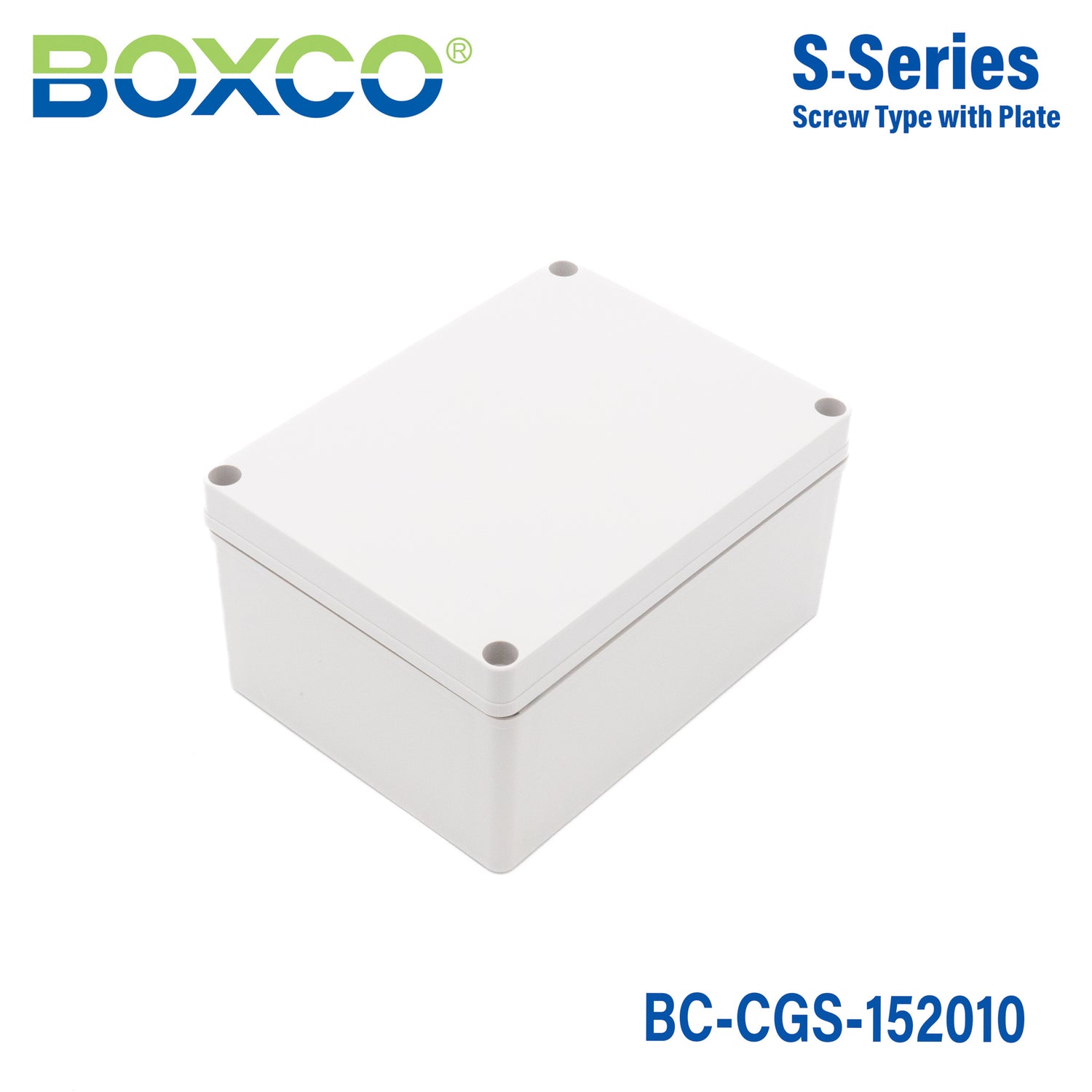

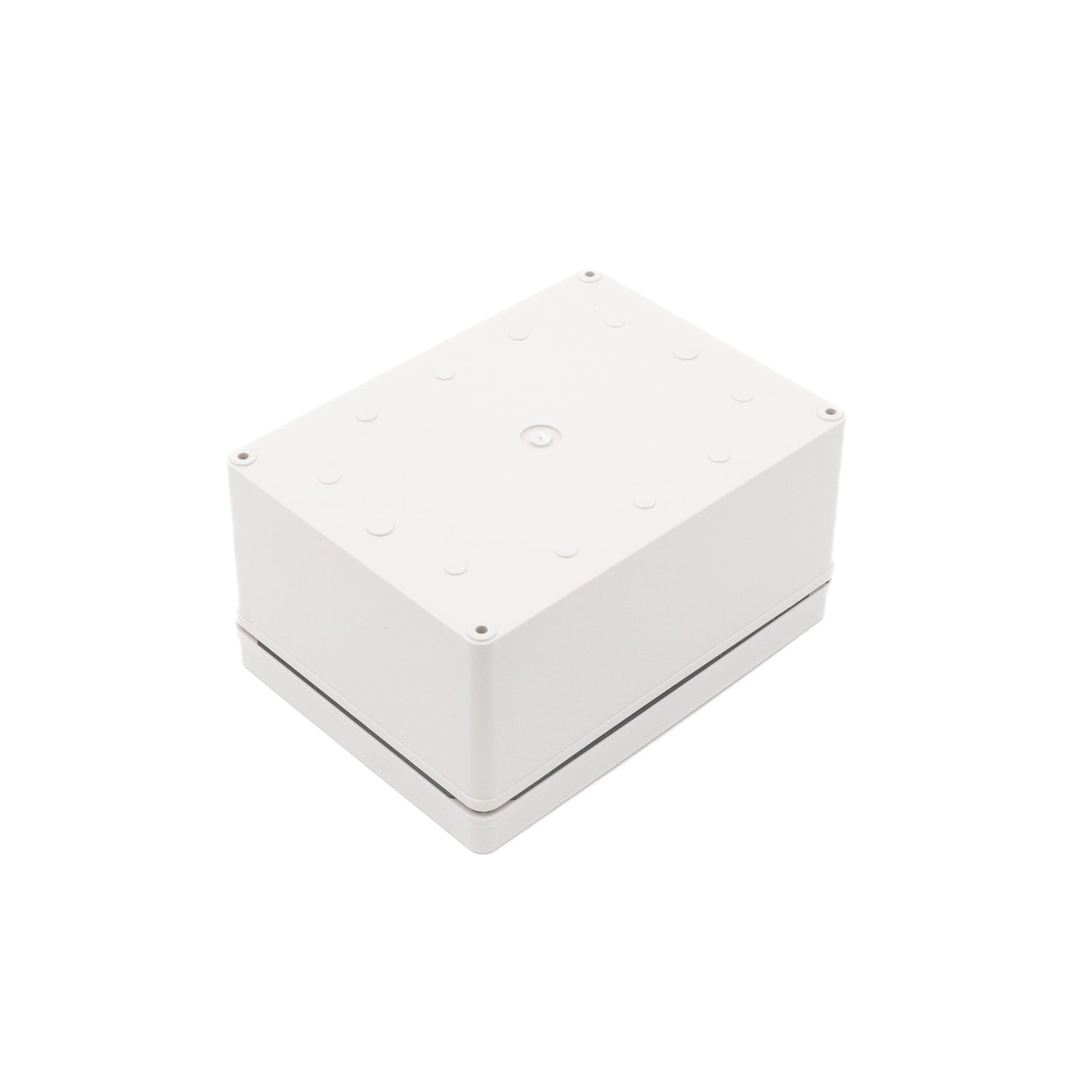

Boxco S-Series 150x200x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-152010
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGS-152010 is a 150×200×100 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-152010Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×200×100 mm (5.91×7.87×3.94 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

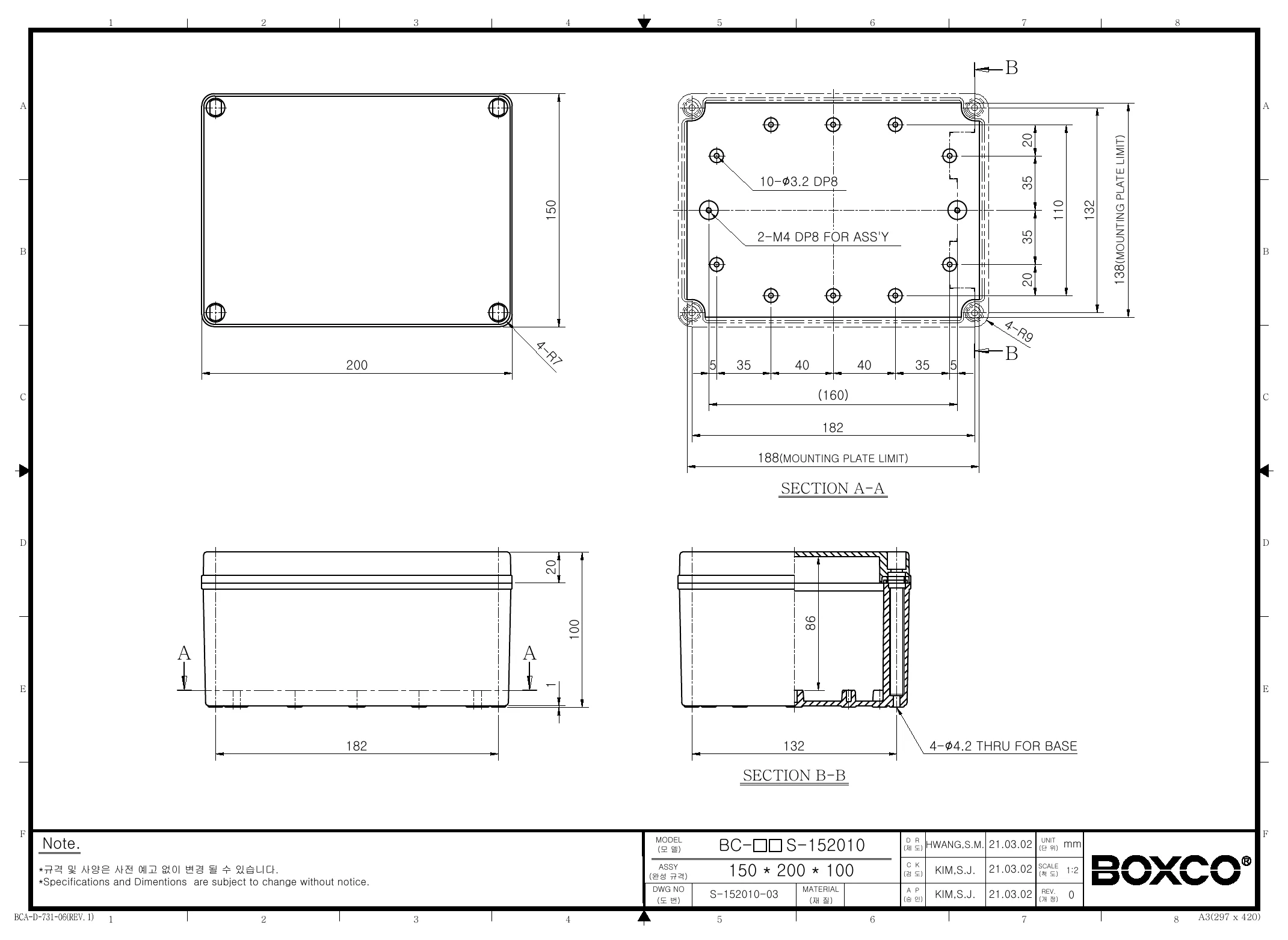

Technical drawings

BC-CGS-152010 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-CGS-152010 enclosure suited for?

This enclosure is suited for protecting electronic components and control devices in industrial, commercial, and OEM applications where a sealed plastic housing is needed. Its IP67 rating, IK08 impact rating, and anti-static PC construction make it a practical choice for environments that demand dust resistance, water protection, and durable equipment housing.

Can this enclosure be used outdoors?

Yes. Boxco states that this S-Series model includes an ultraviolet stabilizer to support outdoor use and reduce visible color change over time. It is also designed for strong waterproof and dust-proof performance through its gasketed construction.

What are the key specifications of the BC-CGS-152010 enclosure?

This model measures 5.91 x 7.87 x 3.94 inches, which is 150 x 200 x 100 mm. It is a screw-type plastic enclosure with a grey cover, made from PC material, rated IP67 and IK08, with an operating temperature range of -40 degrees C to 110 degrees C.

How durable is this plastic enclosure compared with standard general-purpose boxes?

This model is built from high impact resistant PC material and carries an IK08 impact rating, which makes it more robust than basic non-rated plastic housings. Boxco also notes that the material is designed to resist breakage during hole and press processing, which supports demanding enclosure applications.

Is this enclosure a good choice for protecting sensitive electronic equipment?

Yes. Boxco specifies that anti-static material is used in this model to help protect sensitive electronic instruments from static electricity. That makes it a stronger fit for electronics protection than enclosures that do not mention anti-static properties.

What internal equipment support features does this enclosure include?

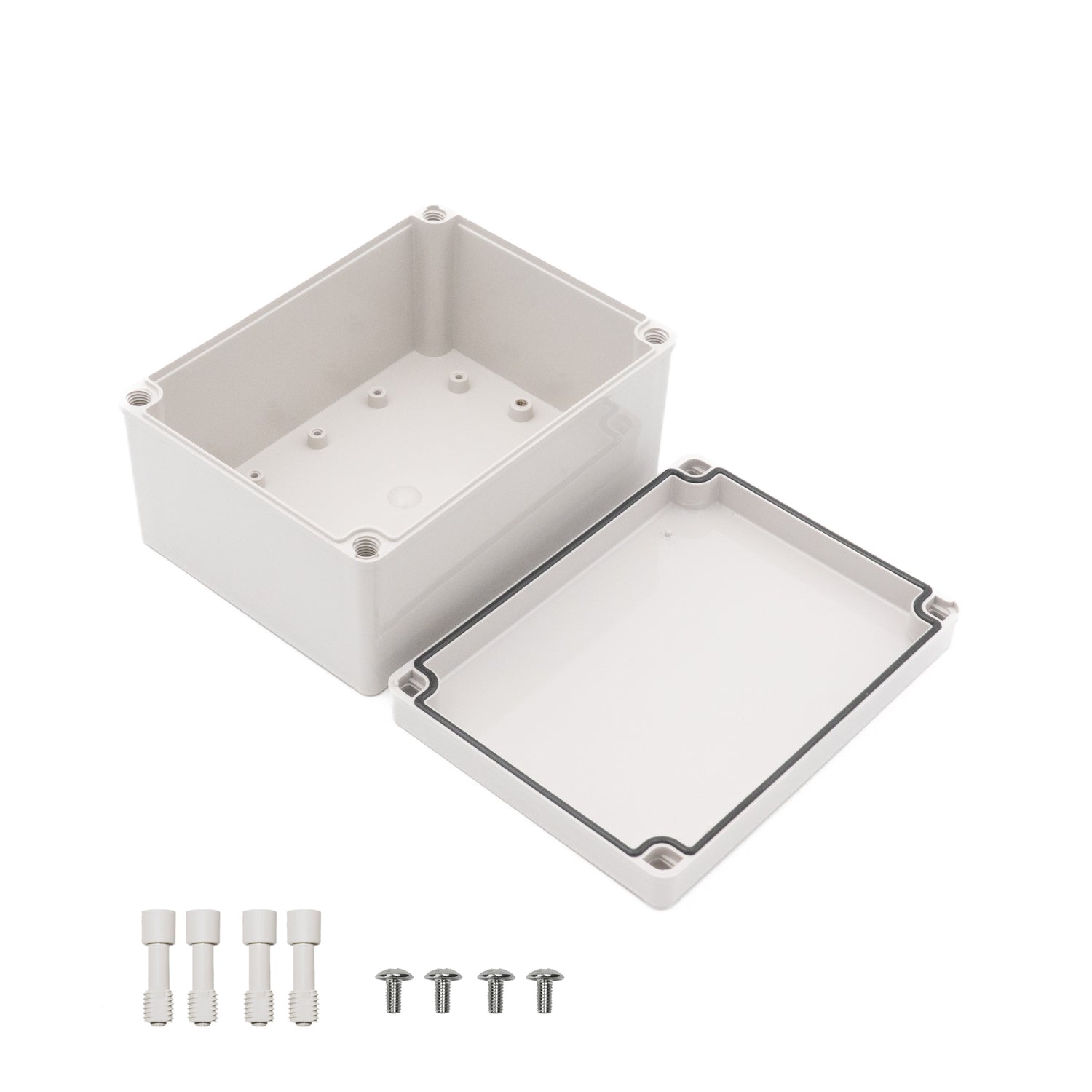

The enclosure includes mounting plate attachment points with brass inserted injection molding so an internal mounting plate can be fixed tightly for heavier equipment. It also has pre-molded mounting screw nuts that allow DIN rail or other equipment to be secured inside the enclosure.
