Boxco

Boxco S-Series 65x95x55mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-060905
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-060905 is a 65×95×55 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-060905Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
65×95×55 mm (2.56×3.74×2.17 in)
Mounting plate dimension M1 × M2
54 × 84 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
0609 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

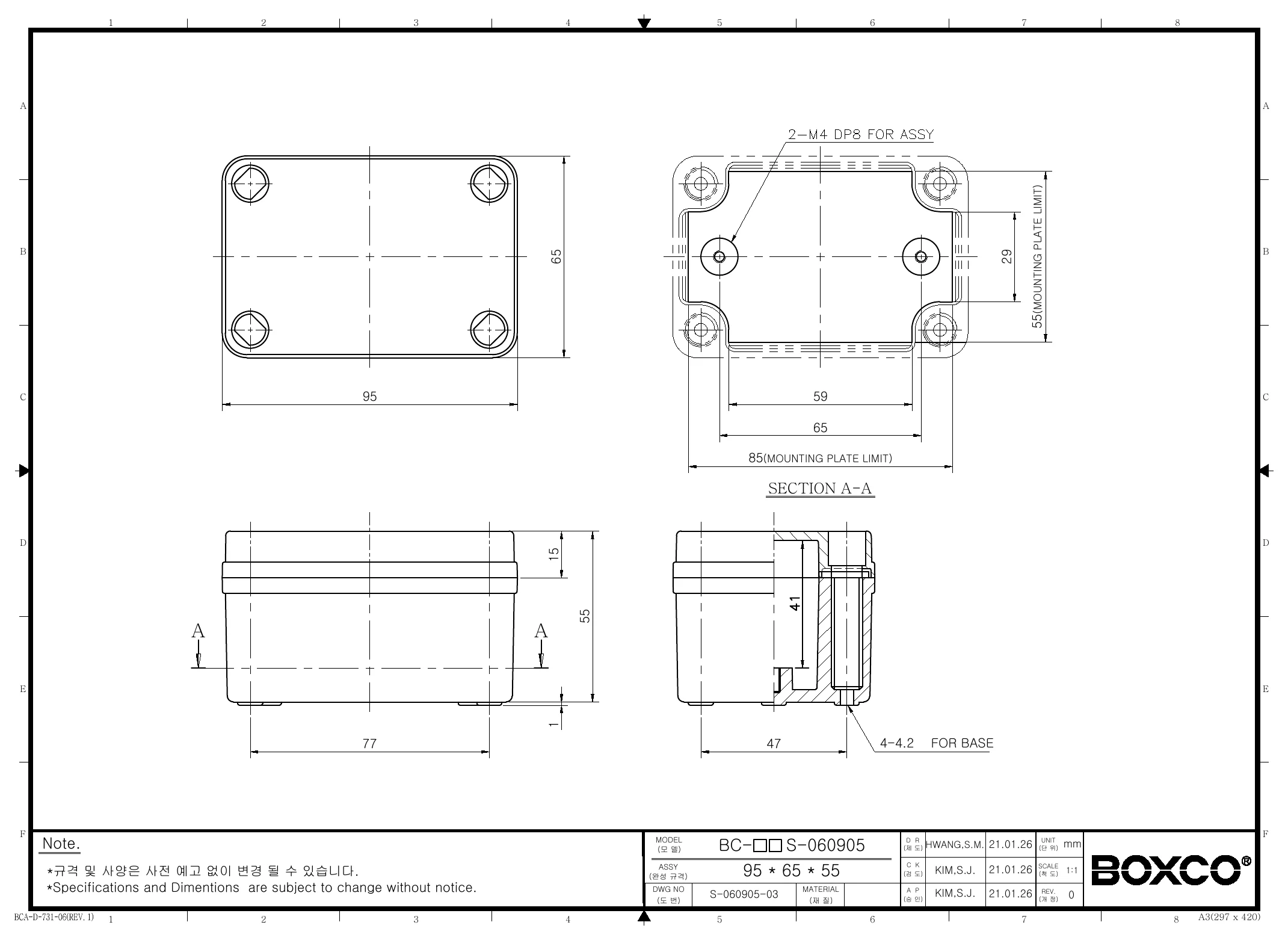

Technical drawings

BC-ATS-060905 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-ATS-060905 enclosure suited for?

This enclosure is suited for protecting sensitive electronic equipment in industrial, commercial, and outdoor environments where dust, water, and impact resistance matter. Its anti-static material and high-impact ABS construction make it a practical choice for control, monitoring, and instrumentation housings.

Is this enclosure suitable for outdoor use?

Yes. Boxco adds an ultraviolet stabilizer to the S-Series to help protect the enclosure in outdoor use and reduce visible color change over time. Its IP67 rating also supports use in wet or dusty environments when a sealed enclosure is needed.

What protection ratings does this model offer?

The BC-ATS-060905 is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. These ratings make it a strong option for applications that need both environmental sealing and durability against external impact.

What are the size and material of this enclosure?

This model measures 2.56 x 3.74 x 2.17 inches, which corresponds to 65 x 95 x 55 mm. It is made from ABS plastic and includes a transparent cover, giving visibility inside the enclosure without changing the cover type.

What internal mounting features does this enclosure include?

This enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features help support secure installation of internal components such as mounting plates or DIN rail-based hardware.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 degrees C to 70 degrees C. That range supports use in both cold and warm environments where standard-purpose plastic enclosures may be exposed to temperature variation.
