Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80×130×85mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-081308-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-081308-K is a 80×130×85 mm ABS enclosure with a transparent cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-ATS-081308-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×85 mm (3.15×5.12×3.35 in)

Material

Material
ABS
Cover
Transparent

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

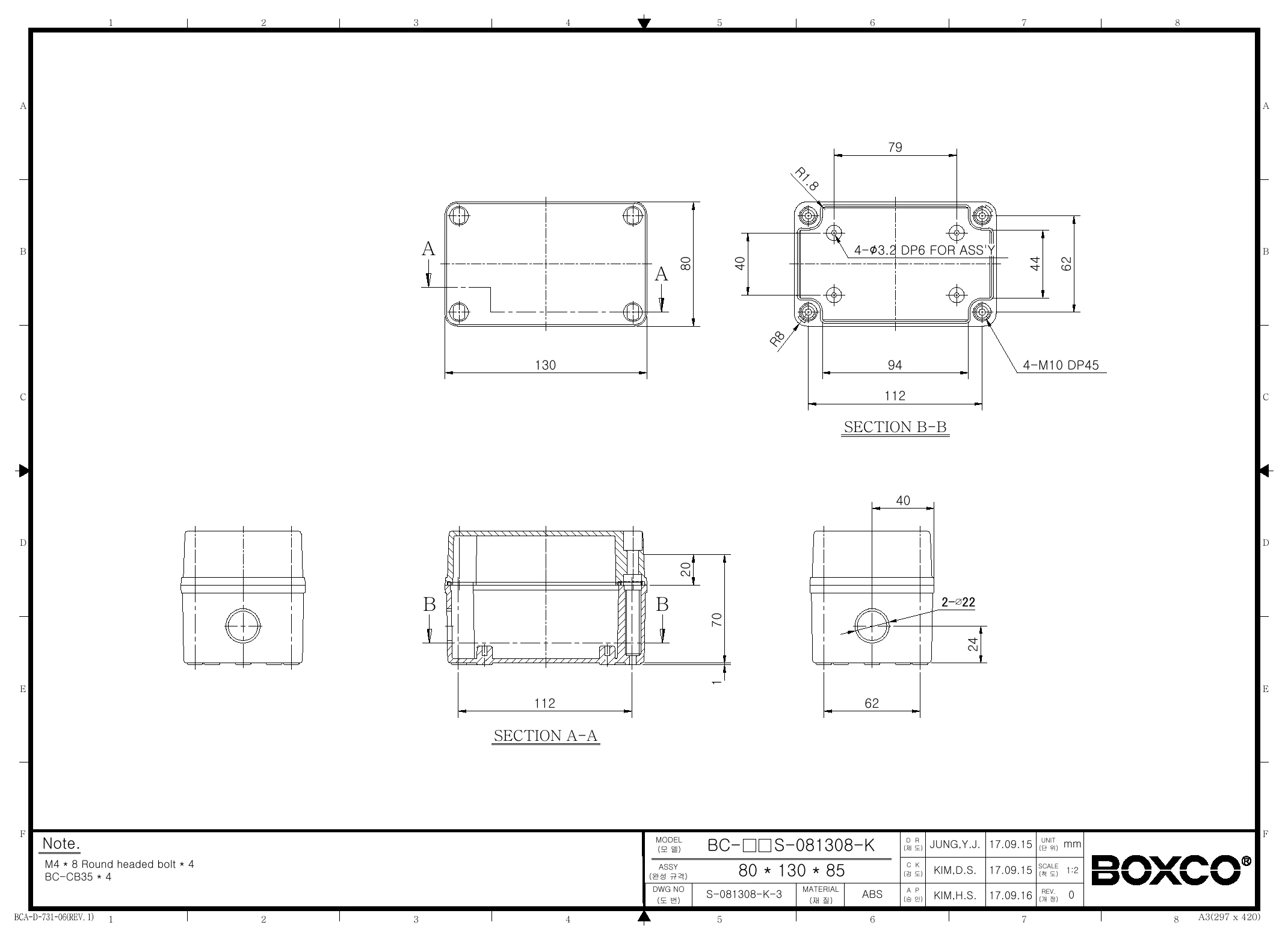

BC-ATS-081308-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of this Boxco S-Series enclosure?

This model is a plastic enclosure made from ABS with a transparent cover and a screw type closure. Its external size is 3.15 x 5.12 x 3.35 inches (80 x 130 x 85 mm). It is rated IP67 for dust and water protection and IK08 for impact resistance.

What kind of environments is this enclosure designed for?

This enclosure is suited for demanding indoor or outdoor environments where protection from dust, water ingress, and impact matters. The IP67 and IK08 ratings make it a practical choice for industrial and commercial applications. Its operating temperature range is -40 degrees C to 70 degrees C.

Is the cover transparent on this enclosure?

Yes, this specific model includes a transparent cover. That makes it useful when components or indicators inside the enclosure need to remain visible without opening it. The cover is part of the listed product configuration for this exact SKU.

What types of applications is this enclosure commonly used for?

This enclosure is typically used to protect electrical or control components in industrial, commercial, and OEM applications. Its sealed ABS construction and screw type cover make it a good fit for applications that need a compact protective housing. The knock out base can also support use cases where entry points are needed in the enclosure base design.

How does this model differ from a non-transparent enclosure?

The main difference is visibility: this model has a transparent cover, allowing inspection of internal components without opening the enclosure. That can be helpful for applications with displays, status indicators, or labels that need to stay visible. Other core specs listed for this model include ABS construction, IP67 protection, and IK08 impact resistance.

Does this enclosure include any special base feature?

Yes, the product description states that this S-Series enclosure has a knock out base. This is a distinguishing feature of this model in addition to its screw type closure. Buyers comparing enclosure options may find that important when selecting a housing style for their application.
