Boxco

Boxco S-Series 100x100x75mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-101007
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-101007 is a 100×100×75 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-101007Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×100×75 mm (3.94×3.94×2.95 in)
Mounting plate dimension M1 × M2
82 × 82 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1010 P (Plastic, P type), 1010 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

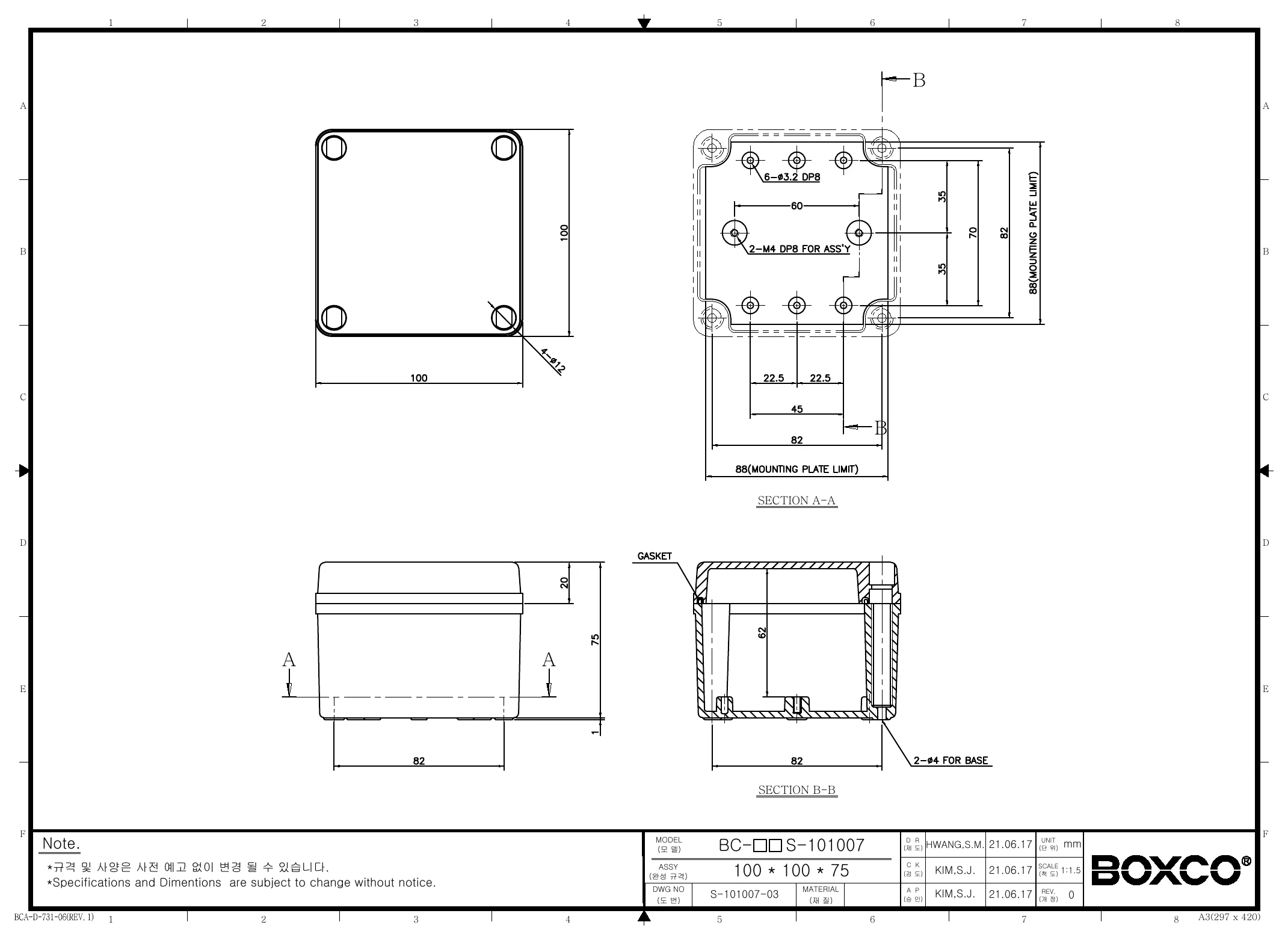

Technical drawings

BC-ATS-101007 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure typically used for?

This enclosure is suited for protecting electronic and control components in industrial or commercial applications where a sealed plastic housing is needed. Its transparent cover helps with visual inspection without opening the box, and the ABS construction is designed to handle general-purpose enclosure use.

What are the size and material of this enclosure?

This model measures 3.94 x 3.94 x 2.95 inches, which is 100 x 100 x 75 mm. It is made from ABS plastic and uses a transparent cover with a screw-type closure.

Is this enclosure suitable for outdoor or washdown environments?

This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The product description also notes ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time.

How durable is this enclosure against impact?

This enclosure carries an IK08 impact rating, indicating resistance to mechanical impact for demanding environments. The description also states the material is high impact resistant to help prevent breakage during processing and use.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C to 70 degrees C. That range makes it appropriate for many indoor and outdoor industrial environments, provided the overall application stays within those limits.

Does this enclosure support internal mounting hardware or accessories?

Yes, the description states it includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to support mounting plates, DIN rail, or other internal equipment within the enclosure.
