Boxco

Boxco S-Series 80x160x85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-081608
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-081608 is a 82×162×85 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-081608Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
82×162×85 mm (3.23×6.38×3.35 in)
Mounting plate dimension M1 × M2
68 × 148 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0816 P (Plastic, P type), 0816 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

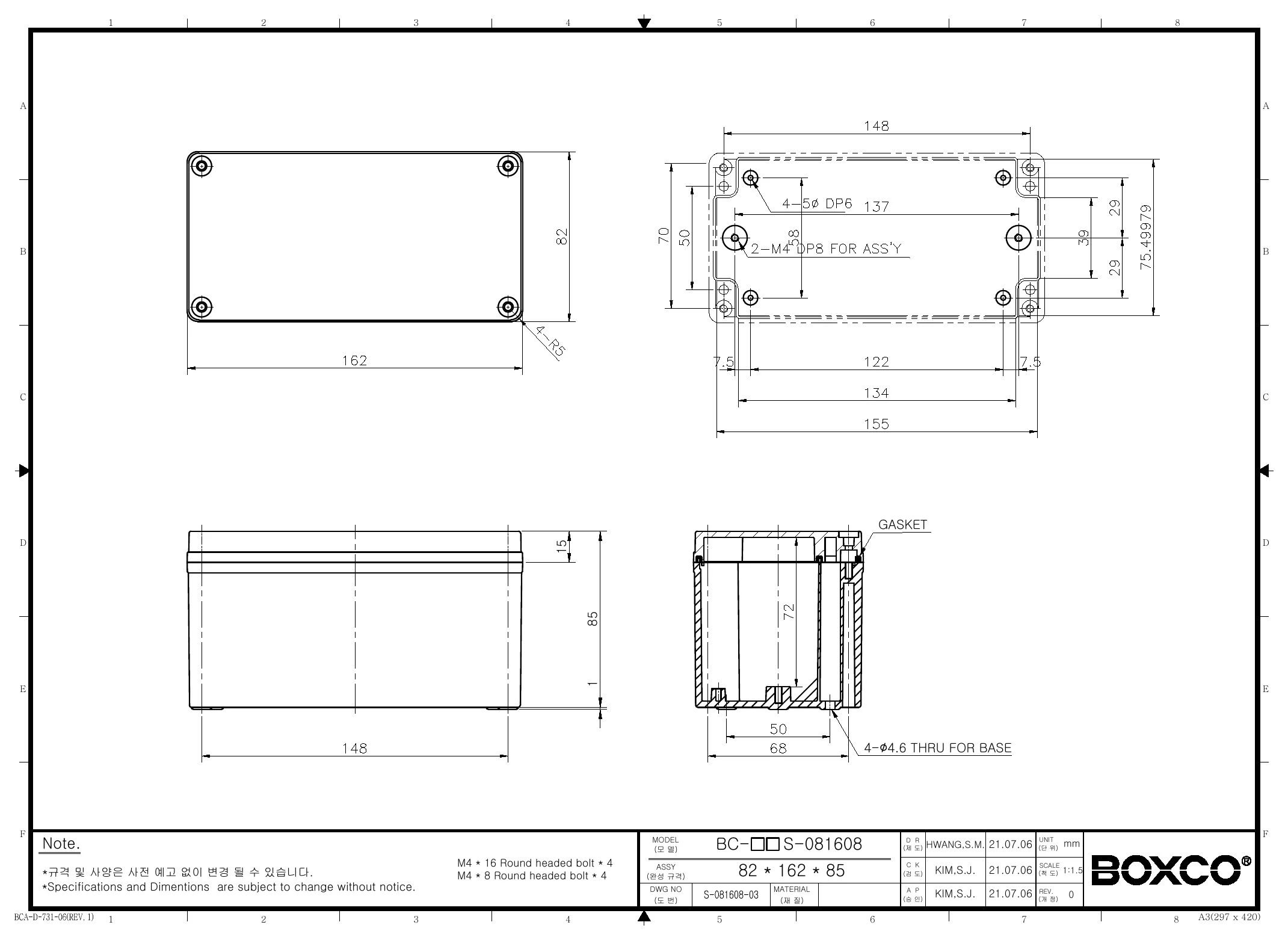

Technical drawings

BC-AGS-081608 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure best suited for?

This enclosure is suited for protecting electronic components and control hardware in industrial and commercial environments where dust, moisture, and impact resistance matter. Its ABS construction, sealed design, and internal mounting features make it a practical choice for OEM panels, automation housings, and outdoor equipment enclosures.

How durable is the BC-AGS-081608 enclosure in harsh environments?

This model is rated IP67 for protection against dust and water ingress and IK08 for impact resistance. It is made from high impact resistant ABS and includes ultraviolet stabilizer material to help maintain performance and appearance during outdoor use.

What are the key size and material specifications for this enclosure?

The BC-AGS-081608 measures 3.15 x 6.3 x 3.35 inches, which corresponds to 80 x 160 x 85 mm. It is made from ABS and comes with a grey cover in a screw-type enclosure design.

Can this enclosure support internal components and mounting hardware?

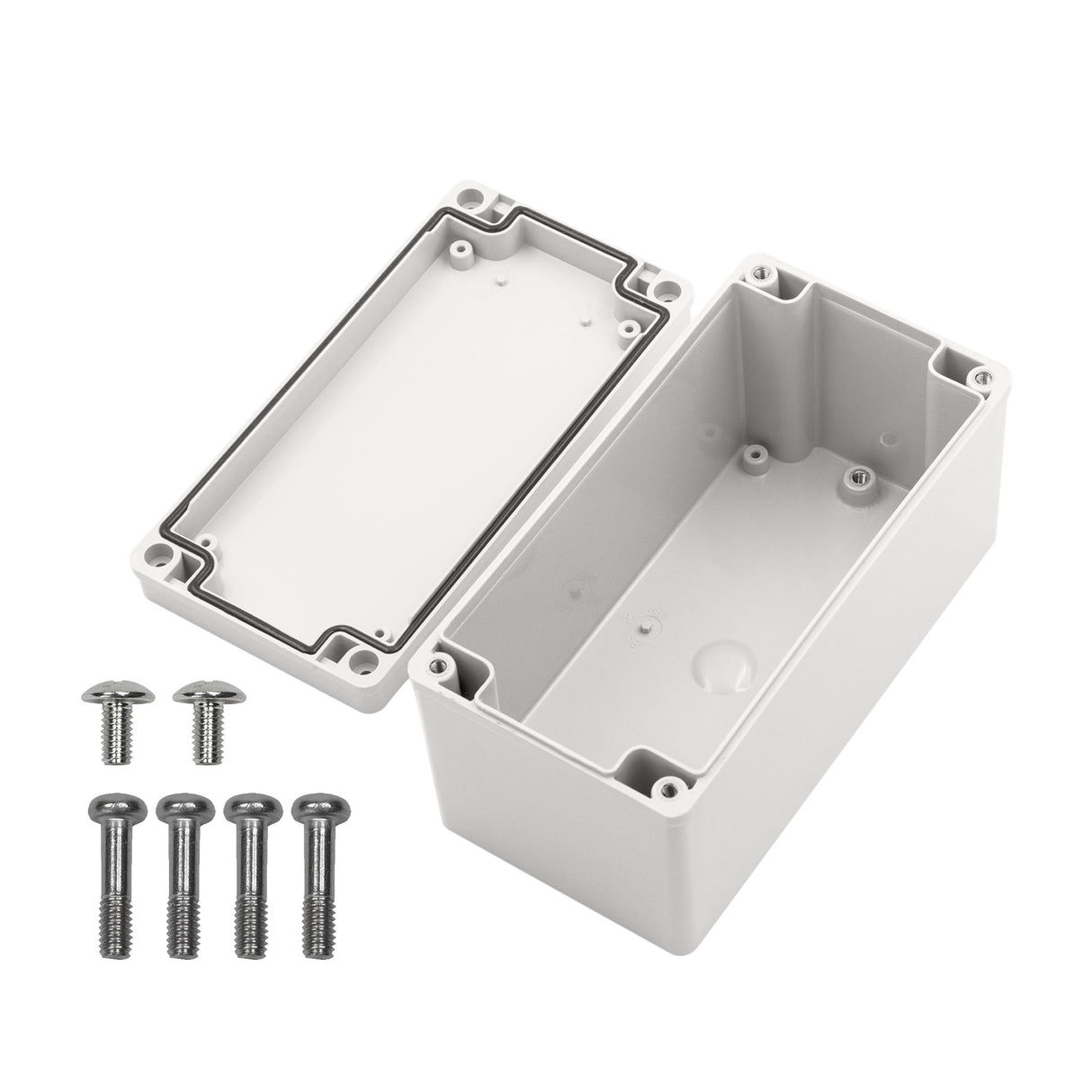

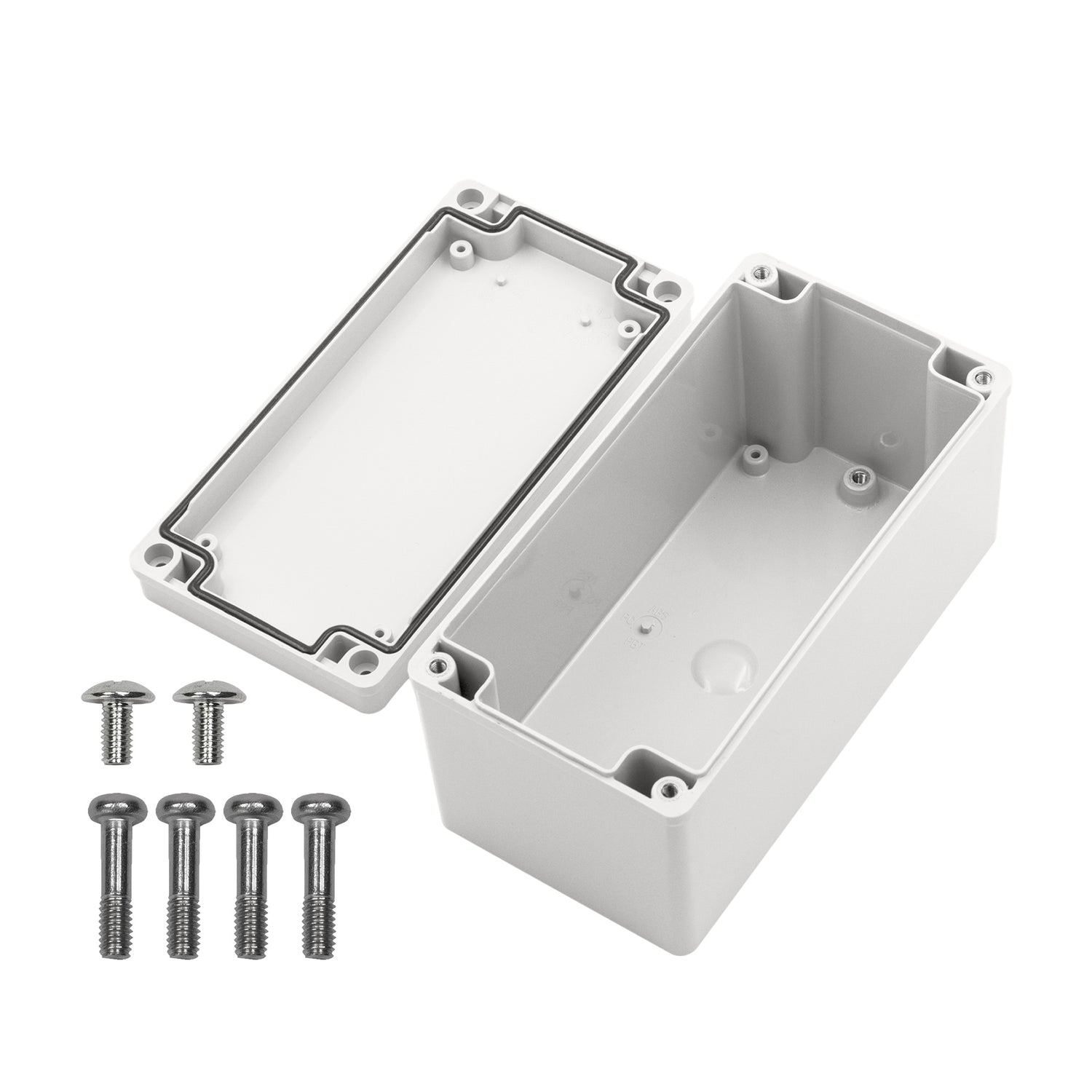

Yes. It includes internal mounting plate attachment points with brass inserted injection molding, which helps secure heavier equipment inside the enclosure. It also has pre-molded mounting screw nuts for mounting compatible internal hardware such as DIN rail accessories.

What temperature range can this plastic enclosure handle?

This model is rated for use from -40 degrees C to 70 degrees C. That range makes it suitable for many indoor and outdoor industrial applications where equipment may face low or elevated ambient temperatures.

What distinguishes this Boxco S-Series enclosure from a basic plastic project box?

This model is built for more demanding environments than a basic general-purpose box, with IP67 and IK08 ratings, UV-stabilized material, and anti-static properties. It also includes integrated mounting features and a precision-injected gasket system designed for strong waterproof and dust-proof performance.
