Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 100x200x70mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-102007
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-102007 is a 100×200×70 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-102007Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×200×70 mm (3.94×7.87×2.76 in)
Mounting plate dimension M1 × M2
77 × 176 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1020 P (Plastic, P type), 1020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

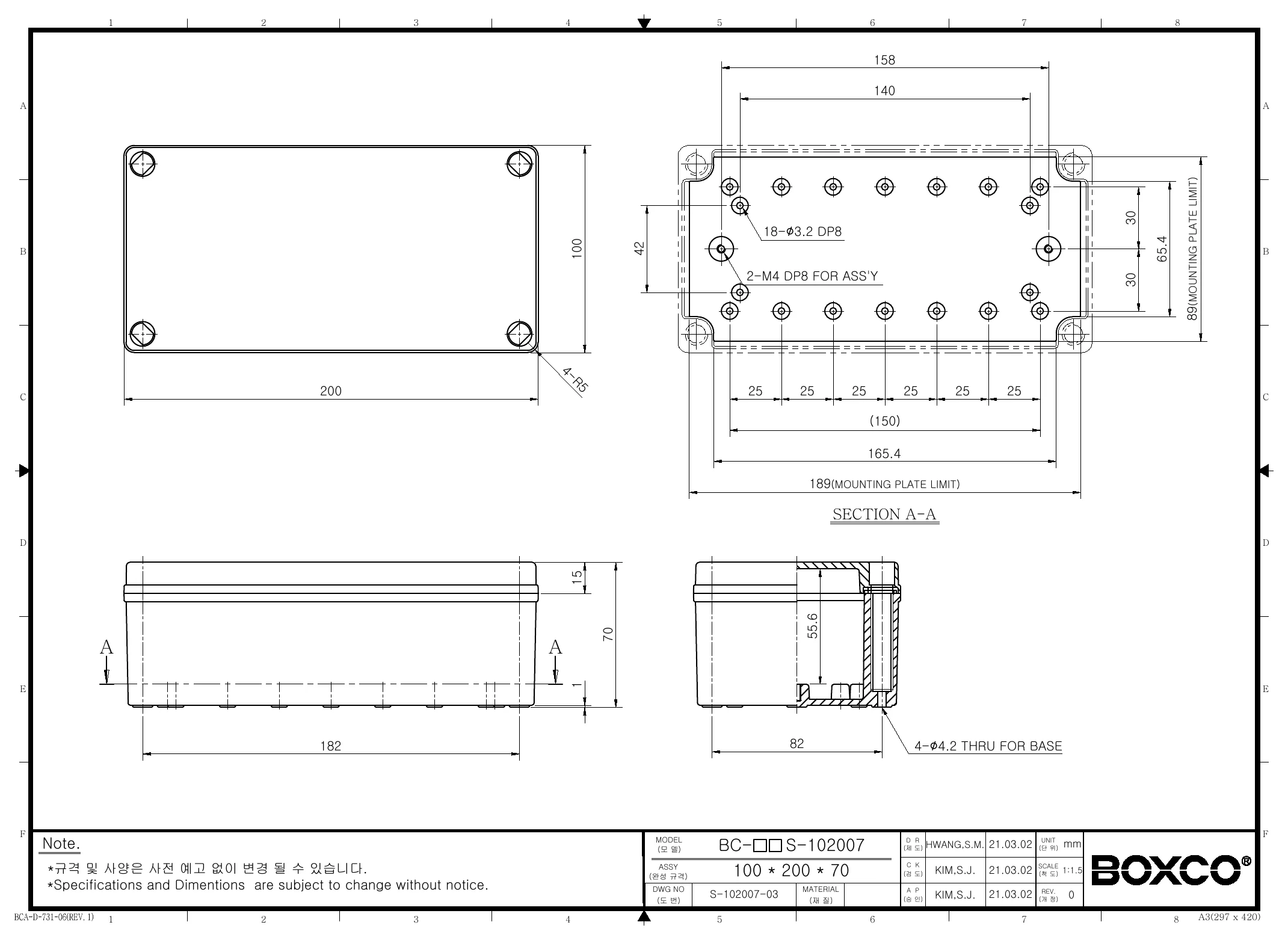

Technical drawings

BC-ATS-102007 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure suited for?

This enclosure is intended for protecting electronic components and sensitive instruments in industrial and commercial environments. Its anti-static material and high-impact ABS construction make it a practical choice for control, monitoring, and equipment protection applications where durability matters.

Is this enclosure suitable for outdoor use?

Yes, this model is described as having an ultraviolet stabilizer added for outdoor usage. That helps reduce visible color change over time when exposed to outdoor conditions.

What level of dust and water protection does this enclosure provide?

This enclosure is rated IP67, which indicates strong protection against dust ingress and water exposure. The product description also notes a precision-injected gasket designed to support waterproof and dust-proof performance.

How impact-resistant is this plastic enclosure?

This model carries an IK08 impact rating and is made from high-impact-resistant ABS. The description also states the material is strong against external impact and helps prevent breakage during hole and press processing.

What are the dimensions and operating temperature range of this enclosure?

This Boxco S-Series enclosure measures 3.94 x 7.87 x 2.76 inches, which corresponds to 100 x 200 x 70 mm. Its stated operating temperature range is -40 C to 70 C.

Does this enclosure support mounting internal components securely?

Yes, the product description highlights internal mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to help secure internal equipment and support heavier installed components.
