Boxco S-Series 100x230x70mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-102307
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-102307 is a 100×230×70 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-102307Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×230×70 mm (3.94×9.06×2.76 in)
Mounting plate dimension M1 × M2
80 × 210 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1023 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

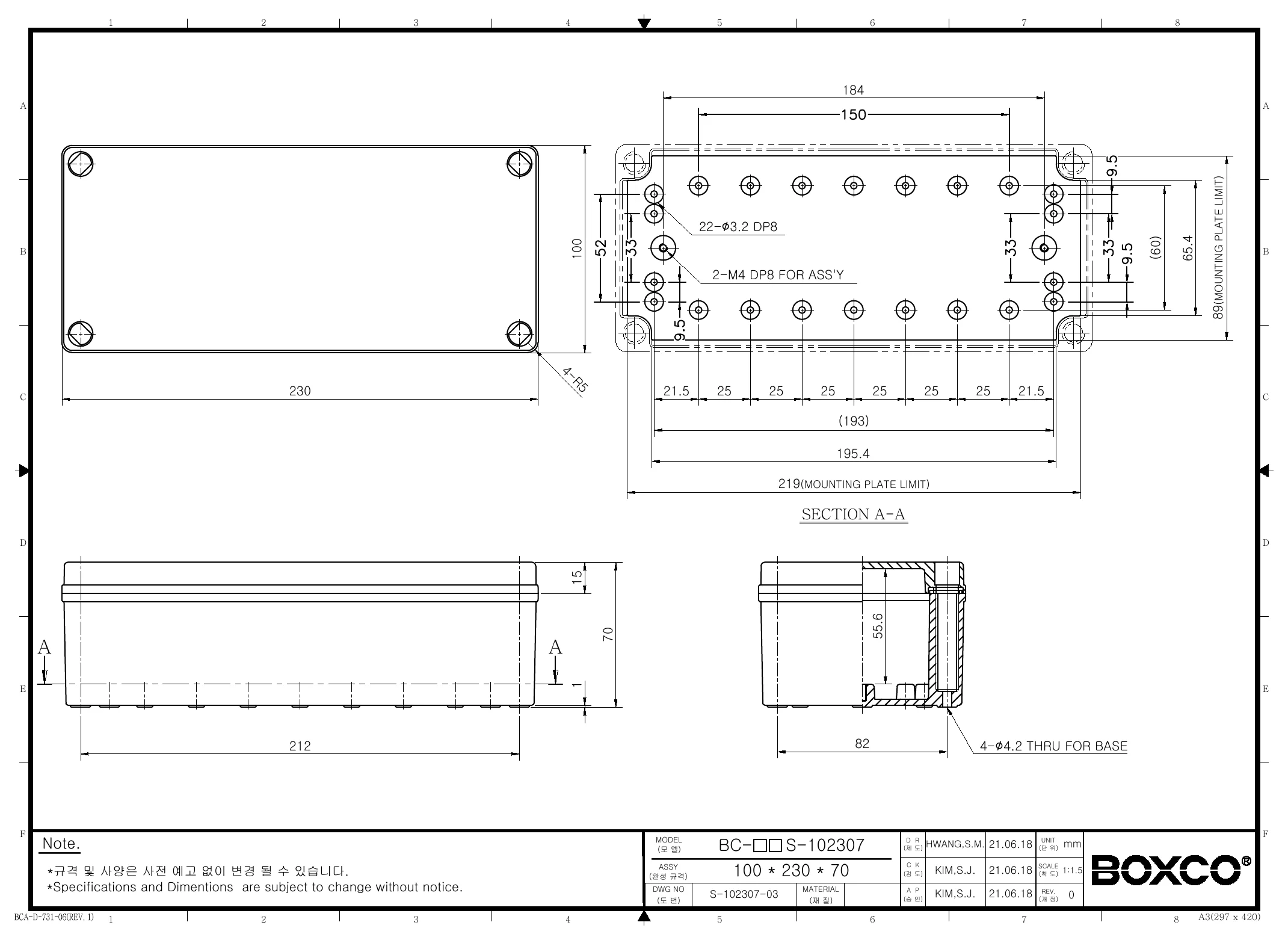

Technical drawings

BC-ATS-102307 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure best suited for?

This model is suited for protecting sensitive electronic components in industrial, commercial, and outdoor equipment housings where dust, water, and impact resistance matter. Its anti-static material and transparent screw-type cover make it a practical choice when protection and visual inspection are both important.

Is this enclosure suitable for outdoor environments?

Yes. The enclosure includes an ultraviolet stabilizer to support outdoor use and help reduce visible color change over time. Its IP67 rating also indicates strong protection against dust and water ingress in demanding environments.

What are the key specifications of this enclosure?

This model measures 3.94 x 9.06 x 2.76 inches (100 x 230 x 70 mm) and is made from ABS plastic with a transparent cover. It is rated IP67 and IK08, operates from -40 degrees C to 70 degrees C, and weighs 0.3600 kg.

What does the transparent cover provide compared with a solid cover enclosure?

The transparent cover allows contents inside the enclosure to be viewed without opening it. For applications where quick visual checks are useful, this can be an advantage over an opaque version while keeping the same screw-type enclosure format.

Can this enclosure help protect static-sensitive equipment?

Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes it a better fit for static-sensitive applications than a standard non-anti-static enclosure.

How durable is this enclosure for industrial use?

This enclosure is made from high impact resistant ABS and carries an IK08 impact rating. The product description also highlights strong resistance to external impact and reduced risk of breakage during hole and press processing.
