Boxco

Boxco S-Series 125×175×100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-121710-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-121710-K is a 125×175×100 mm ABS enclosure with a transparent cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-ATS-121710-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
125×175×100 mm (4.92×6.89×3.94 in)
Mounting plate dimension M1 × M2
110 × 159 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1217 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

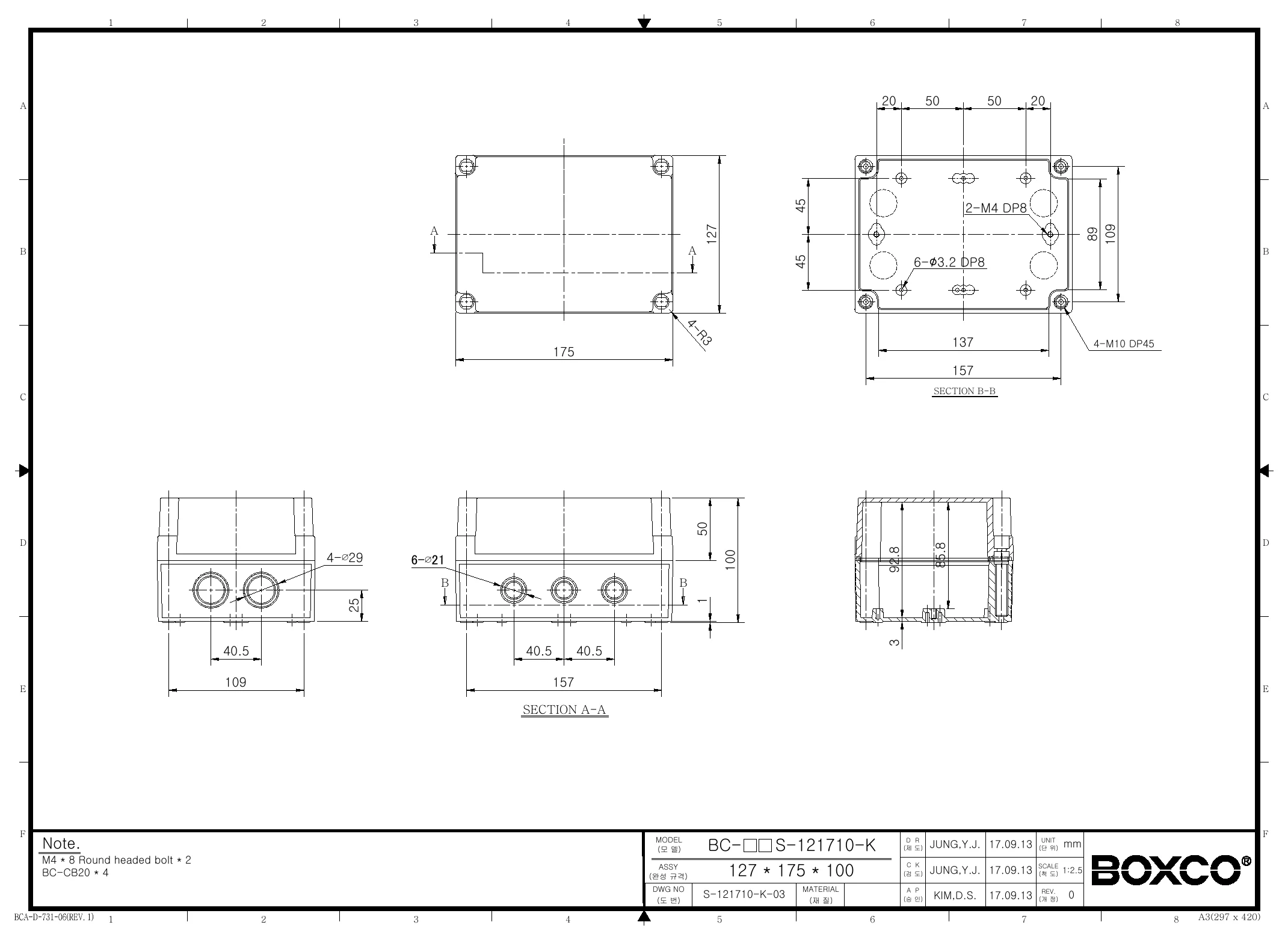

Technical drawings

BC-ATS-121710-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure typically used for?

This model is a plastic enclosure designed for protecting components in industrial and commercial applications where a sealed housing is needed. Its screw-type transparent cover and IP67 rating make it a practical choice when users need visibility into the enclosure without opening it.

What are the dimensions of this enclosure?

This Boxco S-Series enclosure measures 4.92 x 6.89 x 3.94 inches, which is 125 x 175 x 100 mm. Those dimensions make it a mid-size enclosure option within the plastic box category.

Does this enclosure have a clear cover?

Yes. This model includes a transparent cover, which allows visual inspection of the contents without removing the lid. That can be useful when checking indicators, labels, or internal layout at a glance.

Is this enclosure suitable for dusty or wet environments?

This enclosure is rated IP67, which indicates strong protection against dust ingress and temporary immersion in water. That makes it suitable for demanding indoor or outdoor environments where moisture and dust resistance are important.

What material is this enclosure made from?

This model is made from ABS plastic. ABS is commonly selected for enclosure applications that need a durable, lightweight non-metallic housing.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40°C to 70°C. This makes it suitable for environments that experience both low and moderately high temperatures within that range.

Does this model include any special base feature?

Yes. According to the product features, this S-Series enclosure has a knock out base. That is a distinguishing feature of this specific model within the enclosure family.
