Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 125x125x75mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-121207
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-121207 is a 125×125×75 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-121207Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
125×125×75 mm (4.92×4.92×2.95 in)
Mounting plate dimension M1 × M2
107 × 107 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1212 P (Plastic, P type), 1212 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

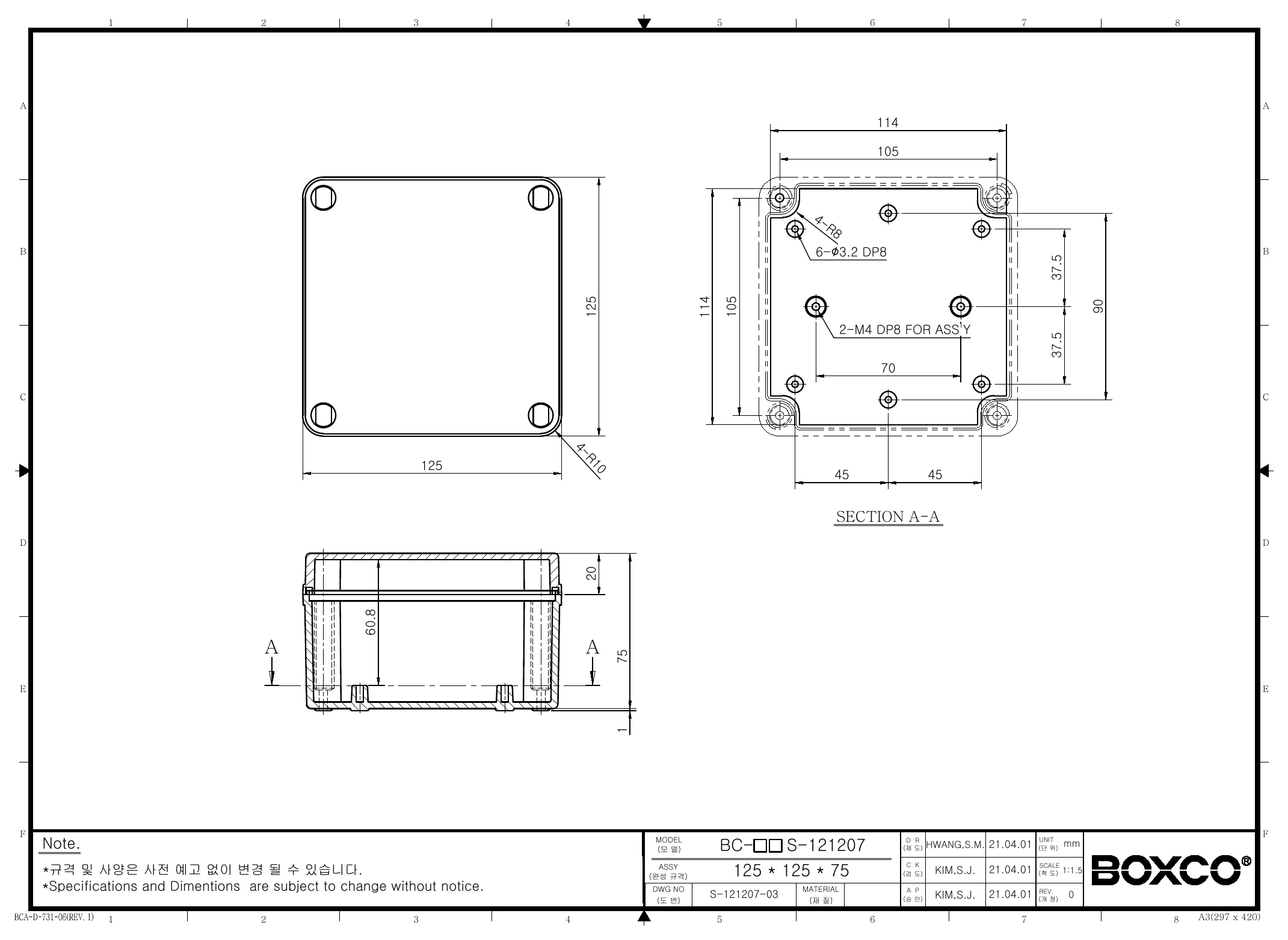

BC-ATS-121207 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-ATS-121207 enclosure suited for?

This enclosure is suited for protecting sensitive electronic equipment in industrial and commercial environments where dust, water, and impact resistance matter. Its anti-static ABS construction and transparent screw-type cover make it a practical choice when components need to remain protected while still being visually inspected.

Is this plastic enclosure appropriate for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce noticeable color change over long periods. Its IP67 rating also supports use in exposed environments where protection from dust and water ingress is important.

What are the key specifications of this enclosure?

This model measures 4.92 x 4.92 x 2.95 inches (125 x 125 x 75 mm) and weighs 0.264 kg. It is made of ABS, uses a transparent screw-type cover, carries IP67 and IK08 ratings, and has an operating temperature range of -40°C to 70°C.

How does the transparent cover help compared with a solid cover enclosure?

The transparent cover allows visual inspection of internal components without opening the enclosure. For buyers comparing enclosure styles, that can help with routine checks while maintaining the protection benefits of a screw-type sealed housing.

Is this enclosure designed to support internal mounting hardware?

Yes. The description notes internal mounting plate attachment points with brass inserted injection molding, which helps secure a mounting plate firmly inside the enclosure. It also includes pre-molded mounting screw nuts for fastening compatible internal hardware such as DIN rail-related equipment.

How durable is this enclosure in demanding environments?

This model is built from high impact resistant ABS and carries an IK08 impact rating. The description also highlights molded screw threads for cover strength and a precision-injected gasket designed to support strong waterproof and dust-proof performance.
