Boxco

Boxco S-Series 125x175x100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-121710
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATS-121710 is a 125×175×100 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-121710Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
125×175×100 mm (4.92×6.89×3.94 in)
Mounting plate dimension M1 × M2
110 × 160 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1217 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

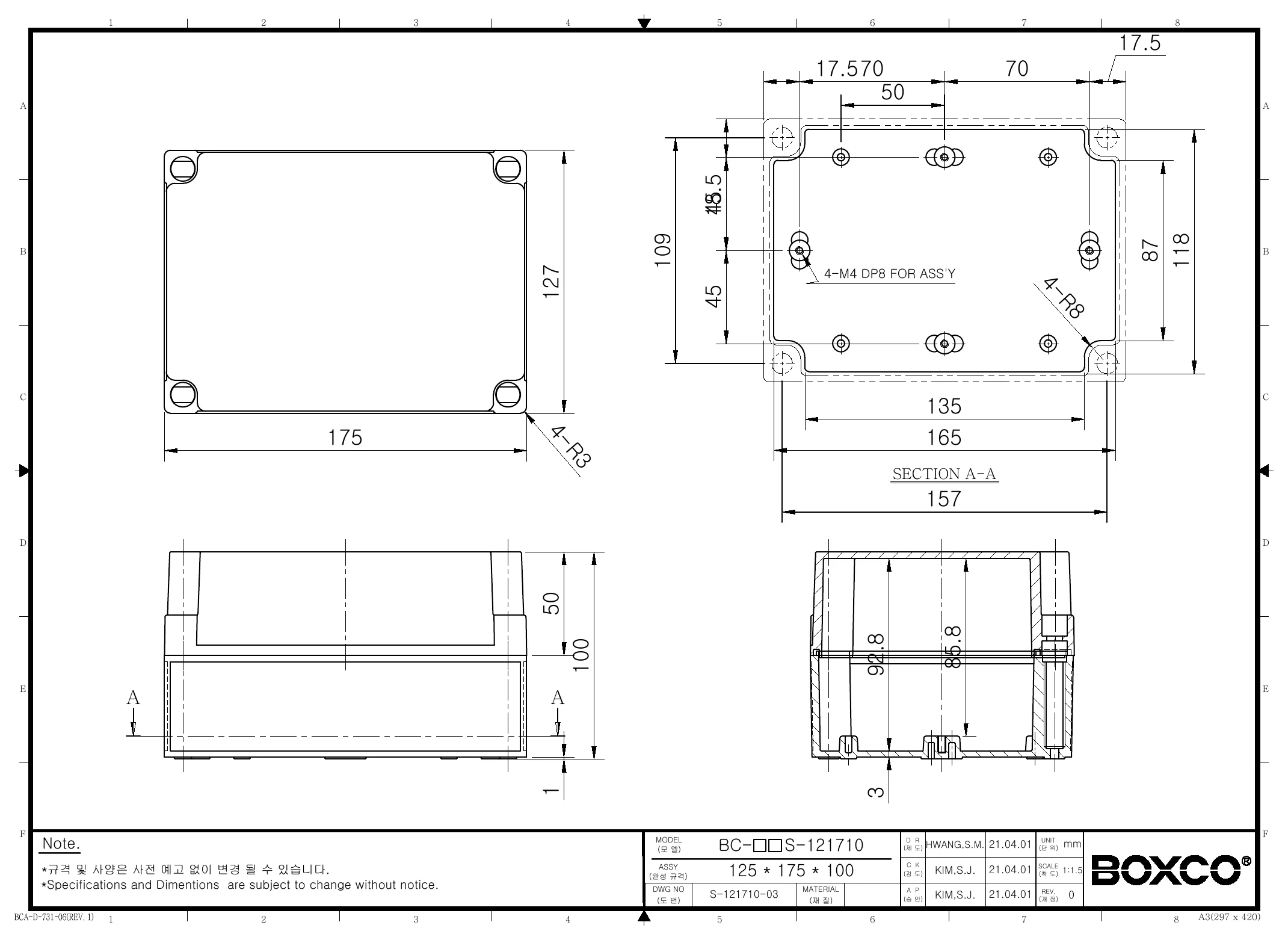

Technical drawings

BC-ATS-121710 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco BC-ATS-121710 enclosure?

This model is a Boxco S-Series plastic enclosure made from ABS with a transparent cover and screw-type closure. Its external size is 4.92 x 6.89 x 3.94 inches (125 x 175 x 100 mm), with an IP67 protection rating and IK08 impact rating. The listed operating temperature range is -40 °C to 70 °C, and the enclosure weighs 0.424 kg.

Is this enclosure suitable for outdoor or exposed environments?

This enclosure is designed for demanding environments because it has an IP67 rating for dust-tight and water-resistant protection. Boxco also adds an ultraviolet stabilizer to the S-Series for outdoor usage, helping reduce visible color change over long-term exposure. Its IK08 impact rating also supports use where moderate mechanical protection is needed.

Can this enclosure be used for sensitive electronic instruments?

Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a practical choice for housing electronics where electrostatic protection is an important buying factor.

What is the benefit of the transparent cover on this model?

The transparent cover allows visual inspection of indicators, labels, or internal components without opening the enclosure. That can be useful in applications where you want to check status information while keeping the enclosure closed. It also differentiates this version from opaque-cover enclosure options in the same general category.

Does this enclosure support mounting plates or DIN rail hardware?

Yes. This model includes internal mounting plate attachment points with brass inserted injection molding for securing heavier equipment inside the enclosure. It also has pre-molded mounting screw nuts that can be used for DIN rail or other equipment supported by that mounting format.

How is this enclosure built for sealing and durability?

The enclosure uses a gasket that is injected by a CNC robot process to support strong waterproof and dust-proof performance. The cover bolt attachment points and molded screw threads are intended to provide added strength in repeated-use industrial enclosure applications. Boxco also describes the material as high impact resistant to help reduce breakage during hole and press processing.
