Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 125x175x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-121707
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-121707 is a 125×175×75 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-121707Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
125×175×75 mm (4.92×6.89×2.95 in)
Mounting plate dimension M1 × M2
110 × 160 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1217 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

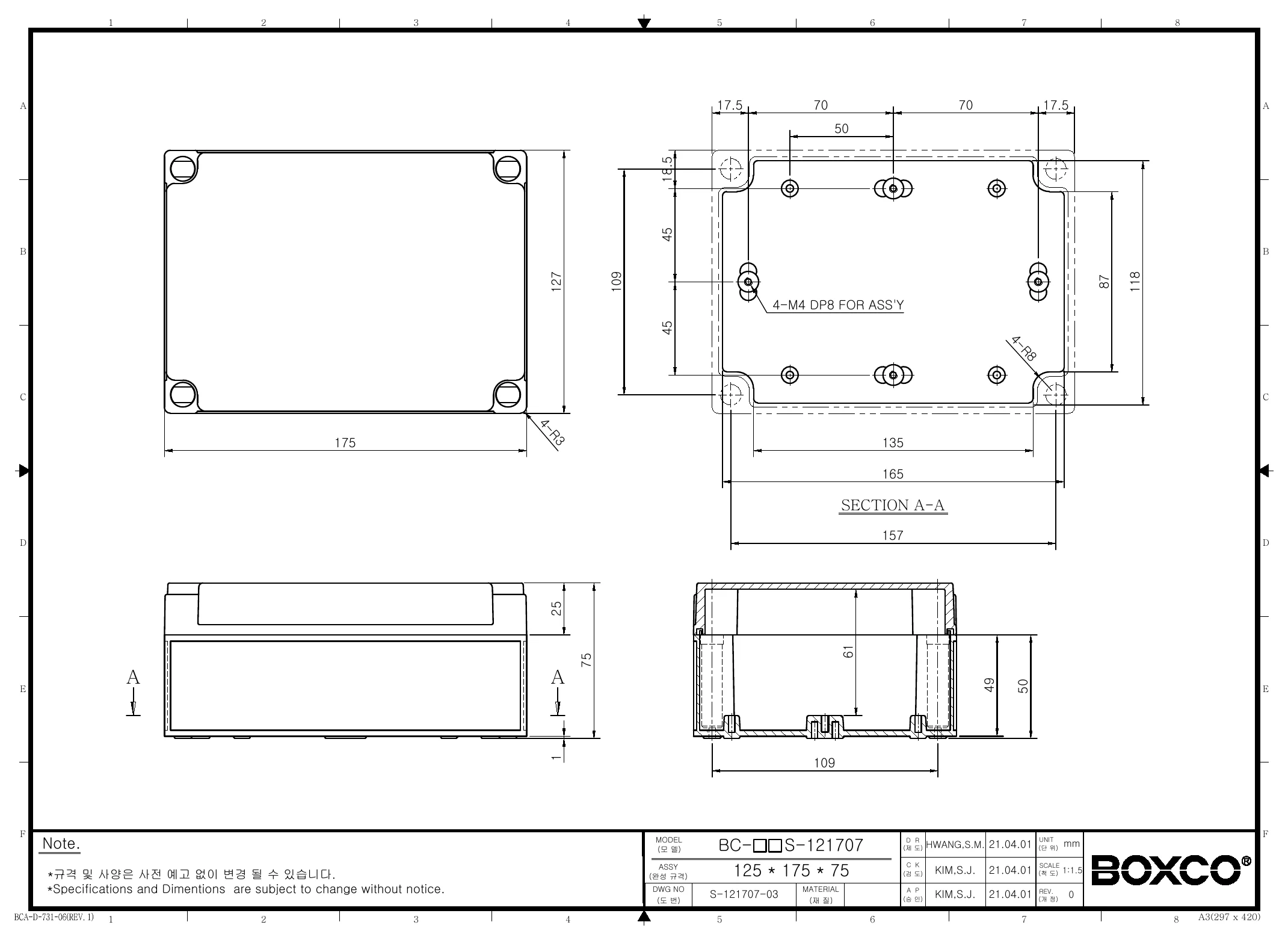

BC-AGS-121707 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 125x175x75mm plastic enclosure suited for?

This enclosure is suited for protecting electronic and control components in industrial and commercial environments where dust and water resistance matter. Its ABS construction, IP67 rating, and IK08 impact resistance make it a practical choice for indoor use and many outdoor applications.

Is this enclosure suitable for outdoor environments?

Yes, this model is designed with an ultraviolet stabilizer to help protect the enclosure during outdoor use. The product description notes that only minor color changes are expected even after long-term exposure.

What are the key environmental and durability ratings for this enclosure?

This model is rated IP67 for protection against dust and water ingress and IK08 for impact resistance. It is specified for operating temperatures from -40 degrees C to 70 degrees C, which supports use in a wide range of demanding conditions.

What material is this Boxco enclosure made from?

This enclosure is made from ABS plastic and includes anti-static material to help protect sensitive electronic instruments from static electricity. The housing is also described as high impact resistant for better durability during use and processing.

How large is this enclosure, and what does that mean for product selection?

This Boxco S-Series model measures 4.92 x 6.89 x 2.95 inches, or 125 x 175 x 75 mm. Buyers typically choose this size when they need a compact enclosure with enough internal space for protected components while keeping the overall footprint manageable.

Does this enclosure support mounting internal components securely?

Yes, the enclosure includes internal mounting plate attachment points with brass inserted injection molding to support heavier installed equipment. It also features pre-molded mounting screw nuts for securing compatible internal hardware such as DIN rail accessories.
