Boxco

Boxco S-Series 125x175x75mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-121707
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATS-121707 is a 125×175×75 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-121707Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
125×175×75 mm (4.92×6.89×2.95 in)
Mounting plate dimension M1 × M2
110 × 160 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1217 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

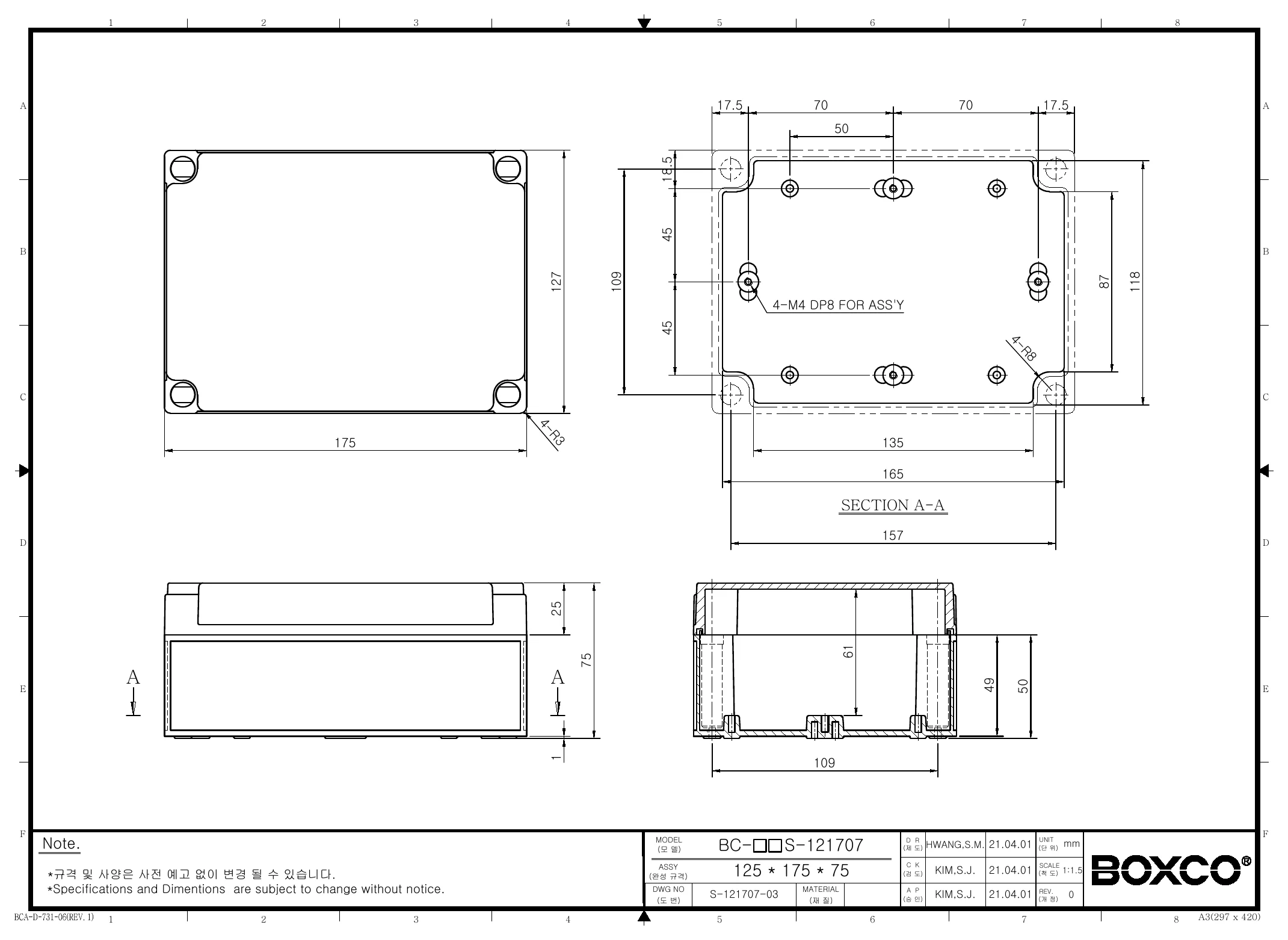

Technical drawings

BC-ATS-121707 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main dimensions of this Boxco S-Series enclosure?

This model measures 4.92 x 6.89 x 2.95 inches, which corresponds to 125 x 175 x 75 mm. It is sized as a compact-to-medium plastic enclosure for protecting internal components while still allowing room for mounting hardware and equipment.

Is this enclosure suitable for outdoor or washdown environments?

This enclosure is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The description also notes an ultraviolet stabilizer for outdoor use, helping reduce visible color change over time.

How durable is this enclosure against impact?

This model is rated IK08 for impact resistance and is made from high impact resistant ABS. Boxco also describes the material as designed to resist breakage during hole and press processing, which supports use in more demanding industrial settings.

What kind of equipment is this enclosure a good fit for?

It is suited for housing sensitive electronic instruments and other components that need dust and water protection in a compact enclosure. The anti-static material and internal mounting features make it a practical choice for control, monitoring, and protection applications where durable housing matters.

Does this enclosure support internal mounting hardware?

Yes. It includes internal mounting plate attachment points with brass inserted injection molding, and it also has pre-molded mounting screw nuts for securing DIN rail or other internal equipment. Those features make it easier to support heavier internal assemblies than a plain empty box.

What is the temperature range for this enclosure?

The stated operating range is -40 °C to 70 °C. That makes this model suitable for a wide range of indoor and outdoor industrial environments, provided the installed components also meet the same temperature requirements.
