Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 140x170x95mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-141709
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-141709 is a 143×173×95 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-141709Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
143×173×95 mm (5.63×6.81×3.74 in)
Mounting plate dimension M1 × M2
126 × 156 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1417 P (Plastic, P type), 1417 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

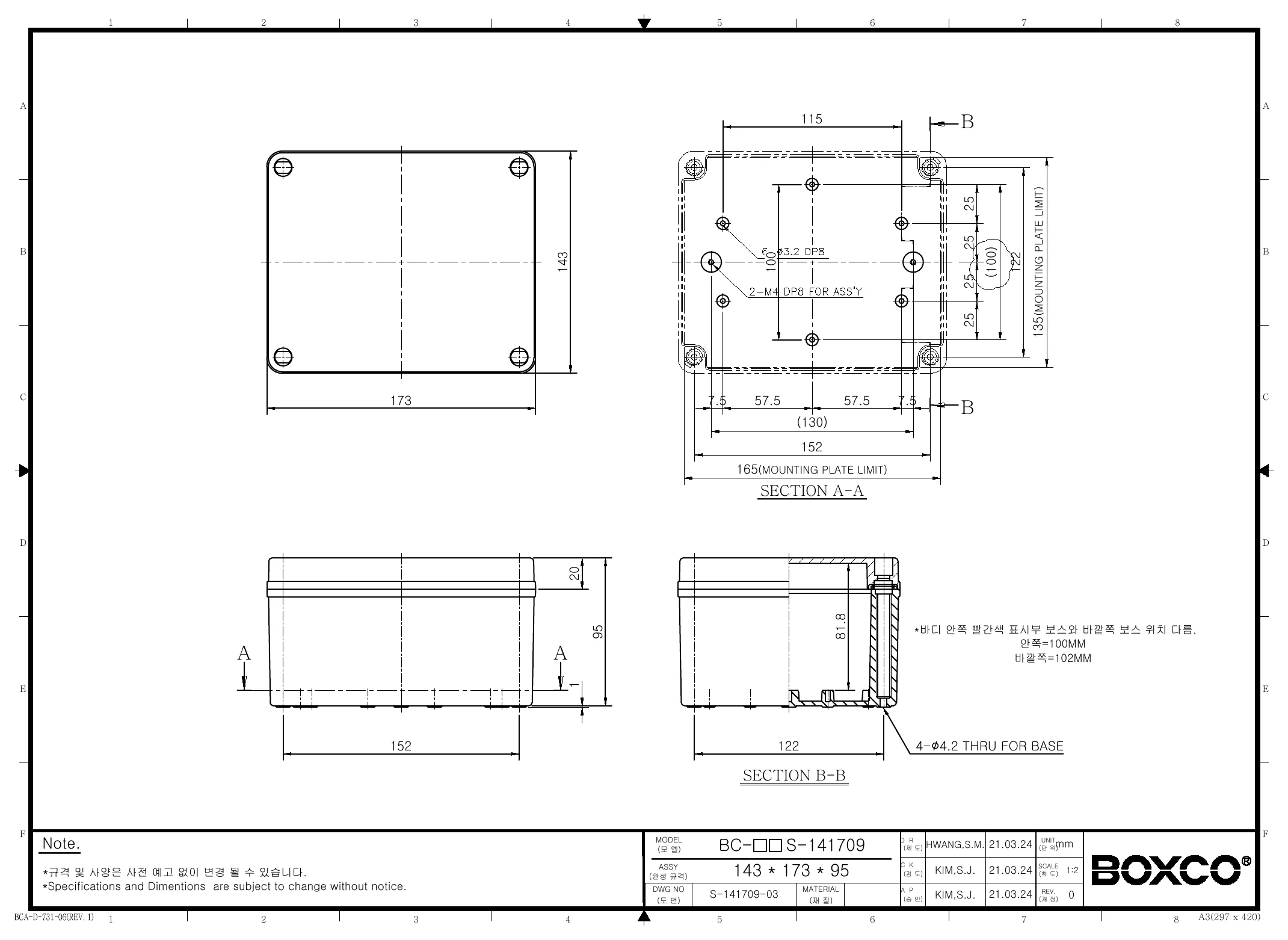

Technical drawings

BC-ATS-141709 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure typically used for?

This enclosure is designed to protect electrical or electronic components that need a sealed plastic housing in industrial or outdoor environments. Its anti-static material also makes it a practical choice for applications involving sensitive electronic instruments.

Is this enclosure suitable for outdoor use?

Yes. Boxco adds an ultraviolet stabilizer to the S-Series to help protect the enclosure during outdoor use and reduce visible color change over time. Its IP67 rating also supports strong resistance to dust and water ingress.

What protection ratings does this model have?

This model is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. The housing is made from high-impact ABS, which helps it withstand external impact and resist breakage during processing.

Does the transparent cover make this enclosure different from standard opaque versions?

Yes. The transparent cover allows visibility into the enclosure without changing the core protection features of this screw-type model. That can be useful when internal indicators or components need to be viewed while the enclosure remains closed.

What is the operating temperature range for this enclosure?

This enclosure is specified for temperatures from -40 degrees C to 70 degrees C. That range makes it suitable for many industrial and outdoor conditions where both low-temperature and moderate heat performance matter.

What are the main size and material specifications for this model?

This Boxco S-Series enclosure measures 5.51 x 6.69 x 3.74 inches, which corresponds to 140 x 170 x 95 mm. It is made from ABS and has a listed weight of 0.436 kg.

What internal mounting features does this enclosure include?

This model includes internal mounting plate attachment points with brass-inserted injection molding for securing heavier internal equipment. It also has pre-molded mounting screw nuts that support adding DIN rail or other internal hardware.
