Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 150x200x100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-152010
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATS-152010 is a 150×200×100 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-152010Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×200×100 mm (5.91×7.87×3.94 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

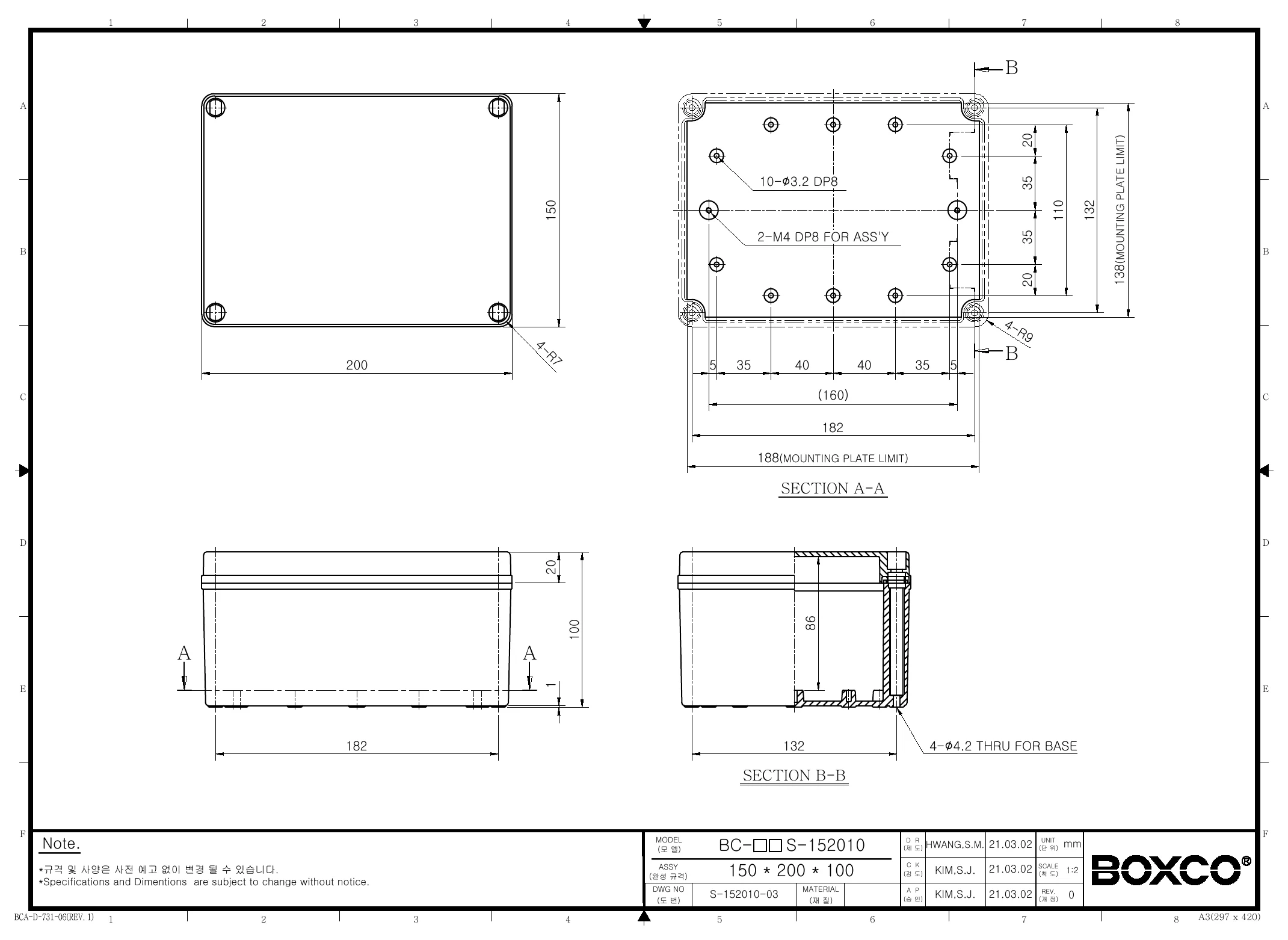

BC-ATS-152010 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-ATS-152010 enclosure best suited for?

This enclosure is suited for protecting electronic equipment in industrial and outdoor environments where dust, water resistance, and impact resistance matter. Its anti-static material also makes it a practical choice for housing sensitive electronic instruments.

Is the BC-ATS-152010 suitable for outdoor use?

Yes. Boxco states that this S-Series enclosure includes an ultraviolet stabilizer to support outdoor usage and reduce visible color change over time. It is also rated IP67, which helps protect against dust and water ingress in demanding environments.

What are the main specifications of this plastic enclosure?

This model measures 5.91 x 7.87 x 3.94 inches (150 x 200 x 100 mm) and weighs 0.512 kg. It is made from ABS, has a transparent cover, uses a screw-type closure, carries IP67 and IK08 ratings, and is rated for temperatures from -40°C to 70°C.

Does this enclosure support internal mounting components?

Yes. The enclosure includes internal mounting plate attachment points with brass inserted injection molding so a mounting plate can be secured firmly. It also includes pre-molded mounting screw nuts for attaching compatible internal hardware such as DIN rail accessories.

How does this model help protect equipment in harsh environments?

The BC-ATS-152010 combines an IP67 sealing level with a gasket manufactured for waterproof and dust-proof performance. It also uses high impact resistant material and carries an IK08 impact rating for added protection against external impact.

What distinguishes this Boxco S-Series enclosure from a basic general-purpose plastic box?

This model is built for more demanding use than a basic utility box because it combines IP67 water and dust protection, IK08 impact resistance, and UV-stabilized ABS material. It also includes a transparent cover and molded internal mounting features that support equipment protection and organized enclosure builds.
