Boxco

Boxco S-Series 150x200x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-152016
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-152016 is a 150×200×160 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-152016Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×200×160 mm (5.91×7.87×6.30 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

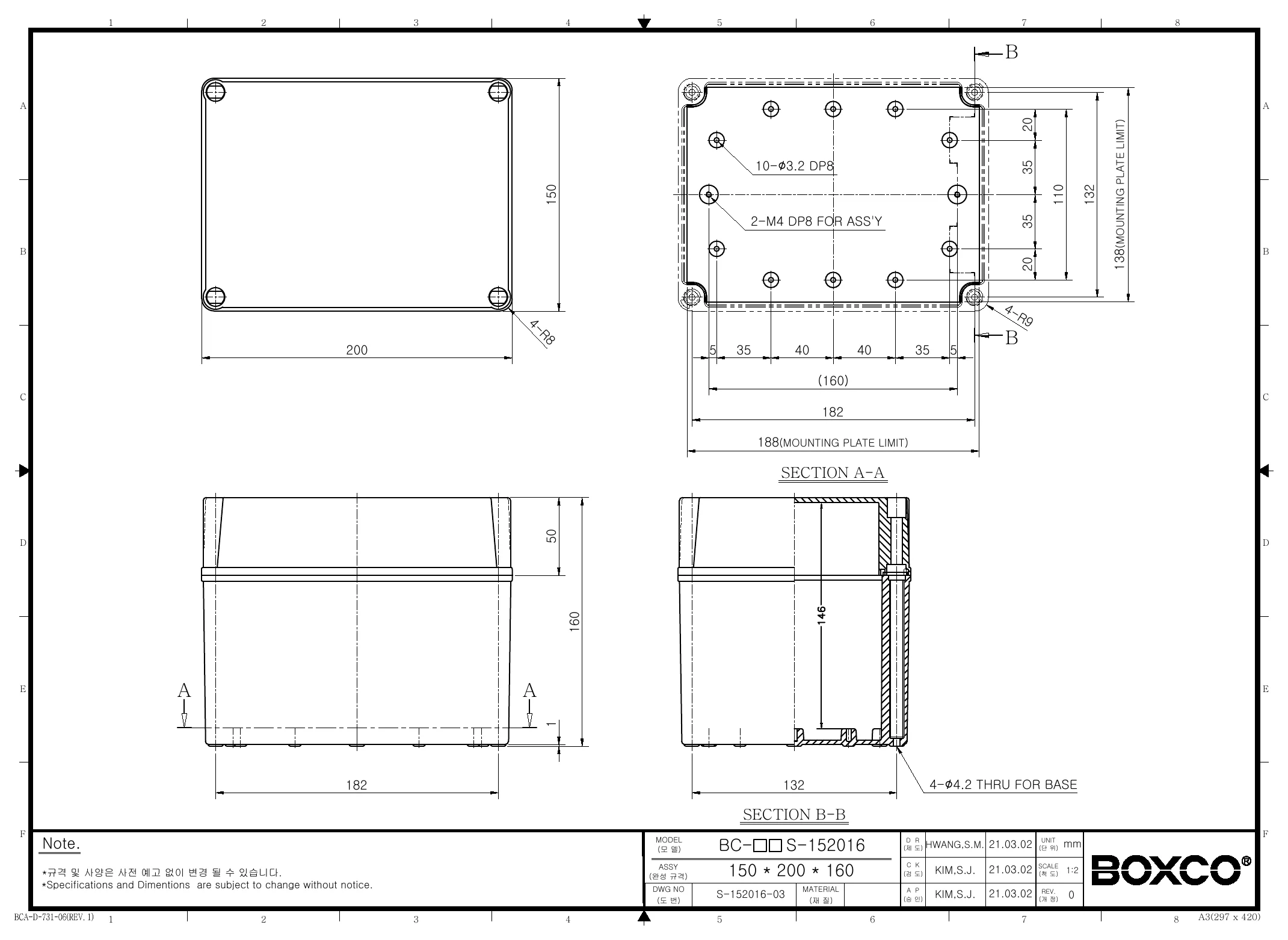

BC-AGS-152016 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure typically used for?

This enclosure is used to protect electrical or electronic components in industrial and commercial applications where a sealed plastic housing is needed. Its internal mounting features and impact-resistant ABS construction make it suitable for control, monitoring, or instrument protection in indoor or outdoor settings.

Is this enclosure suitable for outdoor environments?

Yes, this model is designed for outdoor use. The product description states that an ultraviolet stabilizer is added to help protect the enclosure outdoors and reduce visible color change over time.

How well does this enclosure resist water, dust, and impact?

This model is rated IP67 and IK08. That means it is built for strong protection against dust and water ingress as well as solid resistance to external mechanical impact for a plastic enclosure.

What are the dimensions of this enclosure?

The enclosure measures 5.91 x 7.87 x 6.3 inches, which is 150 x 200 x 160 mm. This size can be useful when planning internal component space or comparing enclosure options within the Boxco S-Series.

What material is this enclosure made from?

This model is made from ABS and has a grey cover. The description also notes high impact resistance and anti-static material properties intended to help protect sensitive electronic instruments from static electricity.

What internal mounting features does this enclosure include?

The product description highlights internal mounting plate attachment points and pre-molded mounting screw nuts. These features help support mounting plates, DIN rail, or other internal equipment more securely inside the enclosure.

What temperature range is this enclosure rated for?

This Boxco S-Series enclosure is rated for temperatures from -40 degrees C to 70 degrees C. That range makes it suitable for environments with both low and moderately high operating temperatures.
