Boxco

Boxco S-Series 150x250x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-152513
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-152513 is a 150×250×130 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-152513Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×250×130 mm (5.91×9.84×5.12 in)
Mounting plate dimension M1 × M2
129 × 229 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1525 G (Plastic, G type), 1525 P (Plastic, P type), 1525 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

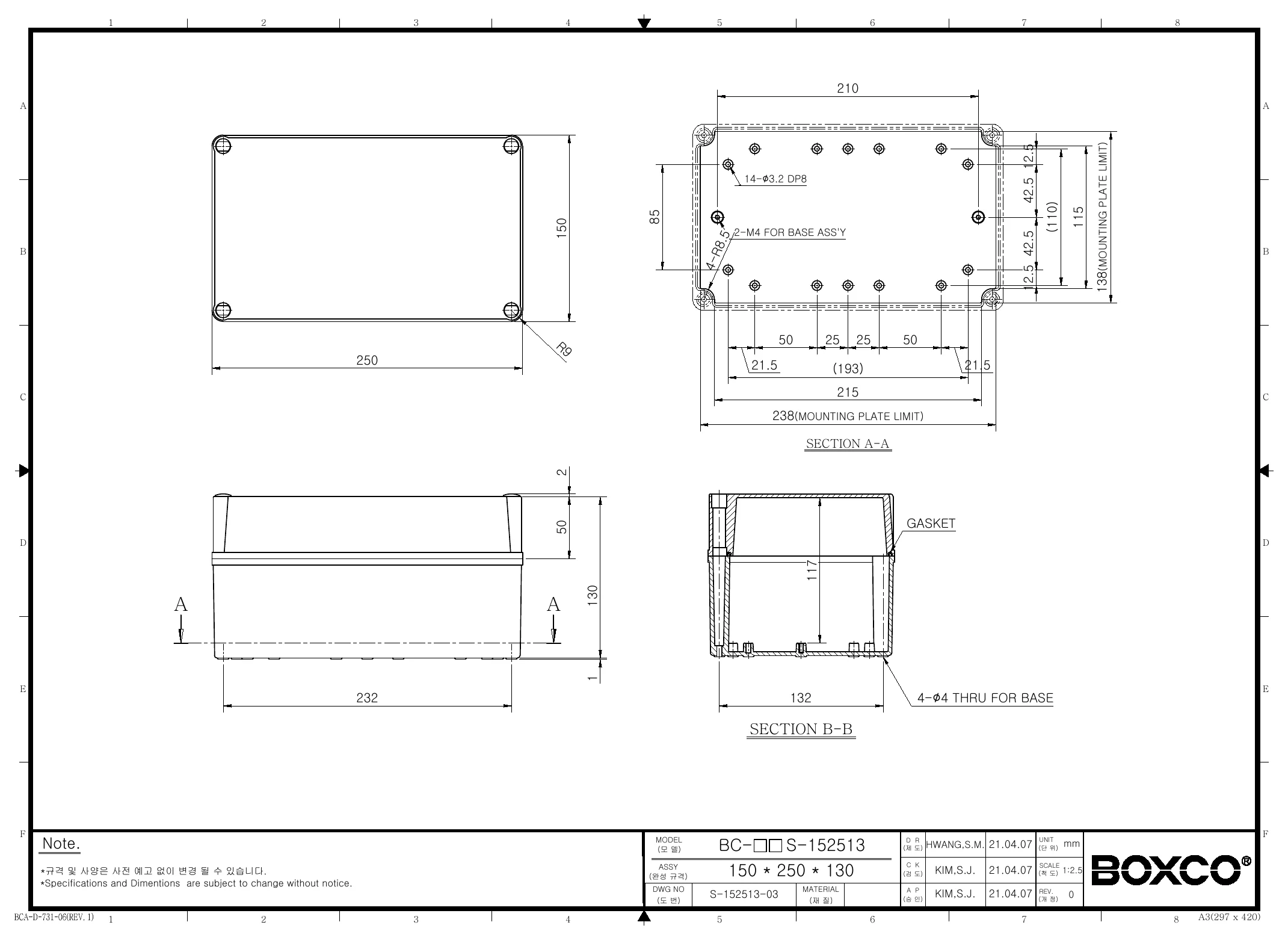

Technical drawings

BC-AGS-152513 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key specifications of the Boxco S-Series BC-AGS-152513 enclosure?

This model is a plastic enclosure made from ABS with a grey cover and screw-type closure. Its external size is 5.91 x 9.84 x 5.12 inches (150 x 250 x 130 mm), and it is rated IP67 and IK08. The listed operating temperature range is -40 C to 70 C, and the enclosure weight is 0.696 kg.

Is the BC-AGS-152513 suitable for outdoor use?

Yes, this Boxco S-Series enclosure is described as having an ultraviolet stabilizer added for outdoor usage. The product description notes that only minor color change is expected even after long-term use. Its IP67 rating also supports use where strong protection against dust and water ingress is required.

What kind of applications is this enclosure commonly suited for?

This model is intended for housing electrical or electronic equipment that needs a durable non-metallic protective box. It is especially relevant for outdoor or industrial environments where dust protection, water resistance, and impact resistance matter. The anti-static material also makes it a fit for protecting sensitive electronic instruments.

Does the BC-AGS-152513 support mounting internal components securely?

Yes, the enclosure includes internal mounting plate attachment points designed to hold a mounting plate tightly using brass inserted injection molding. The product description also states that it has pre-molded mounting screw nuts, which can be used to secure DIN rail or other internal equipment. That makes it better suited to heavier internal assemblies than a plain empty box.

How does this enclosure help protect against impact and static-sensitive equipment?

The enclosure is described as being made from high impact resistant material and carries an IK08 impact rating. Boxco also states that anti-static material is used to help protect sensitive electronic instruments from static electricity. This combination makes the model suitable where both physical durability and static control are important considerations.

What distinguishes this Boxco S-Series screw-type enclosure from a basic plastic enclosure?

This model combines several built-in design features that go beyond a basic empty box, including a gasket for waterproof and dust-proof performance, molded cover bolt threads for strength, and internal mounting support points. It also adds UV stabilization for outdoor exposure and anti-static material for sensitive electronics. Those details make it a more specialized enclosure for demanding commercial or industrial use.
