Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 160x160x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-161607
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-161607 is a 160×160×70 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-161607Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×160×70 mm (6.30×6.30×2.76 in)
Mounting plate dimension M1 × M2
144 × 144 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1616 P (Plastic, P type), 1616 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

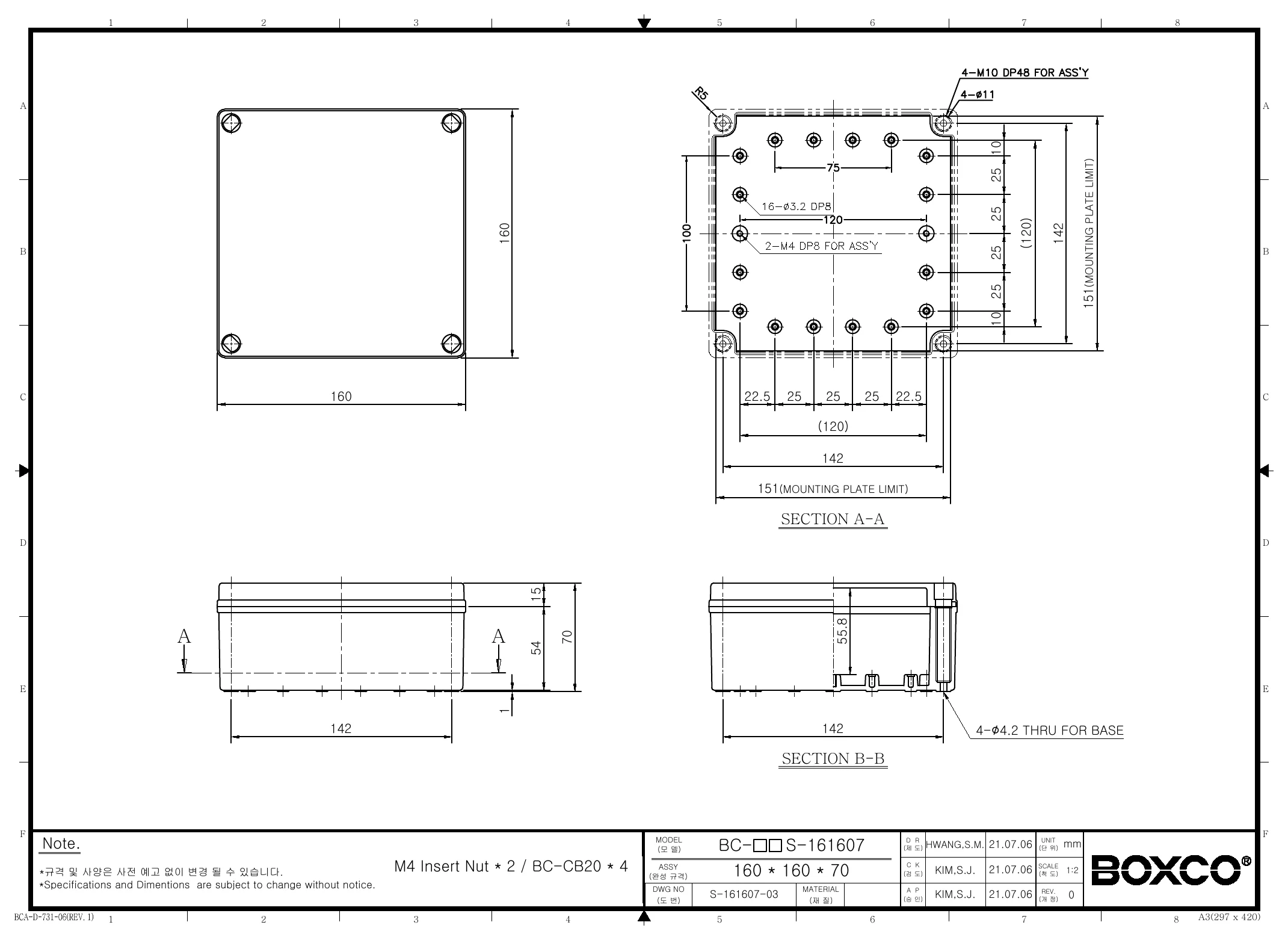

Technical drawings

BC-AGS-161607 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the size of the Boxco S-Series BC-AGS-161607 enclosure?

This model measures 6.3 x 6.3 x 2.76 inches, which is 160 x 160 x 70 mm. It is a compact plastic enclosure sized for protecting equipment in applications that need a sealed housing rather than an oversized cabinet.

Is the BC-AGS-161607 suitable for outdoor or washdown environments?

This enclosure is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The description also notes an ultraviolet stabilizer for outdoor use, helping reduce visible color change over time.

How durable is this plastic enclosure against impact?

The BC-AGS-161607 has an IK08 impact rating and is made from high impact resistant ABS. Boxco also describes the material as resistant to breakage during hole and press processing, which supports use in demanding industrial settings.

What types of equipment is this enclosure designed to accommodate internally?

This model includes internal mounting plate attachment points and pre-molded mounting screw nuts for securing components inside the box. Those features make it a practical choice when you need to mount internal hardware such as control or protection devices without relying on a bare empty shell.

What operating temperature range does this enclosure support?

The specified operating temperature range is -40 degrees C to 70 degrees C. That range makes this model suitable for applications exposed to both low ambient temperatures and moderately elevated heat.

What distinguishes this screw-type Boxco enclosure from a basic plastic box?

This model combines a screw-type cover, IP67 sealing, IK08 impact resistance, UV-stabilized ABS, and molded internal mounting features in one enclosure. It is designed as a higher-spec protective housing for industrial or commercial use rather than a simple general-purpose plastic box.
