Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 160x160x70mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-161607
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-161607 is a 160×160×70 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-161607Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×160×70 mm (6.30×6.30×2.76 in)
Mounting plate dimension M1 × M2
144 × 144 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1616 P (Plastic, P type), 1616 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

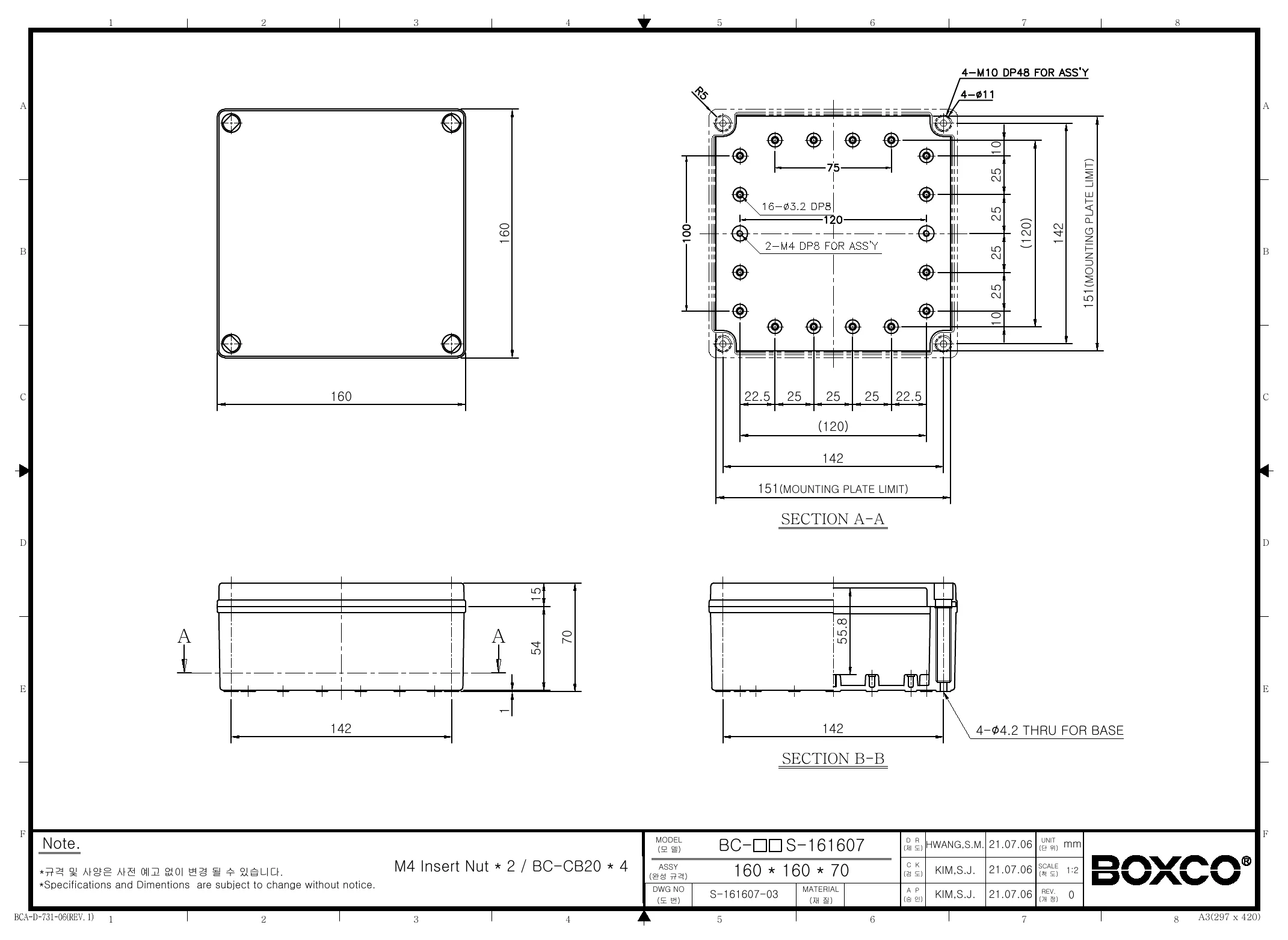

BC-ATS-161607 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure typically used for?

This model is suited to protecting electronic controls, instrumentation, and other housed components that need a sealed plastic enclosure. Its anti-static ABS construction and transparent screw-type cover make it a practical choice for applications where equipment protection and visual inspection are both important.

Is this enclosure suitable for outdoor or washdown environments?

Yes, this enclosure is designed for demanding environments with an IP67 rating for dust-tight and water-resistant protection. The product description also notes UV stabilizer in the Boxco S-Series material, which helps reduce visible color change over long-term outdoor use.

What are the dimensions of this enclosure?

This Boxco enclosure measures 6.3 x 6.3 x 2.76 inches, which corresponds to 160 x 160 x 70 mm. That size gives more internal space than smaller control boxes while still remaining compact enough for many industrial and commercial equipment housings.

What material is this enclosure made from?

This model is made from ABS plastic and includes a transparent cover. The enclosure is described as high impact resistant, and the series also uses anti-static material to help protect sensitive electronic instruments from static electricity.

How durable is this enclosure against impact and harsh handling?

This enclosure is rated IK08 for impact resistance, which supports use in environments where the housing may be exposed to knocks or routine physical contact. Boxco also highlights the material's resistance to breakage during hole and press processing.

What temperature range can this enclosure handle?

This model is specified for use from -40 C to 70 C. That operating range makes it suitable for many indoor and outdoor industrial environments, provided the rest of the installed equipment is also rated for those conditions.

What features help with mounting equipment inside the enclosure?

This enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. Those built-in features support secure installation of internal hardware such as mounting plates or DIN rail related components without relying on a plain empty shell.
