Boxco S-Series 190x190x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-191913
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-191913 is a 190×190×130 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-AGS-191913Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×190×130 mm (7.48×7.48×5.12 in)
Mounting plate dimension M1 × M2
159 × 159 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1919 P (Plastic, P type), 1919 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

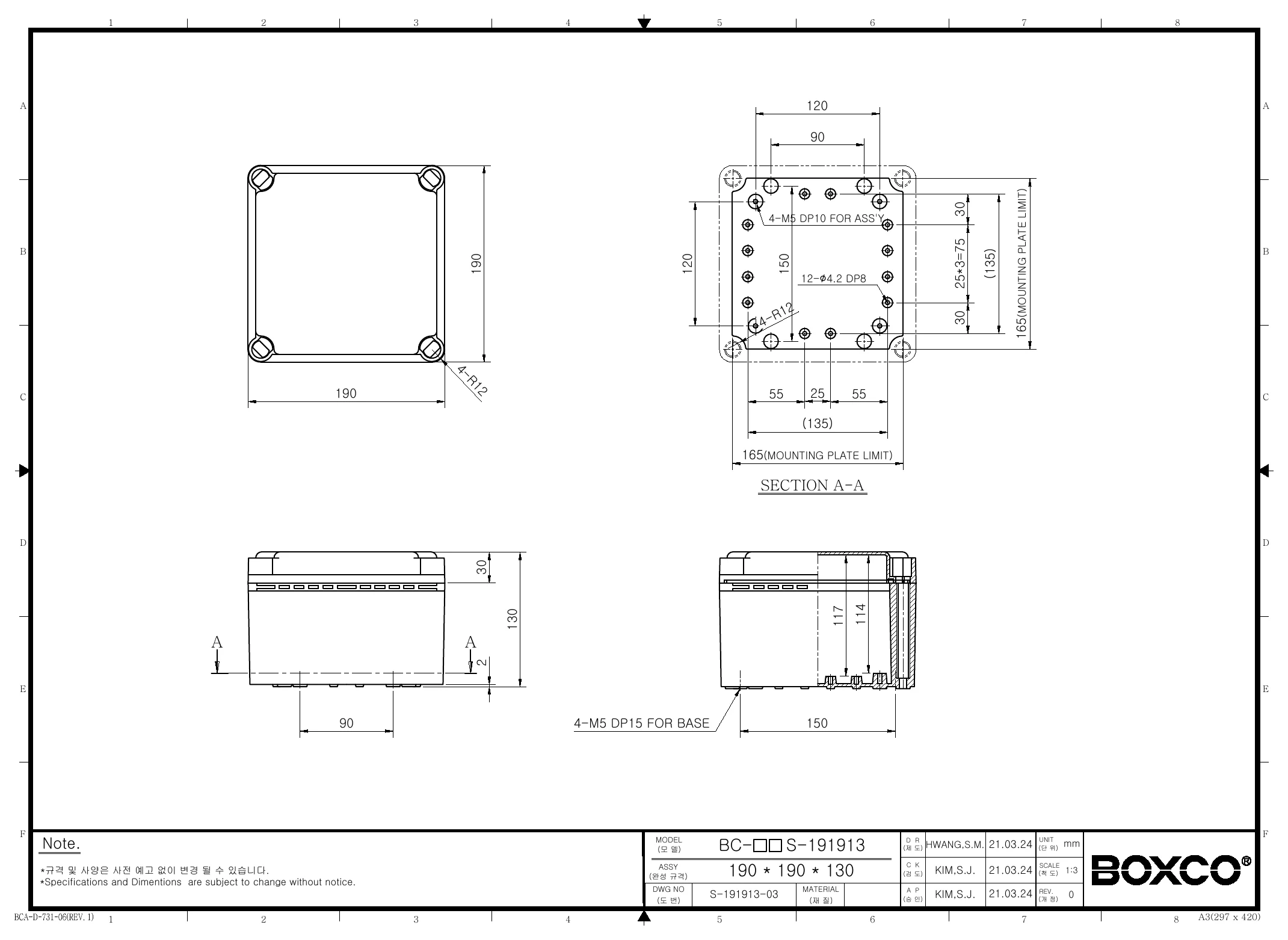

Technical drawings

BC-AGS-191913 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco S-Series BC-AGS-191913 enclosure?

This model is a screw-type plastic enclosure with overall dimensions of 7.48 x 7.48 x 5.12 inches (190 x 190 x 130 mm). It has an IP67 ingress protection rating, IK08 impact rating, ABS construction, a grey cover, and a listed weight of 0.726 kg.

Is this enclosure suitable for outdoor or washdown-prone environments?

It is designed for demanding environments where strong dust and water protection are important, as indicated by its IP67 rating. The product description also states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 degrees C to 70 degrees C. That makes it suitable for both cold and moderately hot industrial or outdoor conditions within that range.

What kinds of applications is this enclosure commonly suited for?

This enclosure is intended for protecting electronic instruments and components that need a sealed, impact-resistant housing. Its anti-static material, outdoor-focused stabilizer, and IP67/IK08 ratings make it a practical choice for industrial control, instrumentation, and general equipment protection applications.

Does this model support internal mounting hardware or equipment plates?

Yes. The product description states that it includes internal mounting plate attachment points with brass inserted injection molding for securely holding heavier internal equipment, and it also has pre-molded mounting screw nuts for fixing DIN rail or other equipment inside the enclosure.

How does the ABS construction benefit this enclosure compared with lighter-duty plastic housings?

This model uses high impact resistant ABS and is specifically described as strong against external impact and resistant to breakage during hole and press processing. Combined with its IK08 rating, that makes it a stronger option than basic plastic enclosures where impact resistance is a concern.
