Boxco

Boxco S-Series 190x280x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-192818
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-192818 is a 190×280×180 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-AGS-192818Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×280×180 mm (7.48×11.02×7.09 in)
Mounting plate dimension M1 × M2
159 × 249 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1928 PG (Plastic, PG type), 1928 P (Plastic, P type), 1928 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

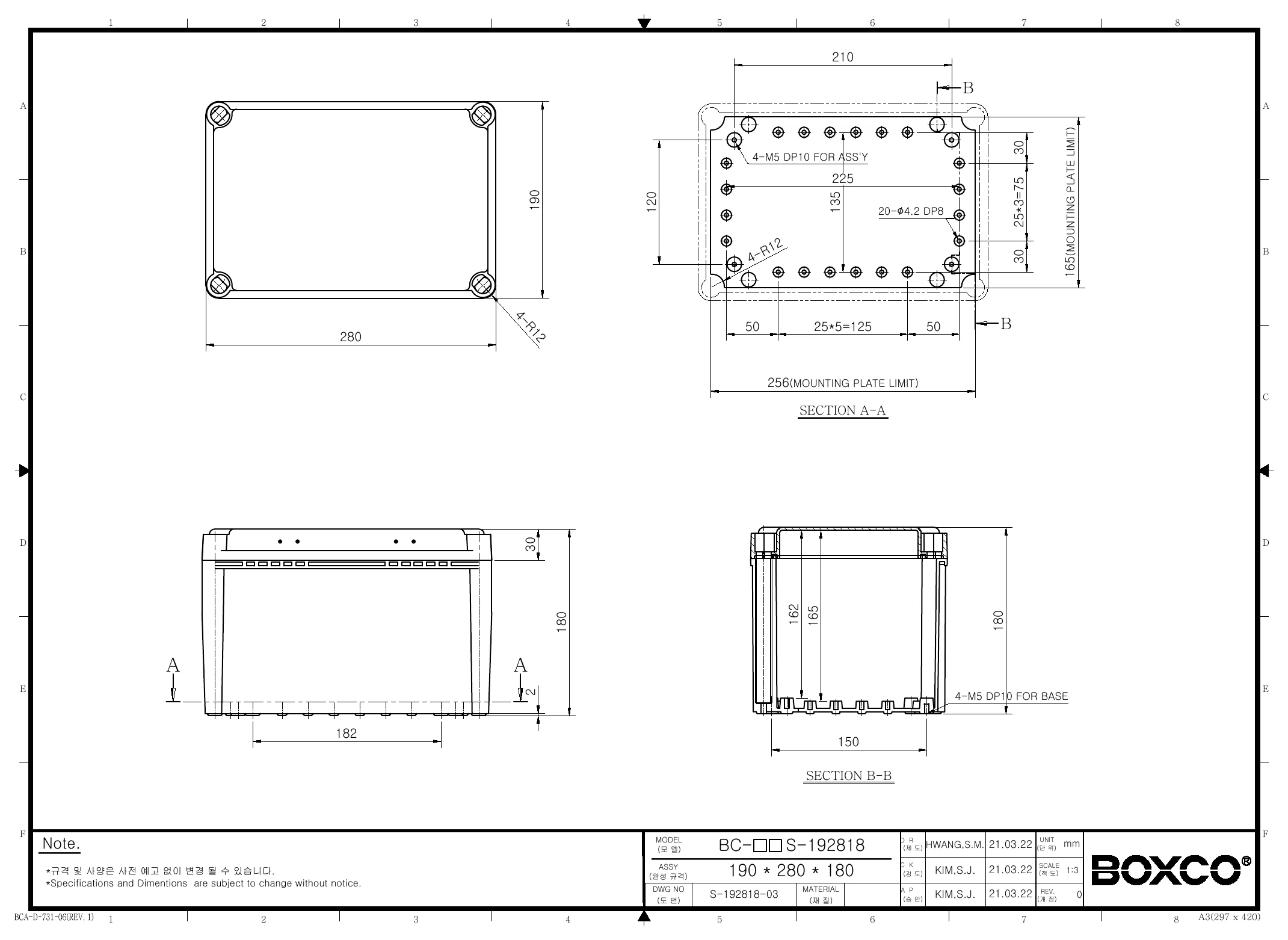

Technical drawings

BC-AGS-192818 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure best suited for?

This enclosure is designed for protecting electronic components and instruments in industrial or commercial environments where dust, moisture, and impact resistance matter. Its ABS construction, IP67 protection, and IK08 impact rating make it a practical choice for control, monitoring, and equipment housing applications, including outdoor use.

Is this plastic enclosure suitable for outdoor environments?

Yes, this model is described as having an ultraviolet stabilizer added for outdoor usage. The product description also notes that only minimal color change is expected over long-term use, helping it maintain appearance and durability in exposed environments.

What protection ratings does this enclosure have?

This model is rated IP67 and IK08. That means it is built for strong dust and water ingress protection and offers solid resistance to external impact for demanding enclosure applications.

What are the dimensions and material of this enclosure?

This Boxco S-Series enclosure measures 7.48 x 11.02 x 7.09 inches, which corresponds to 190 x 280 x 180 mm. It is made from ABS and has a grey cover in a screw-type enclosure design.

Does this enclosure support internal component mounting?

Yes, the product description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features help support secure installation of internal hardware such as mounting plates or DIN rail-based equipment inside the enclosure.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C to 70 degrees C. That range makes it suitable for a wide span of operating environments where temperature resistance is an important selection factor.
