Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 190x380x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-193818
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-193818 is a 190×380×180 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-AGS-193818Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×380×180 mm (7.48×14.96×7.09 in)
Mounting plate dimension M1 × M2
159 × 347 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1938 P (Plastic, P type), 1938 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

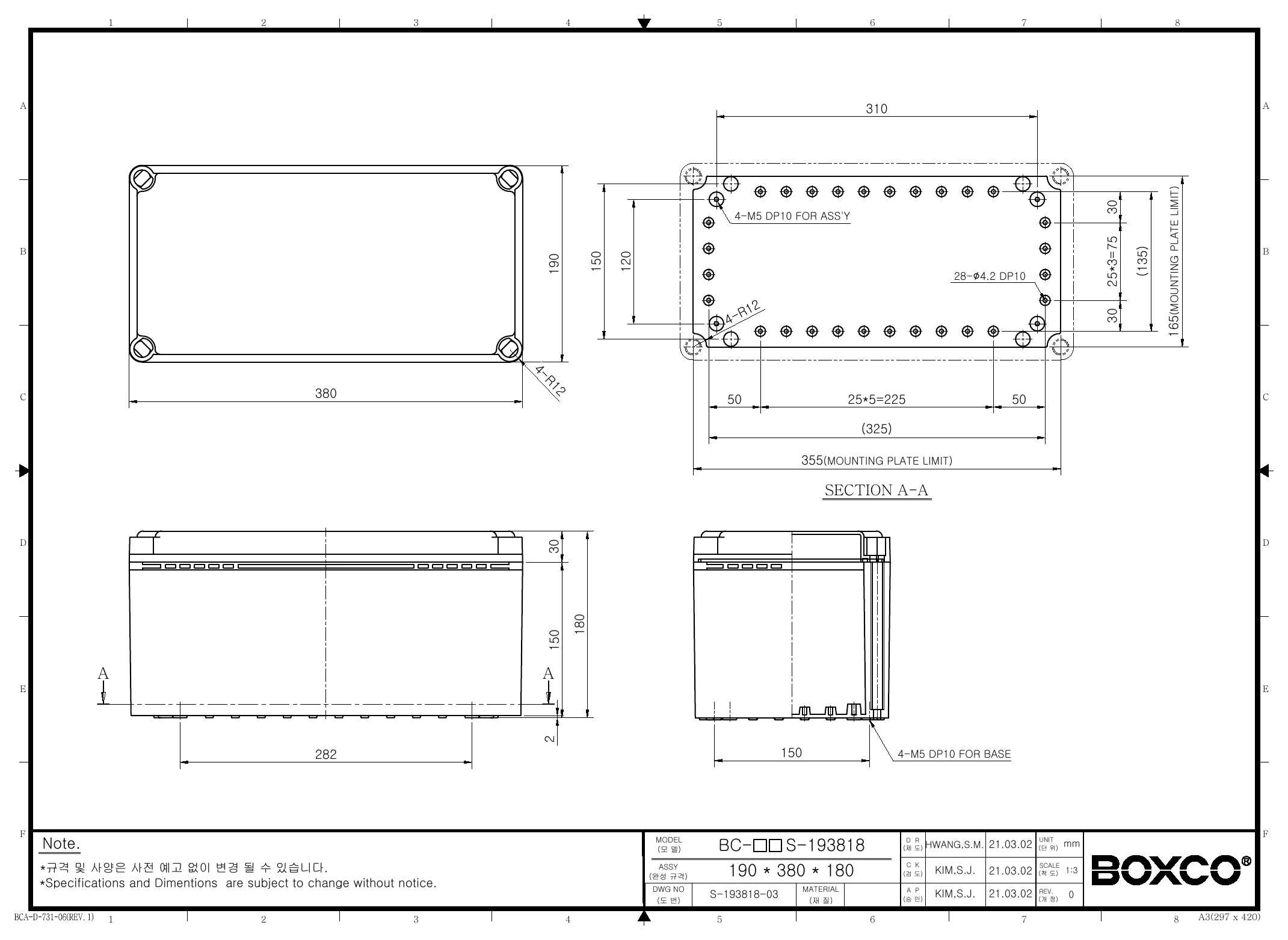

Technical drawings

BC-AGS-193818 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure suited for?

This model is intended for protecting electrical or electronic equipment that needs a sealed plastic enclosure in industrial or outdoor settings. Its IP67 rating, IK08 impact resistance, and ABS construction make it a practical choice for control, monitoring, or instrumentation housings where dust, water ingress resistance, and durability matter.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, which helps reduce visible color change over long periods of exposure. It is also rated IP67 for strong waterproof and dust-proof performance.

What are the key specifications of this enclosure?

This Boxco S-Series enclosure measures 7.48 x 14.96 x 7.09 inches, or 190 x 380 x 180 mm, and weighs 1.292 kg. It uses ABS material, has a grey cover, uses a screw-type closure, carries IP67 and IK08 ratings, and is specified for operation from -40 degrees C to 70 degrees C.

Does this enclosure help protect sensitive electronics from static electricity?

Yes. The description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model better suited for applications where electrostatic protection is a consideration.

What mounting features are built into this enclosure?

This model includes internal mounting plate attachment points designed to secure a mounting plate tightly using brass inserted injection molding. It also has pre-molded mounting screw nuts that support fastening DIN rail or other internal equipment.

How does this screw-type enclosure compare with lighter-duty plastic boxes?

This model is positioned as a more robust enclosure because it combines IP67 sealing, IK08 impact resistance, and high impact resistant ABS material. It also includes reinforced details such as molded screw threads, gasket sealing, and mounting support features that are important when the enclosure needs to protect equipment in tougher environments.

What warranty and operating temperature range does this model have?

The listed warranty period for this enclosure is 1 year. Its specified operating temperature range is -40 degrees C to 70 degrees C, which supports use across a wide range of industrial and outdoor conditions.
