Boxco S-Series 200x200x100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-202010
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATS-202010 is a 200×200×100 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-202010Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×200×100 mm (7.87×7.87×3.94 in)
Mounting plate dimension M1 × M2
179 × 179 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
2020 G (Plastic, G type), 2020 P (Plastic, P type), 2020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

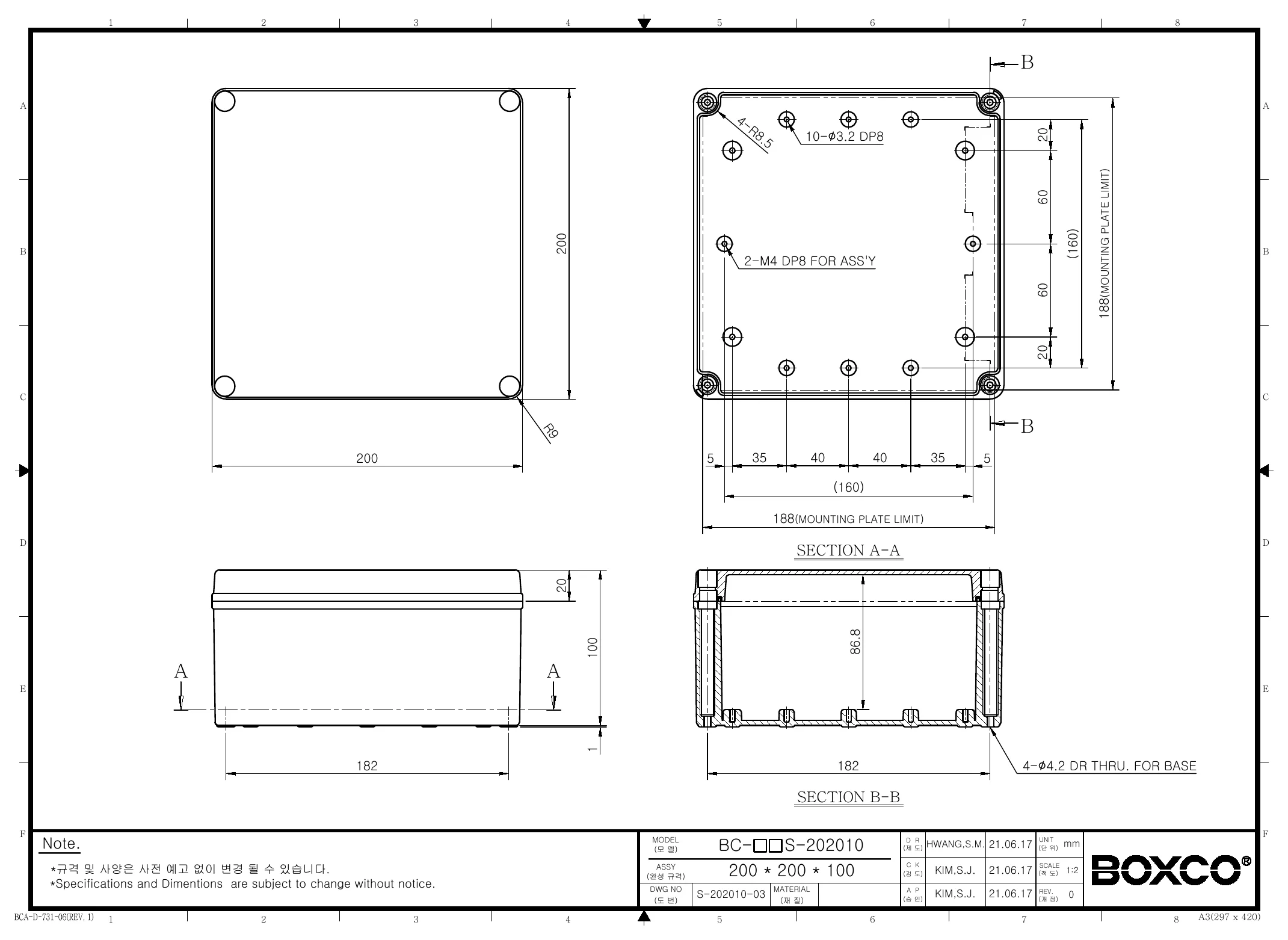

BC-ATS-202010 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure suited for?

This enclosure is intended for protecting electronic components and sensitive instruments in industrial and commercial environments. Its anti-static material, transparent cover, and heavy-duty ABS construction make it a practical choice for control, monitoring, and protection applications where visibility and enclosure strength matter.

What are the dimensions of this enclosure?

This model measures 7.87 x 7.87 x 3.94 inches, which is also listed as 200 x 200 x 100 mm. That size provides a square enclosure format with enough internal space for a range of protected equipment layouts.

Is this enclosure suitable for outdoor use?

Yes, the Boxco S-Series includes an ultraviolet stabilizer to help protect the enclosure in outdoor conditions. The product description notes that only minor color changes are expected even after long-term use.

How well does this enclosure resist water, dust, and impact?

This model is rated IP67 for protection against dust ingress and water exposure, and IK08 for impact resistance. It is also made from high-impact-resistant ABS to help withstand demanding environments.

What material is this enclosure made from, and why does that matter?

This enclosure is made from ABS plastic and uses anti-static material to help protect sensitive electronic instruments from static electricity. The housing is also designed for high impact resistance and durability during processing.

Does this model have a transparent cover?

Yes, this specific model includes a transparent cover. That makes it useful when internal components, indicators, or labels need to remain visible without opening the enclosure.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40 C to 70 C. That range supports use in both low-temperature and moderately high-temperature environments.

Are there built-in features for mounting internal equipment?

Yes, the enclosure includes mounting plate attachment points and pre-molded mounting screw nuts. These features support secure placement of internal hardware and help distinguish this model from more basic empty enclosures.
