Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 200x200x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-202013
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATS-202013 is a 200×200×130 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-202013Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×200×130 mm (7.87×7.87×5.12 in)
Mounting plate dimension M1 × M2
179 × 179 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
2020 G (Plastic, G type), 2020 P (Plastic, P type), 2020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

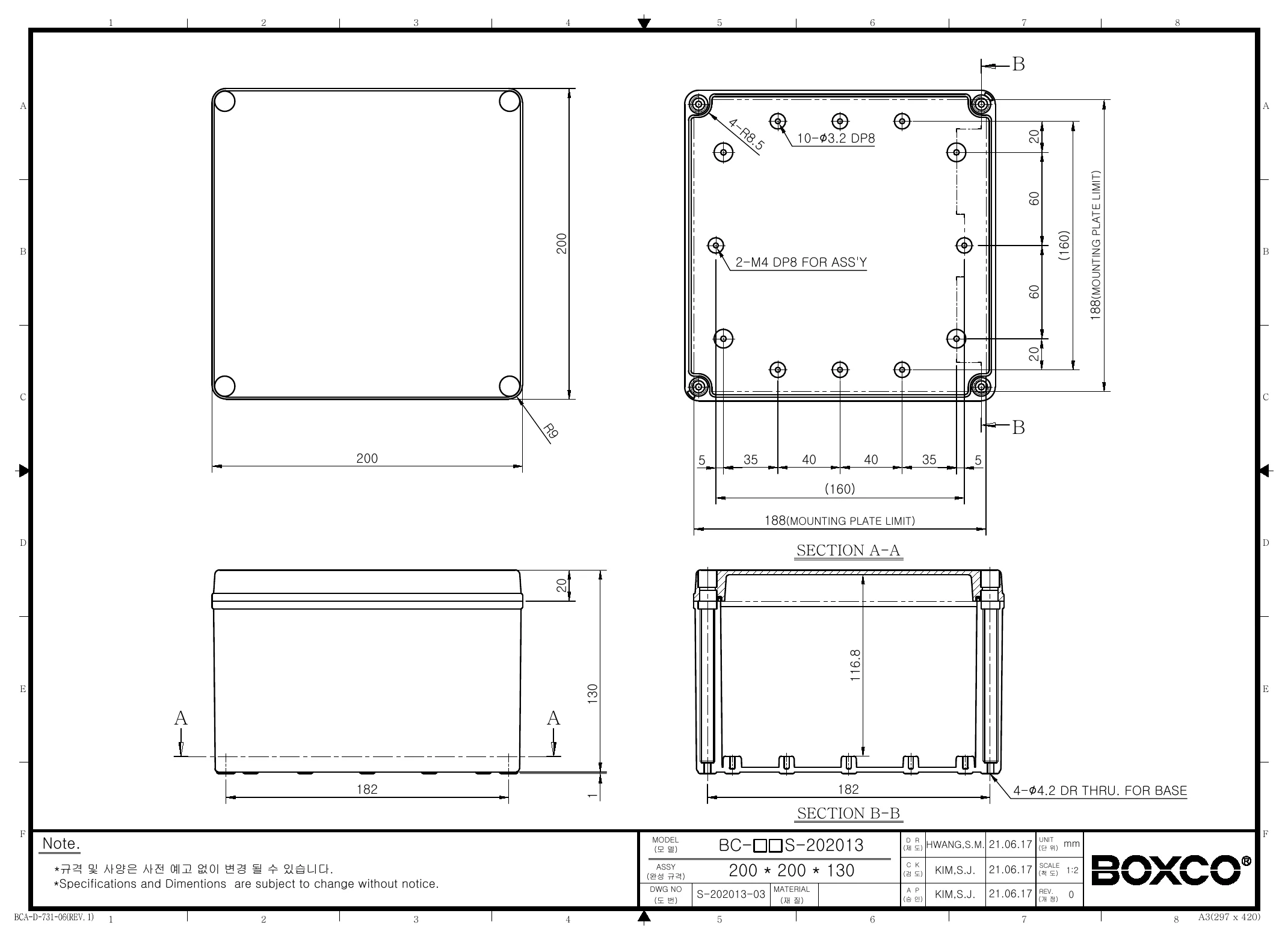

Technical drawings

BC-ATS-202013 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 200x200x130mm enclosure best suited for?

This enclosure is suited for protecting industrial and commercial electronic components that need a sealed plastic housing. Its internal space and impact-resistant ABS construction make it a practical choice for control, monitoring, and protection applications where durability and enclosure integrity matter.

Is this enclosure suitable for outdoor environments?

Yes, this model is designed for outdoor use. The S-Series includes an ultraviolet stabilizer to reduce color change over time, and its IP67 rating helps protect against dust and water ingress in exposed environments.

What level of environmental and impact protection does this enclosure provide?

This model is rated IP67 for dust-tight sealing and resistance to water ingress, and IK08 for impact resistance. It is made from high-impact ABS and includes a precision-injected gasket for strong waterproof and dust-proof performance.

What are the size and material details for this specific enclosure?

This Boxco enclosure measures 7.87 x 7.87 x 5.12 inches, which corresponds to 200 x 200 x 130 mm. It is made from ABS plastic and includes a transparent cover in a screw-type configuration.

Can this enclosure be used with sensitive electronic equipment?

Yes, the product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a strong option where added protection for electronics is important.

What temperature range can this enclosure handle?

This model is specified for use from -40 deg C to 70 deg C. That range supports use in both low-temperature and elevated-temperature environments within the stated limits.
