Boxco

Boxco S-Series 200x200x160mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-202016
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-202016 is a 200×200×160 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-202016Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×200×160 mm (7.87×7.87×6.30 in)
Mounting plate dimension M1 × M2
179 × 179 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
2020 G (Plastic, G type), 2020 P (Plastic, P type), 2020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

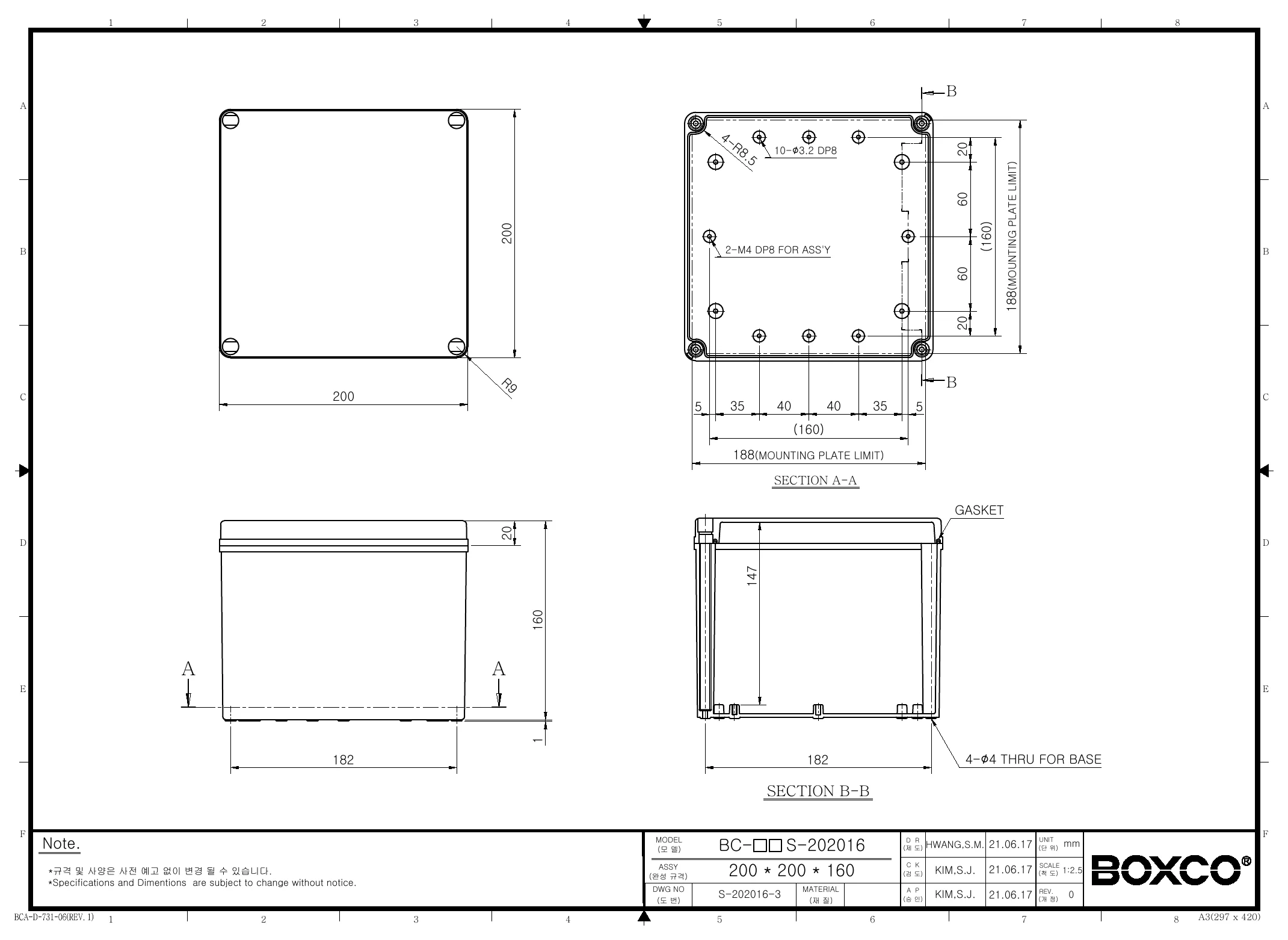

BC-ATS-202016 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-ATS-202016 enclosure suited for?

This enclosure is suited for protecting electronic controls, instrumentation, and other sensitive components in industrial and commercial environments. Its anti-static material and high-impact ABS construction make it a practical choice where equipment needs both physical protection and reduced exposure to static electricity.

Is this enclosure appropriate for outdoor or washdown environments?

This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. It also includes an ultraviolet stabilizer to help reduce color change over time in outdoor use, making it a good fit for demanding environments where weather resistance matters.

What are the key material and durability features of this enclosure?

The BC-ATS-202016 is made from ABS and has an IK08 impact rating for resistance to external impact. The product description also notes high impact resistance and a transparent cover, which helps protect internal components while allowing visual inspection without opening the enclosure.

What size is this plastic enclosure?

This Boxco S-Series enclosure measures 7.87 x 7.87 x 6.3 inches, which corresponds to 200 x 200 x 160 mm. That size makes it suitable for applications needing a mid-sized enclosure with room for internal components and accessory mounting.

Can this enclosure support internal mounting hardware or equipment plates?

Yes, the product description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to help secure mounting plates, DIN rail, or other internal equipment more firmly inside the enclosure.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C to 70 degrees C. That range supports use in both low-temperature and moderately high-temperature environments where enclosure performance needs to remain stable.
