Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 280x340x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-283413
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-283413 is a 280×340×130 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-AGS-283413Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×340×130 mm (11.02×13.39×5.12 in)
Mounting plate dimension M1 × M2
249 × 308 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2834 P (Plastic, P type), 2834S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

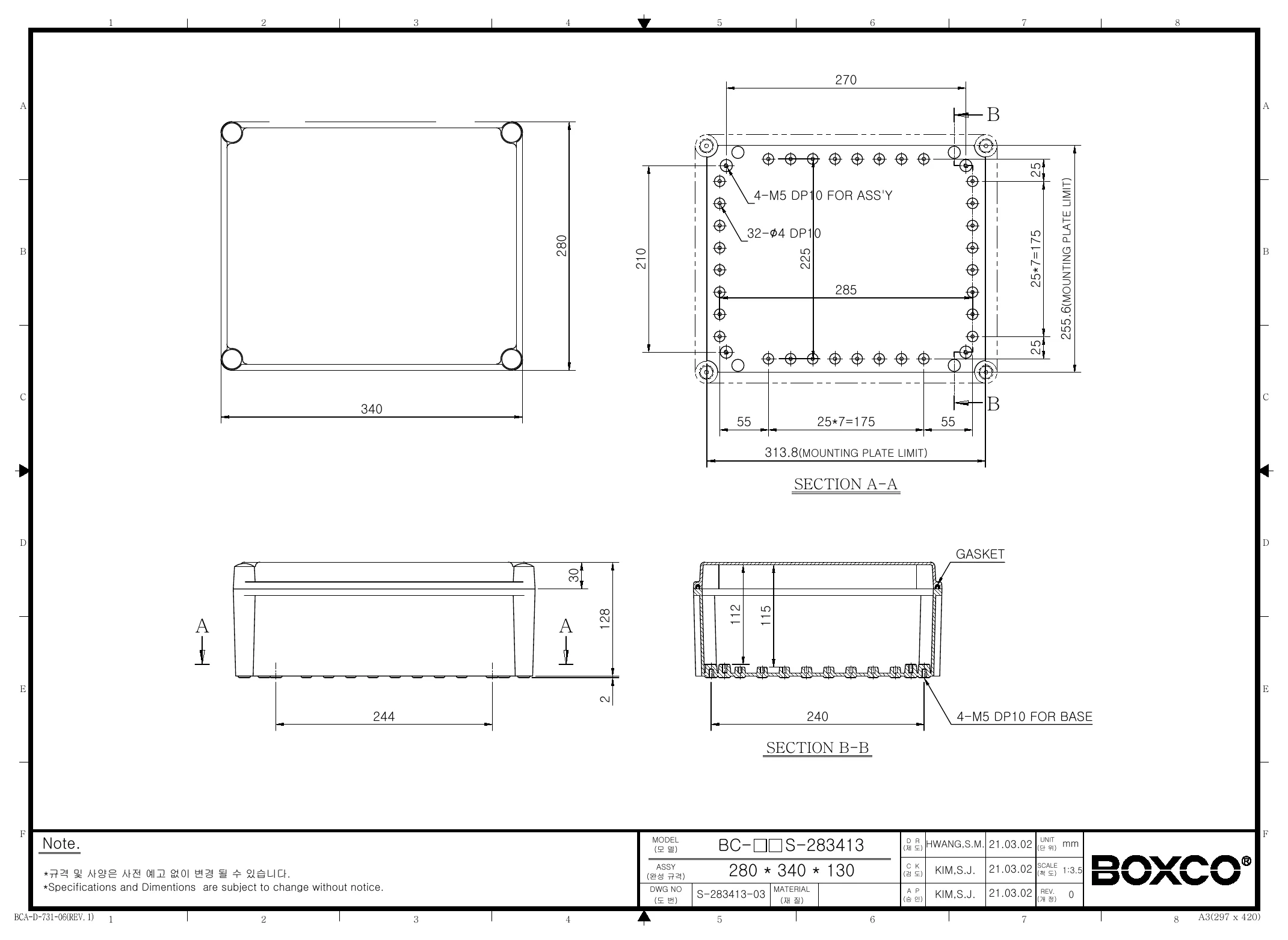

Technical drawings

BC-AGS-283413 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure used for?

This model is designed to house and protect electrical or electronic equipment in industrial and commercial applications. Its impact-resistant ABS body, sealed construction, and internal mounting features make it suitable for control, monitoring, and protection setups that need a durable non-metallic enclosure.

What are the dimensions of this enclosure?

This Boxco S-Series enclosure measures 11.02 x 13.39 x 5.12 inches, which is 280 x 340 x 130 mm. That size provides a relatively large interior for equipment that needs more room than compact junction-style boxes.

Is this enclosure suitable for outdoor environments?

Yes, this enclosure is intended for outdoor use. The product description states that an ultraviolet stabilizer is added to help reduce color change over long-term exposure, and the IP67-rated sealing helps protect against water and dust.

How durable is this plastic enclosure?

This model is made from high-impact-resistant ABS and carries an IK08 impact rating. It is built to resist external impact and is also described as helping prevent breakage during hole and press processing.

What level of environmental protection does this enclosure provide?

This enclosure is rated IP67, indicating strong protection against dust ingress and temporary water exposure. The product description also notes a precision-injected gasket designed to support waterproof and dust-proof performance.

What mounting or internal equipment support features are included?

The enclosure includes internal mounting plate attachment points with brass-inserted injection molding for securely supporting heavier installed equipment. It also has pre-molded mounting screw nuts that can be used to fix DIN rail or other internal components inside the enclosure.

What temperature range can this enclosure handle?

This Boxco S-Series model is rated for use from -40 °C to 70 °C. That operating range makes it suitable for many industrial and outdoor environments where temperature swings are a concern.
