Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 280x380x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-283813
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-283813 is a 280×380×130 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-AGS-283813Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×380×130 mm (11.02×14.96×5.12 in)
Mounting plate dimension M1 × M2
249 × 348 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2838 PG (Plastic, PG type), 2838 P (Plastic, P type), 2838 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

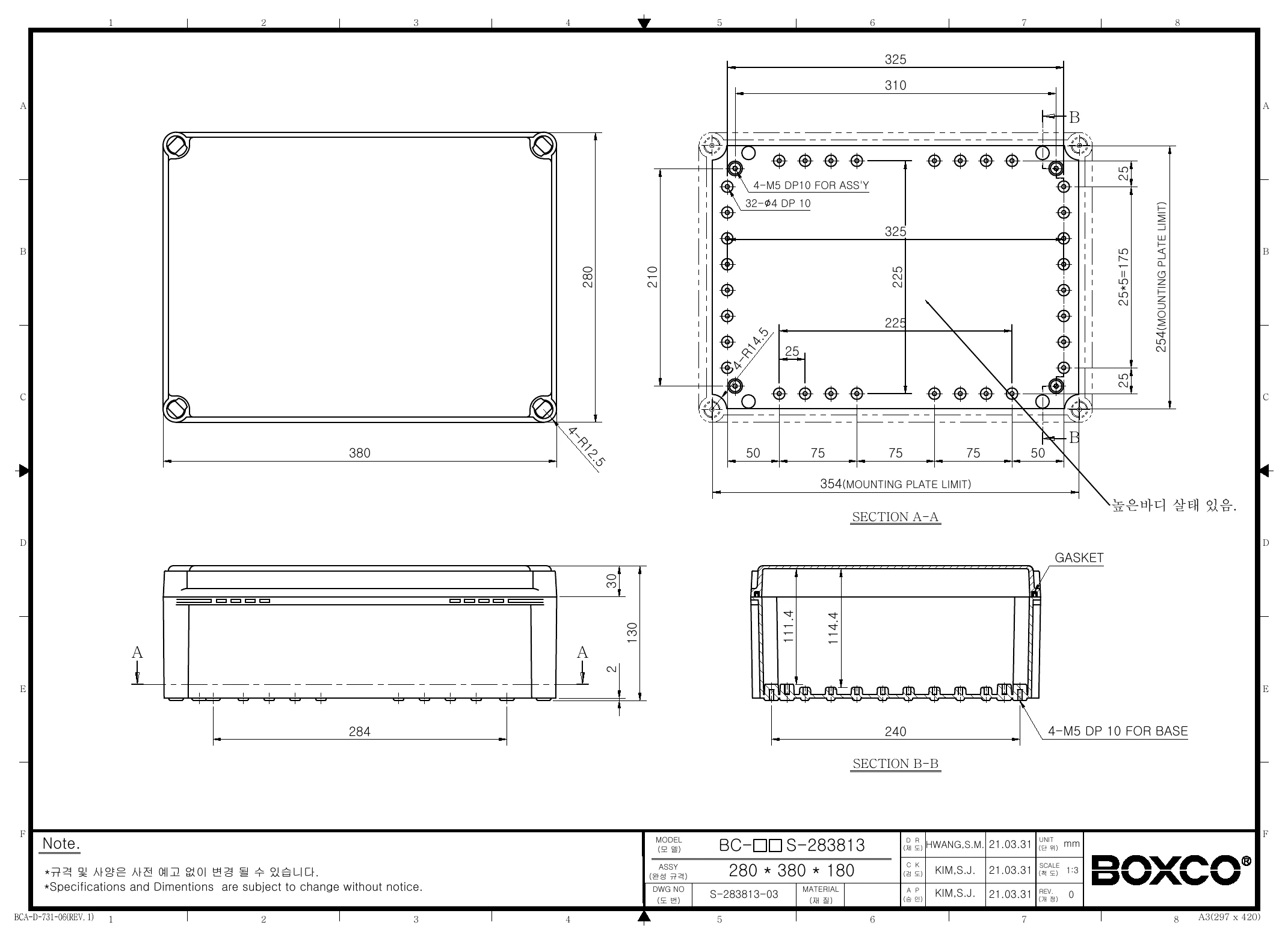

Technical drawings

BC-AGS-283813 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key specifications of the Boxco S-Series BC-AGS-283813 enclosure?

This model is a Boxco S-Series plastic enclosure with overall dimensions of 11.02 x 14.96 x 5.12 inches (280 x 380 x 130 mm). It is made from ABS, has a grey cover, uses a screw-type closure, and carries IP67 and IK08 ratings. The listed product weight is 1.448 kg.

Is this enclosure suitable for outdoor environments?

Yes, this S-Series enclosure is described as having an ultraviolet stabilizer added for outdoor usage. That helps reduce visible color change over long-term exposure. Its IP67 rating also supports use in demanding environments where dust and water resistance are important.

What kind of environmental protection does this enclosure provide?

This enclosure is rated IP67 for protection against dust ingress and water exposure, and IK08 for impact resistance. The product description also notes a precision-injected gasket designed to support waterproof and dust-proof performance. Its operating temperature range is -40°C to 70°C.

What applications is this ABS enclosure best suited for?

This model is well suited for protecting industrial or commercial electronics that need a durable non-metallic enclosure. The product description specifically mentions anti-static material for sensitive electronic instruments. Its size, impact resistance, and environmental ratings make it a practical option for indoor or outdoor control and protection applications.

Does this enclosure support internal mounting hardware or equipment plates?

Yes, the enclosure includes mounting plate attachment points so an internal mounting plate can be fixed tightly onto brass inserted injection molding. The description also states that pre-molded mounting screw nuts are provided for securing DIN rail or other equipment. These built-in features help support heavier internal components.

What makes this screw-type enclosure different from a basic plastic box?

Compared with a basic plastic enclosure, this model combines IP67 and IK08 ratings with UV-stabilized ABS and anti-static material. It also includes molded features such as cover bolt attachment points, mounting plate attachment points, and pre-molded screw nuts. Those details make it more suitable for demanding industrial enclosure applications.

What warranty is listed for this enclosure?

The listed warranty period for this model is 1 year. That applies specifically to the BC-AGS-283813 product entry provided here. Buyers with project-specific coverage requirements should still confirm final warranty terms at time of purchase.
