Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 280x380x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-283813
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATS-283813 is a 280×380×130 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-ATS-283813Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×380×130 mm (11.02×14.96×5.12 in)
Mounting plate dimension M1 × M2
249 × 348 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
2838 PG (Plastic, PG type), 2838 P (Plastic, P type), 2838 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

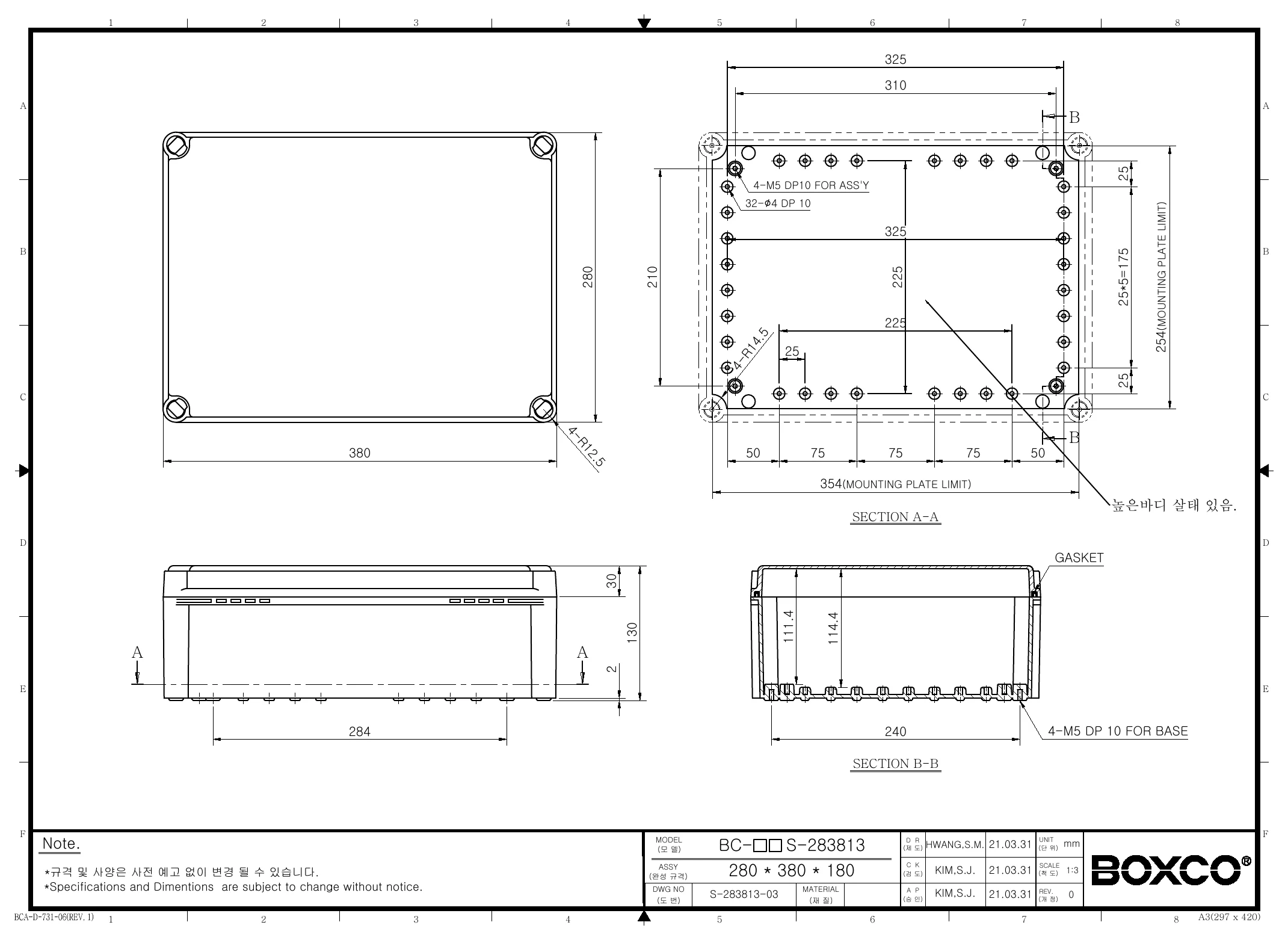

BC-ATS-283813 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure best suited for?

This model is designed for protecting electronics and control components in industrial and commercial environments where a sealed plastic enclosure is needed. Its anti-static material and high-impact ABS construction make it a practical choice for housing sensitive instruments and equipment that may be exposed to dust, moisture, or physical contact.

What are the key specifications of this enclosure?

The enclosure measures 11.02 x 14.96 x 5.12 inches (280 x 380 x 130 mm) and weighs 1.508 kg. It is made from ABS, uses a transparent screw-type cover, carries IP67 and IK08 ratings, and is backed by a 1-year warranty.

Is this enclosure suitable for outdoor or harsh environments?

Yes, this Boxco S-Series model includes an ultraviolet stabilizer to support outdoor use and help reduce visible color change over time. It is also rated IP67 for dust-tight and water-resistant protection, with an operating temperature range of -40 C to 70 C.

How does this model compare with a standard non-transparent enclosure?

This version includes a transparent cover, which makes it easier to visually check internal components without opening the box. It also combines that visibility with the same sealed screw-type construction, ABS body, and impact resistance expected from the S-Series.

What internal mounting features does this enclosure include?

This model includes mounting plate attachment points with brass inserted injection molding so an internal mounting plate can be secured tightly. It also has pre-molded mounting screw nuts that support mounting hardware such as DIN rail or other internal equipment.

What helps this enclosure maintain its sealing performance?

The enclosure uses a gasket formed by a precision CNC robot process to support strong waterproof and dust-proof performance. The cover bolt attachment points are also formed during injection molding to improve thread strength and overall durability.
