Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 380x560x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-385618
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-385618 is a 380×560×180 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-AGS-385618Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
380×560×180 mm (14.96×22.05×7.09 in)
Mounting plate dimension M1 × M2
345 × 531 mm

Material

Material
ABS
Cover
Grey
Mounting plates
3856 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

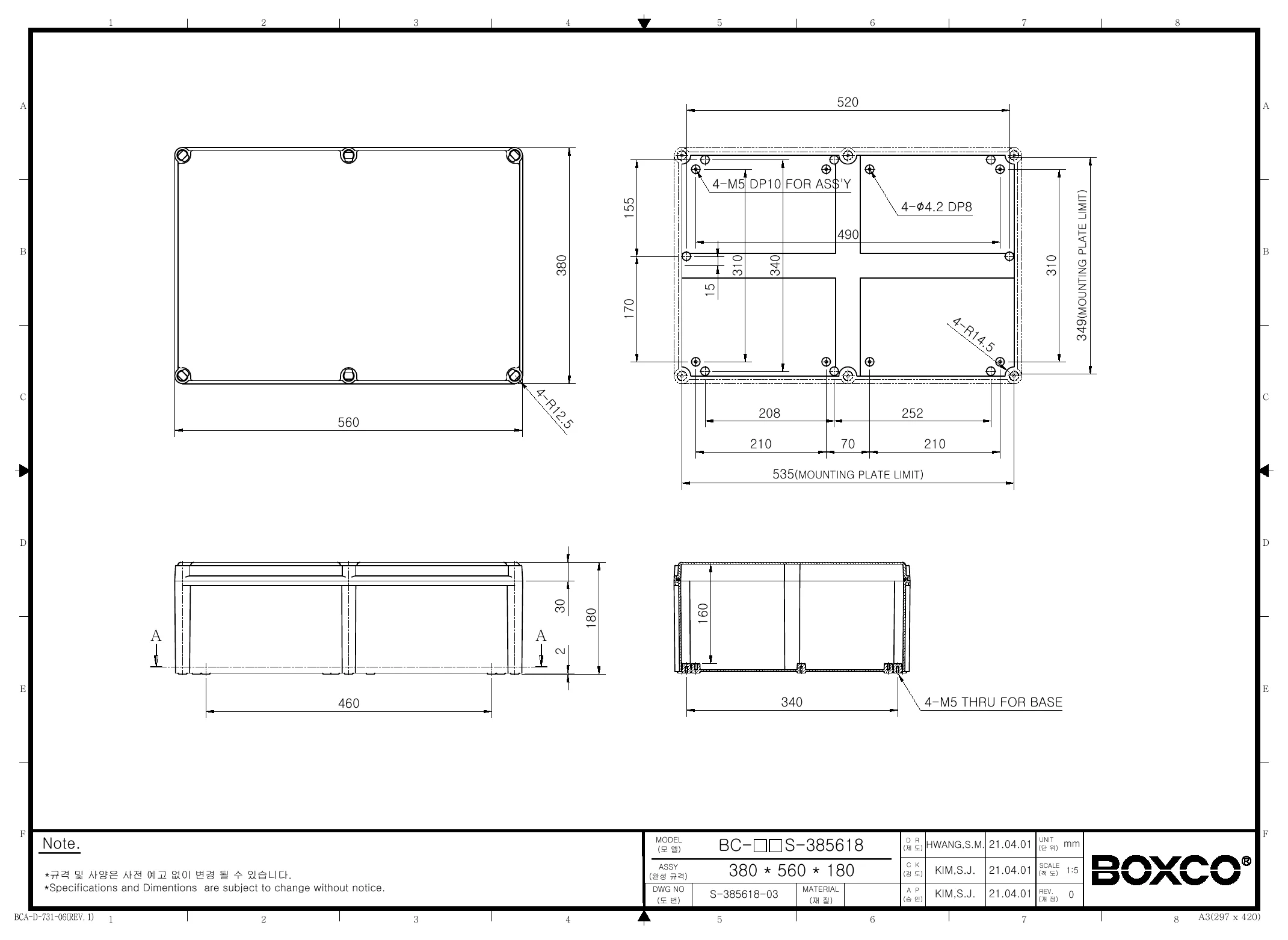

Technical drawings

BC-AGS-385618 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the size of the Boxco S-Series BC-AGS-385618 enclosure?

This model measures 14.96 x 22.05 x 7.09 inches, which corresponds to 380 x 560 x 180 mm. It is a large-format plastic enclosure intended for applications that need more internal space than compact utility boxes.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, which helps reduce visible color change over time. Its IP67 rating also indicates strong protection against dust and water ingress in demanding environments.

What kind of protection does this enclosure provide against dust, water, and impact?

This Boxco S-Series enclosure is rated IP67 and IK08. That means it is built for high resistance to dust and water ingress, while also offering solid impact protection for industrial and commercial settings.

What material is this enclosure made from?

The BC-AGS-385618 is made from ABS and uses a grey cover. The description also notes high impact resistance, anti-static material properties for sensitive electronic instruments, and construction designed to reduce breakage during hole and press processing.

What types of equipment is this enclosure commonly used for?

This model is suited to protecting electrical or electronic equipment that needs a sealed plastic housing with generous internal space. Typical buyer interest would include control, monitoring, or instrument enclosures where dust protection, water resistance, and impact durability matter.

Does this enclosure support internal mounting hardware or equipment plates?

Yes. The description specifies internal mounting plate attachment points with brass inserted injection molding so the mounting plate can be fixed tightly. It also includes pre-molded mounting screw nuts for securing DIN rail or other internal equipment.

What operating temperature range is this enclosure rated for?

This model is specified for use from -40 degrees C to 70 degrees C. That range makes it suitable for both cold and warm operating conditions where a general-purpose plastic enclosure may be exposed to environmental temperature swings.
