Boxco

Boxco S-Series 75x105x55mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-071005
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-071005 is a 75×105×55 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-071005Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
75×105×55 mm (2.95×4.13×2.17 in)
Mounting plate dimension M1 × M2
65 × 93 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0710 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

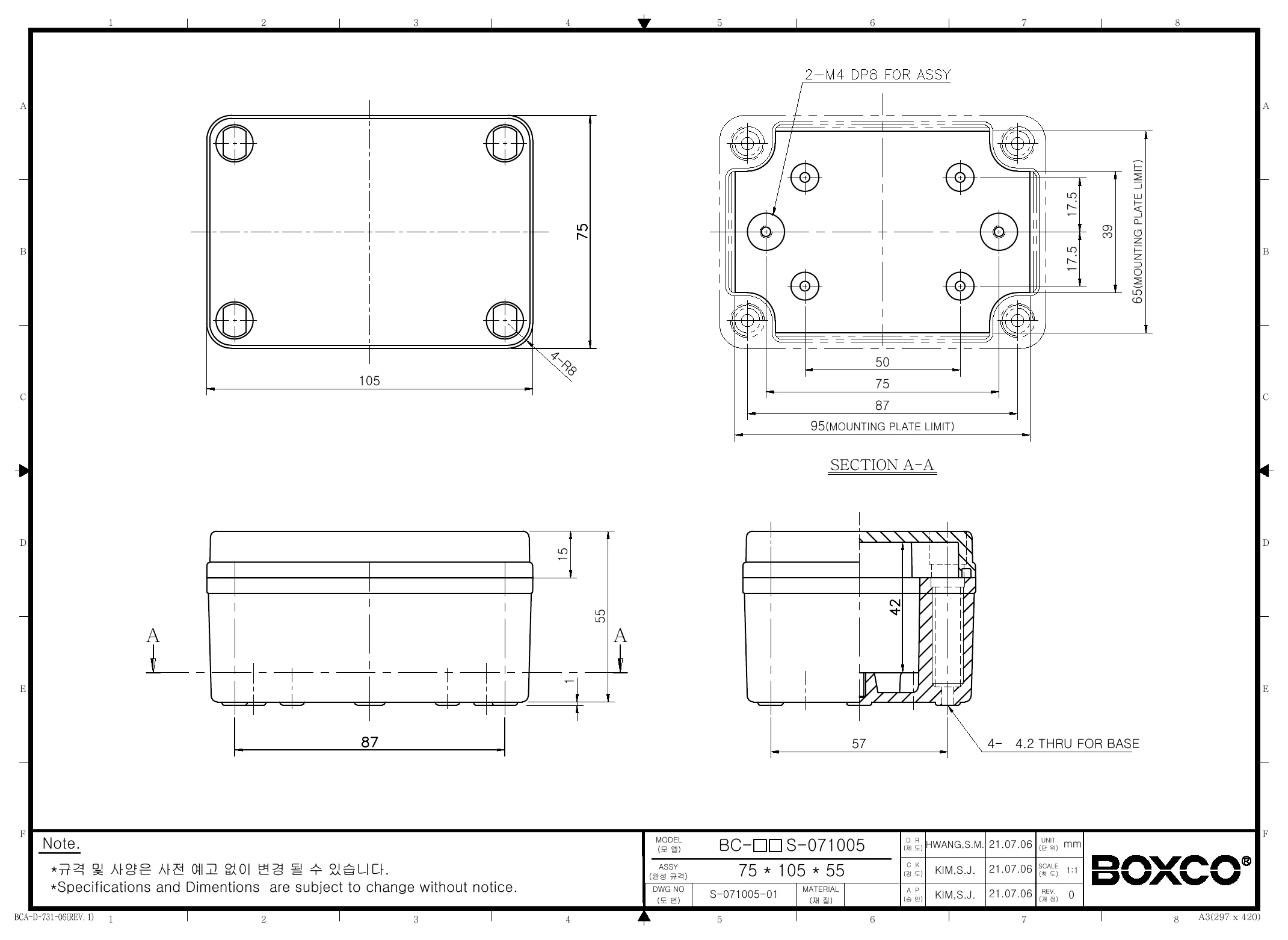

BC-AGS-071005 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-AGS-071005 enclosure best suited for?

This enclosure is suited for protecting electronic components in industrial, commercial, and outdoor equipment housings where dust and water resistance matter. Its ABS construction, anti-static material, and internal mounting features make it a practical choice for control, monitoring, and instrumentation enclosures.

Is this plastic enclosure suitable for outdoor use?

Yes. Boxco states that an ultraviolet stabilizer is added to the S-Series to help protect the enclosure in outdoor use and reduce visible color change over time. Its IP67 rating also supports use in environments where exposure to dust and water is a concern.

What are the key specifications of this enclosure?

This model measures 2.95 x 4.13 x 2.17 inches (75 x 105 x 55 mm) and weighs 0.154 kg. It is an ABS screw-type enclosure with a grey cover, IP67 ingress protection, IK08 impact rating, and an operating temperature range of -40 degrees C to 70 degrees C.

How durable is the BC-AGS-071005 enclosure?

This model is built from high impact resistant ABS and carries an IK08 impact rating. Boxco also notes that the enclosure is designed to resist breakage during hole and press processing, making it a solid option for demanding enclosure applications.

Does this enclosure support mounting internal components securely?

Yes. The product description states that it includes internal mounting plate attachment points with brass inserted injection molding to support heavier equipment. It also has pre-molded mounting screw nuts that can be used to secure compatible internal hardware such as DIN rail-related components.

How well does this enclosure protect against dust and water?

This enclosure is rated IP67, indicating strong protection against dust ingress and water exposure in demanding environments. Boxco also highlights a precision-injected gasket designed to provide effective waterproof and dust-proof performance.
