Boxco

Boxco S-Series 75x105x55mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-071005
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-071005 is a 75×105×55 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-071005Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
75×105×55 mm (2.95×4.13×2.17 in)
Mounting plate dimension M1 × M2
65 × 93 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
0710 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

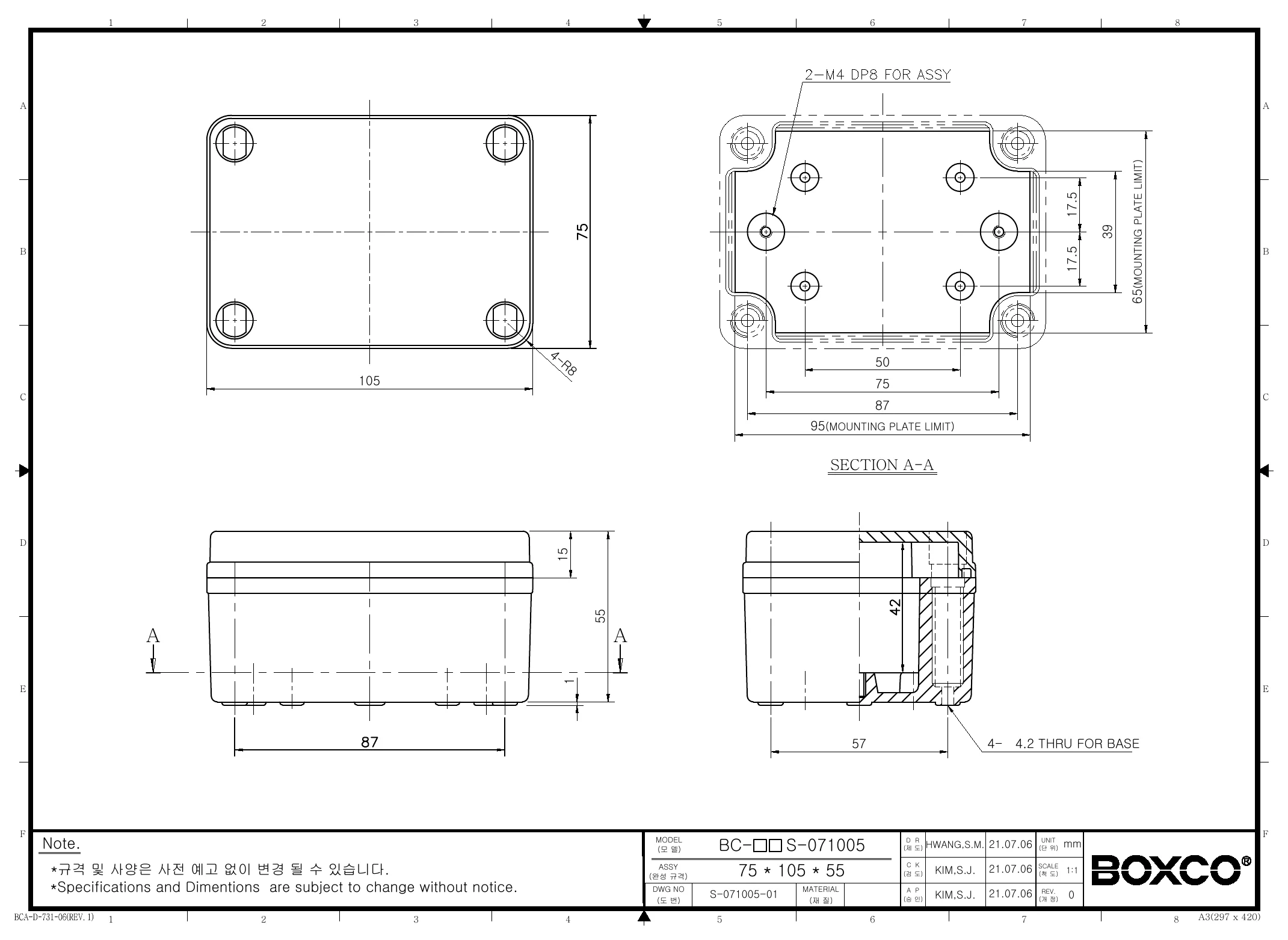

BC-ATS-071005 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this enclosure typically used for?

This Boxco S-Series plastic enclosure is designed to protect electronic components and control assemblies in industrial and commercial applications. Its anti-static ABS construction makes it a suitable option where sensitive electronic instruments need protection from both physical impact and static electricity.

What are the dimensions of this enclosure?

This model measures 2.95 x 4.13 x 2.17 inches, which corresponds to 75 x 105 x 55 mm. That compact size makes it useful when you need a sealed enclosure for smaller devices or internal assemblies.

Is this enclosure suitable for outdoor or washdown environments?

Yes, this enclosure is rated IP67, which indicates strong protection against dust ingress and temporary immersion in water. The S-Series also includes an ultraviolet stabilizer to help reduce color change over long-term outdoor exposure.

How durable is the Boxco S-Series enclosure?

This enclosure is rated IK08 for impact resistance and is made from high impact resistant ABS. The design is intended to withstand external impact and reduce the risk of breakage during machining or press processing.

What cover style does this model use?

This specific model comes with a transparent cover and a screw-type closure. The transparent cover allows visual inspection of internal components without changing the enclosure style or material selection.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 °C to 70 °C. That range supports use in both cold and moderately high-temperature environments where a sealed non-metallic enclosure is needed.

Does this enclosure support internal mounting hardware or accessories?

Yes, the product description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts. These built-in features help support secure installation of internal hardware such as mounting plates or DIN rail-based equipment.
