Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80×110×70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-081107-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-081107-K is a 80×110×70 mm ABS enclosure with a grey cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-AGS-081107-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×110×70 mm (3.15×4.33×2.76 in)

Material

Material
ABS
Cover
Grey

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

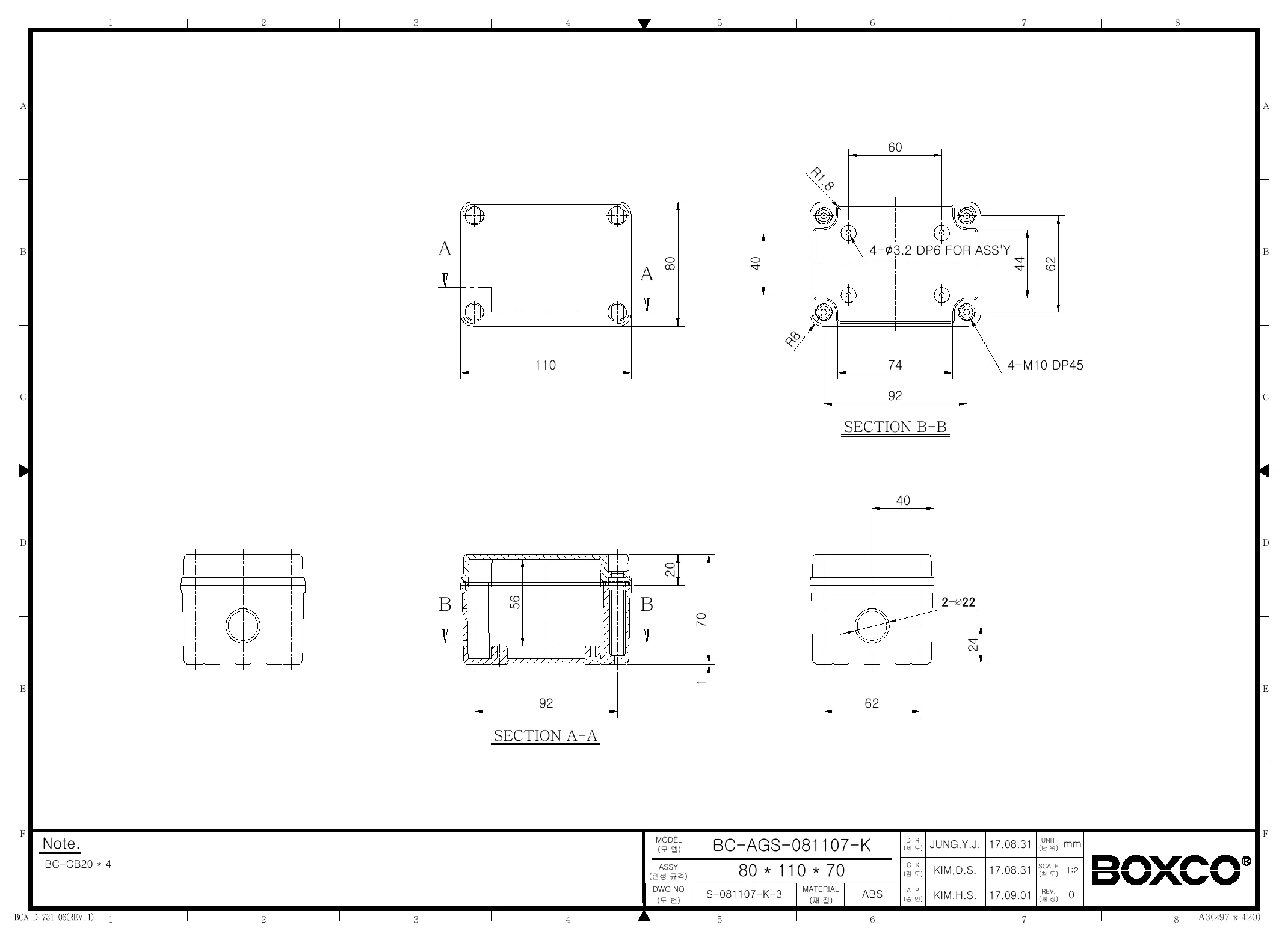

Technical drawings

BC-AGS-081107-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this enclosure typically used for?

This model is suited for protecting compact electrical or control components in industrial and commercial applications where a sealed plastic enclosure is needed. Its screw-type design and knock out base make it relevant for enclosure box use cases that need durability and structured cable entry planning.

What are the dimensions of this Boxco S-Series enclosure?

This enclosure measures 3.15 x 4.33 x 2.76 inches, which is 80 x 110 x 70 mm. That size makes it appropriate for smaller assemblies that need a compact housing rather than a large cabinet-style enclosure.

How well is this enclosure protected against dust, water, and impact?

This model is rated IP67, which indicates a high level of protection against dust and water ingress. It also carries an IK08 impact rating, showing added resistance to mechanical impact for demanding environments.

What material is this enclosure made from?

This enclosure is made from ABS plastic and includes a grey cover. ABS is commonly selected for enclosure applications that need a balance of strength, low weight, and corrosion resistance.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 °C to 70 °C. That range supports use in both cold and moderately hot environments, as long as the application stays within those limits.

Does this model include a knock out base?

Yes, the product description states that this S-Series enclosure has a knock out base. That can be useful in applications where planned access points are needed while still using the enclosure format of this specific model.
