Boxco

Boxco S-Series 80×130×70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-081307-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-081307-K is a 80×130×70 mm ABS enclosure with a grey cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-AGS-081307-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×70 mm (3.15×5.12×2.76 in)

Material

Material
ABS
Cover
Grey

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

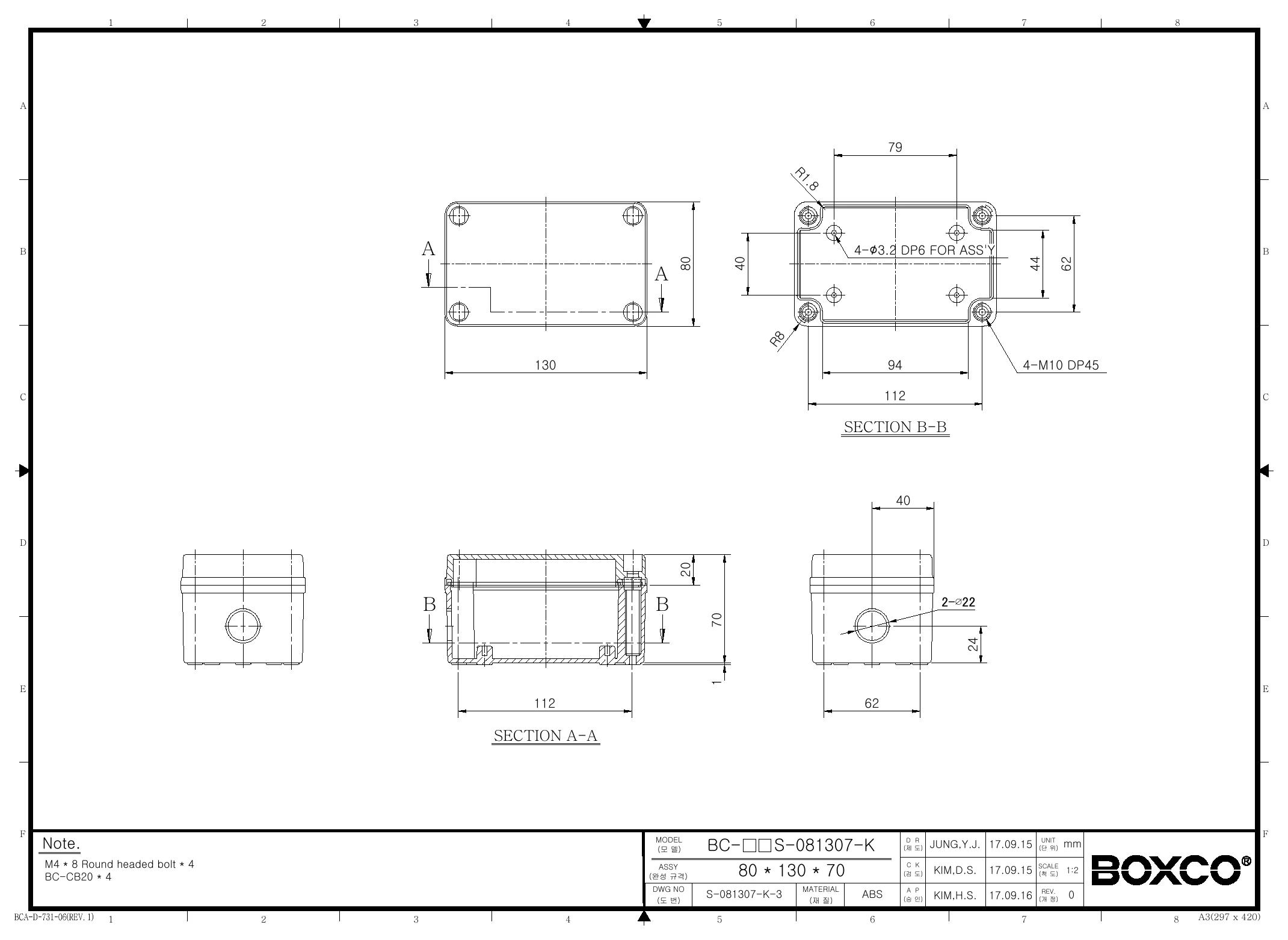

Technical drawings

BC-AGS-081307-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of this Boxco S-Series enclosure?

This model measures 3.15 x 5.12 x 2.76 inches, which corresponds to 80 x 130 x 70 mm. Those dimensions make it a compact enclosure option for protecting components in space-constrained industrial and commercial applications.

What material is this enclosure made from?

This enclosure is made from ABS plastic and features a grey cover. ABS is commonly selected for enclosure applications where a lightweight, durable non-metallic housing is needed.

Is this enclosure suitable for outdoor or washdown environments?

This model is rated IP67, which indicates a high level of protection against dust and temporary immersion in water. That makes it a practical choice for demanding environments where moisture and contaminants are a concern.

How impact-resistant is this Boxco enclosure?

This enclosure carries an IK08 impact rating. That means it is designed to offer a solid level of mechanical protection in applications where the housing may be exposed to incidental impact.

What temperature range can this enclosure handle?

This model is specified for use from -40 °C to 70 °C. That wide operating range supports use in both low-temperature and moderately high-temperature environments, depending on the overall application requirements.

What type of enclosure cover does this model use?

This is a screw-type enclosure, meaning the cover is secured with screws rather than a hinged or latched design. That style is often preferred when a more secure, tightly closed enclosure is needed.

Does this enclosure include any base entry feature?

Yes, this S-Series model includes a knock out base. That feature can be relevant for buyers who need an enclosure series designed with base access flexibility in mind.
