Boxco S-Series 80×130×70mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-081307-K

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

BC-ATS-081307-K is a 80×130×70 mm ABS enclosure with a transparent cover from the Boxco K Series.

Features

BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-ATS-081307-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included): 80×130×70 mm (3.15×5.12×2.76 in)

Material

Material: ABS
Cover: Transparent

Protection & environment

IP rating: IP66/67
IK rating: IK08
Operating temperature: -40 ~ +70℃
Flammability rating (UL 94): 94-HB

Test conditions and notes1

Dimensions and specifications are subject to change without notice.

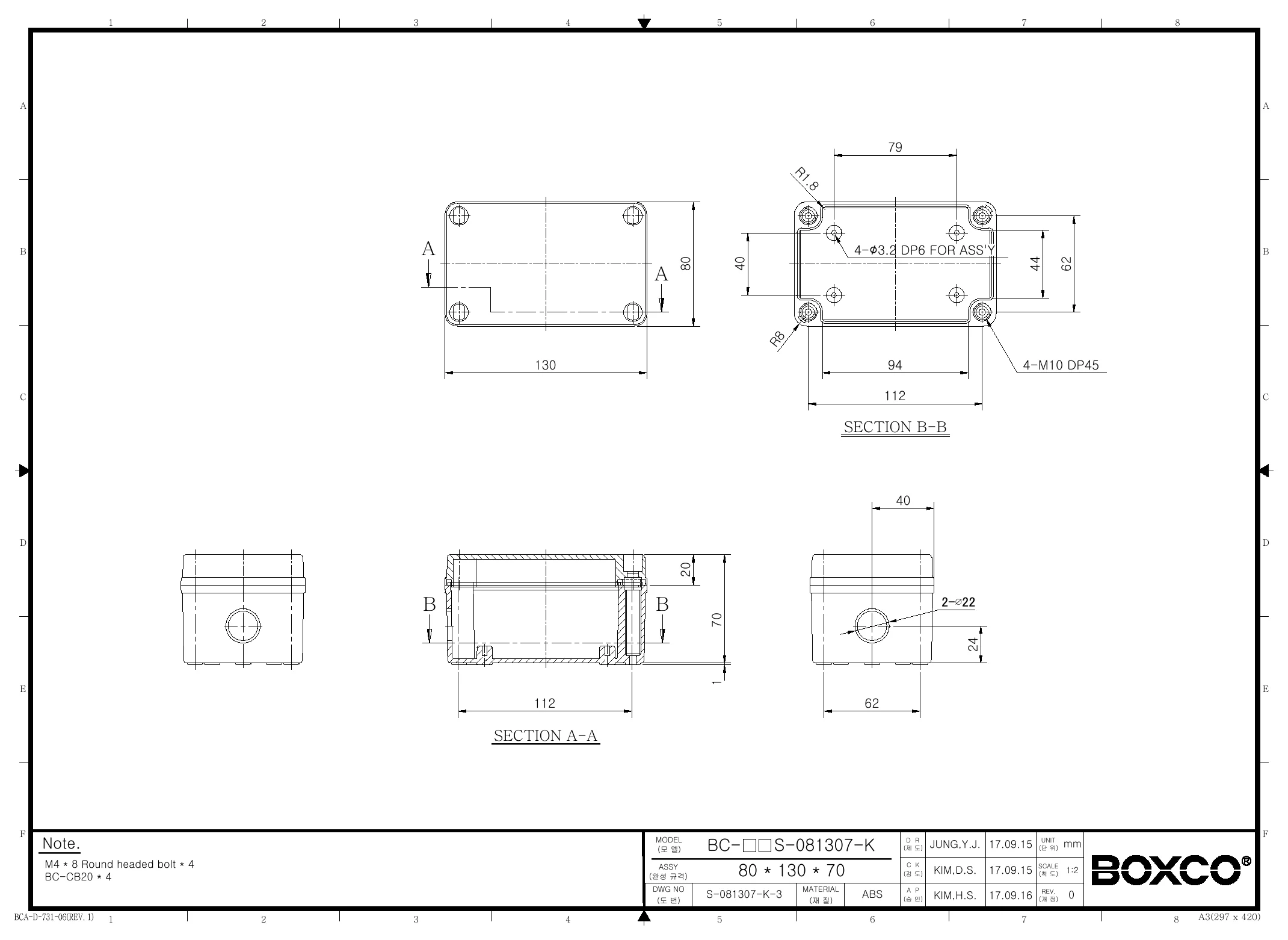

Technical drawings

BC-ATS-081307-K Dimensions (mm) — Dimensions (mm)

Downloads

Datasheet1

BC-ATS-081307-K datasheet5spec.pdf PDF Download

Catalogues1

Boxco Catalog PDF Download

FAQ

What are the main specifications of the Boxco S-Series BC-ATS-081307-K enclosure?

This model measures 3.15 x 5.12 x 2.76 inches (80 x 130 x 70 mm). It is a screw-type plastic enclosure made from ABS, with a transparent cover, an IP67 rating, and an IK08 impact rating. The listed product weight is 0.5000 kg.

What kind of environments is this enclosure designed for?

The BC-ATS-081307-K is rated IP67, which makes it suitable for demanding environments where protection from dust and temporary water exposure is important. It also has an IK08 impact rating and an operating temperature range of -40 degrees C to 70 degrees C. These specifications make it a practical choice for indoor or outdoor industrial use where durability matters.

Does this enclosure have a transparent cover?

Yes, this model includes a transparent cover. That makes it useful in applications where visual inspection of internal components is helpful without opening the enclosure. The cover is part of this specific BC-ATS-081307-K configuration.

What types of applications is this Boxco enclosure commonly used for?

This enclosure is suited for protecting components in industrial, commercial, and OEM equipment where a sealed plastic housing is needed. Its screw-type design, ABS construction, and transparent cover make it a good fit for applications that benefit from enclosure visibility and environmental protection. Buyers often choose this style for general-purpose protective housing rather than for highly customized metal enclosure needs.

Does this model include any base feature for easier panel preparation?

Yes, the product description states that this series has a knock out base. That feature can be relevant for buyers comparing enclosure series and physical configurations. It is a listed feature of this Boxco S-Series model.

How does ABS construction affect this enclosure compared with other material options?

This model uses ABS plastic, which helps keep the enclosure lightweight while still providing solid durability for general-purpose protection. For this unit, ABS is paired with IP67 and IK08 ratings, so the enclosure combines material practicality with strong environmental and impact resistance. Buyers comparing models should note that this specific product is an ABS enclosure with a transparent cover.
