Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80×130×85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-081308-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-081308-K is a 80×130×85 mm ABS enclosure with a grey cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-AGS-081308-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×85 mm (3.15×5.12×3.35 in)

Material

Material
ABS
Cover
Grey

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

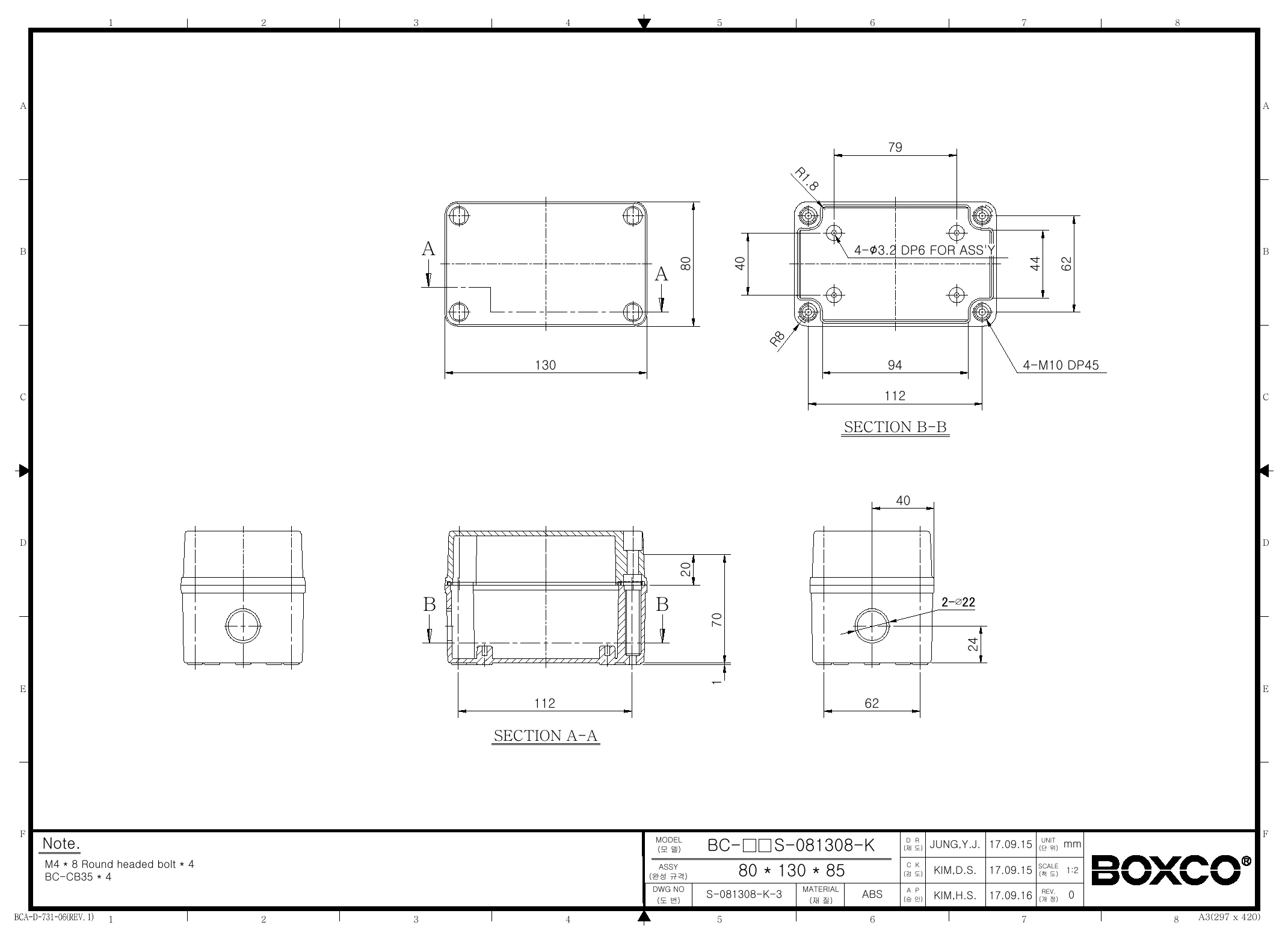

BC-AGS-081308-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure best suited for?

This model is suited for protecting components in industrial, commercial, and general equipment housings where a compact sealed plastic enclosure is needed. Its IP67 and IK08 ratings make it a practical choice for environments where dust, water exposure, and light mechanical impact resistance matter.

What are the exact dimensions of this enclosure?

This enclosure measures 3.15 x 5.12 x 3.35 inches, which is 80 x 130 x 85 mm. Those dimensions make it a mid-size option within the S-Series for applications that need more internal room than smaller utility boxes.

How durable is this enclosure for demanding environments?

This model is rated IP67 for protection against dust ingress and temporary water exposure, and IK08 for impact resistance. It is also specified for operation from -40 degrees C to 70 degrees C, which supports use across a wide range of indoor and outdoor conditions.

What material and cover style does this enclosure use?

This model is made from ABS and comes with a grey cover. It is a screw-type enclosure, which differentiates it from latch-style or hinged-cover designs in product families that use other closure methods.

Does this enclosure include any special base feature?

Yes, this S-Series model has a knock out base. That can be useful for buyers who need an enclosure style designed with added base access flexibility while still selecting a sealed screw-cover format.

What should buyers know about warranty and product weight?

This enclosure has a 1-year warranty period. The listed weight is 0.5000 kg, which can help when estimating shipping, panel load, or enclosure handling requirements for larger orders.
