Boxco

Boxco S-Series 80×180×70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-081807-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-081807-K is a 80×180×70 mm ABS enclosure with a grey cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-AGS-081807-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×180×70 mm (3.15×7.09×2.76 in)

Material

Material
ABS
Cover
Grey

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

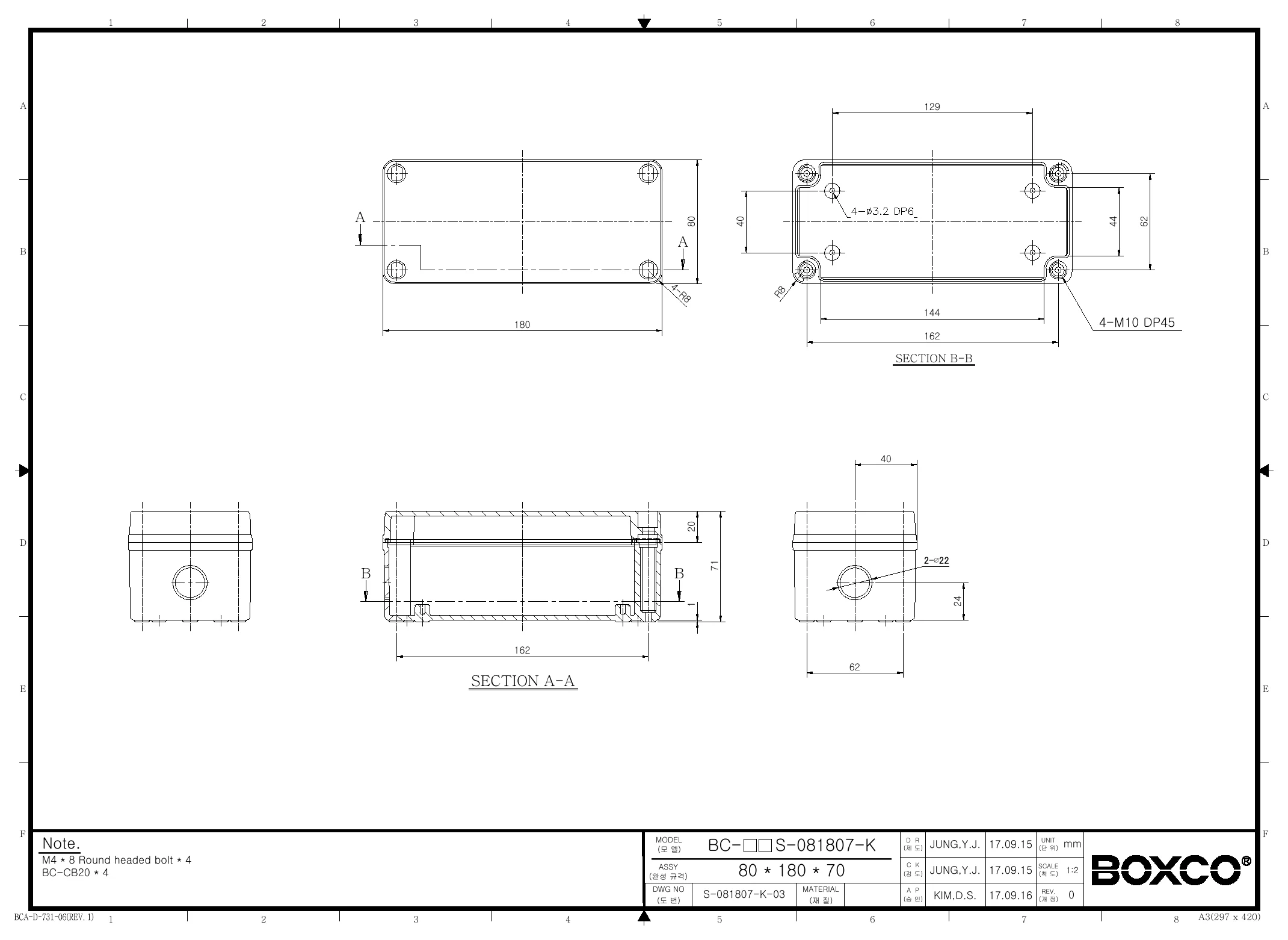

Technical drawings

BC-AGS-081807-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of the Boxco S-Series BC-AGS-081807-K enclosure?

This enclosure measures 3.15 x 7.09 x 2.76 inches, which corresponds to 80 x 180 x 70 mm. Those dimensions make it a compact rectangular plastic enclosure for applications that need a sealed housing without taking up excessive space.

What material is this enclosure made from?

The BC-AGS-081807-K is made from ABS plastic and has a grey cover. ABS is commonly selected for enclosure bodies where a lightweight, durable non-metallic housing is needed.

Is this enclosure suitable for dusty or wet environments?

Yes, this model is rated IP67, which indicates strong protection against dust ingress and temporary immersion in water under rated conditions. It is intended for applications where environmental sealing is important.

How durable is the Boxco S-Series BC-AGS-081807-K against impact?

This enclosure carries an IK08 impact rating. That gives buyers a defined level of impact resistance for environments where the housing may be exposed to incidental mechanical contact.

What temperature range can this enclosure handle?

The specified operating temperature range is -40°C to 70°C. This makes the BC-AGS-081807-K suitable for use in both low-temperature and moderately high-temperature environments within that range.

What design features distinguish this model within the S-Series?

This version is a screw-type plastic enclosure and the product description notes that the series has a knock out base. Those features help distinguish it from enclosure styles that use different cover retention or base configurations.
