Boxco

Boxco S-Series 80×180×70mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-081807-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-081807-K is a 80×180×70 mm ABS enclosure with a transparent cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-ATS-081807-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×180×70 mm (3.15×7.09×2.76 in)

Material

Material
ABS
Cover
Transparent

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

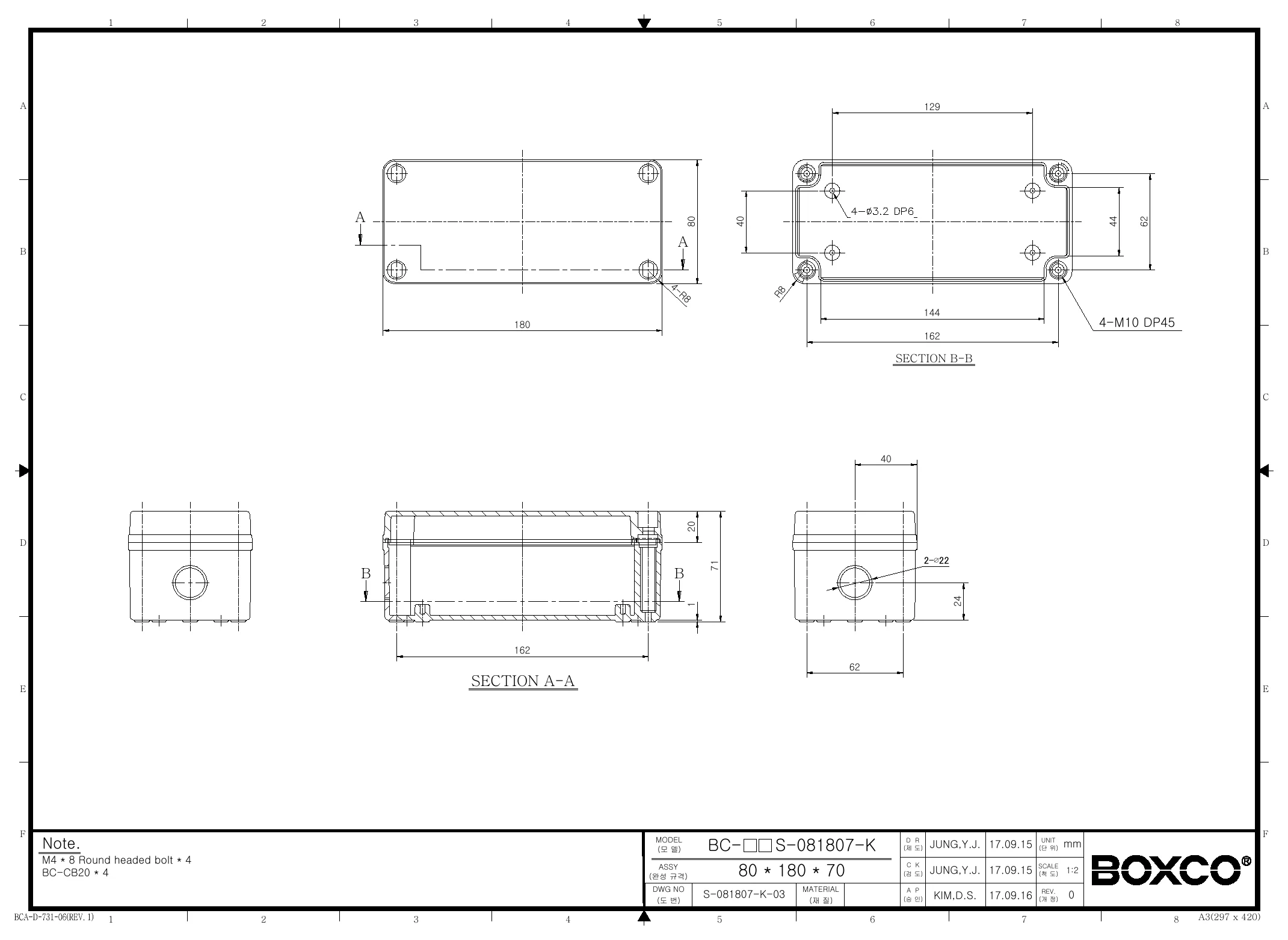

BC-ATS-081807-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-ATS-081807-K typically used for?

This model is suited to applications that need a sealed plastic enclosure with a visible interior, such as control, monitoring, or protection setups where status indicators need to be seen through the cover. Its IP67 rating, ABS construction, and transparent screw-type cover make it a practical choice for industrial or commercial enclosure use where dust and water resistance matter.

What do the IP67 and IK08 ratings mean on this enclosure?

IP67 indicates this enclosure is rated for strong protection against dust ingress and temporary immersion in water. IK08 indicates a defined level of impact resistance, which helps the enclosure handle mechanical contact better than an unrated box.

What are the dimensions of this Boxco enclosure?

The enclosure measures 3.15 x 7.09 x 2.76 inches, which is 80 x 180 x 70 mm. That makes it a longer rectangular format within the S-Series, useful when more internal layout length is needed than a compact square enclosure provides.

Does this model have a transparent cover and what closure style does it use?

Yes, this version includes a transparent cover so the inside can be visually checked without opening the enclosure. It uses a screw-type closure, which provides a more secure sealed cover style than quick-open designs.

What material is the BC-ATS-081807-K made from?

This enclosure is made from ABS plastic. ABS is commonly selected for enclosure bodies when a lightweight, corrosion-resistant non-metal housing is needed.

What temperature range is this enclosure rated for?

This model is rated for use from -40 degrees C to 70 degrees C. That range supports use in both cold and moderately hot operating environments, provided the rest of the application components are also rated appropriately.

Does this enclosure include a knock out base?

Yes, the product description states that this S-Series model has a knock out base. That feature can help when selecting an enclosure series intended to accommodate entry-point customization at the base.
