Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80×180×85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-081808-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-081808-K is a 80×180×85 mm ABS enclosure with a grey cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-AGS-081808-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×180×85 mm (3.15×7.09×3.35 in)

Material

Material
ABS
Cover
Grey

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

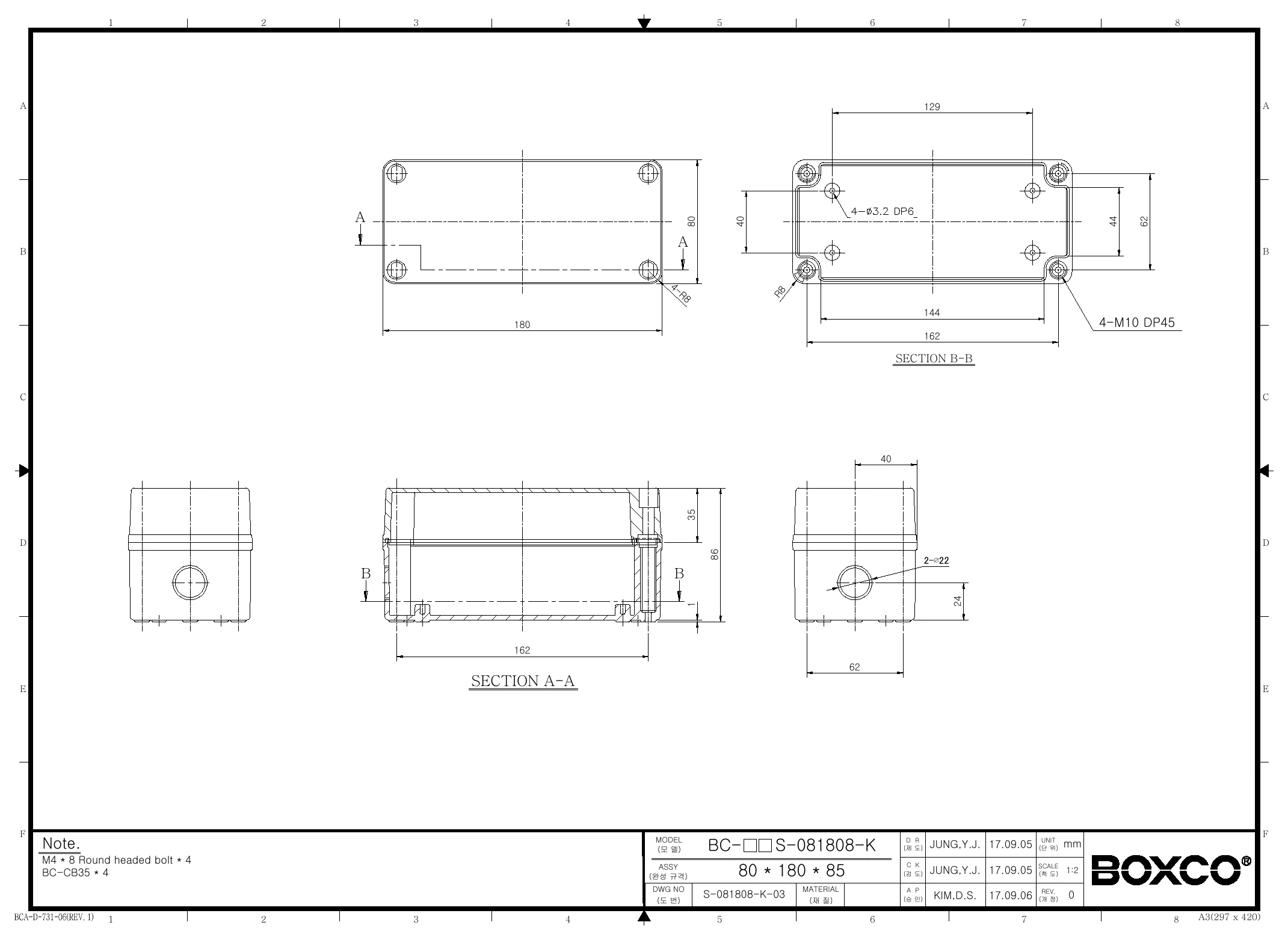

BC-AGS-081808-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this enclosure typically used for?

This Boxco S-Series plastic enclosure is typically used to protect electrical or control components in industrial and commercial environments where a durable housing is needed. Its screw type design and IP67 rating make it relevant for applications that need a sealed enclosure against dust and water ingress.

What are the dimensions of this enclosure?

This model measures 3.15 x 7.09 x 3.35 inches, which corresponds to 80 x 180 x 85 mm. Those dimensions make it a compact rectangular enclosure suited for applications that need more length than width.

Is this enclosure suitable for wet or dusty environments?

Yes, this model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. That makes it a suitable choice for demanding indoor or outdoor environments where sealing performance matters.

What material is this enclosure made from?

This enclosure is made from ABS plastic and comes with a grey cover. ABS is commonly chosen for enclosure applications where a lightweight, corrosion-resistant plastic housing is preferred.

How durable is this enclosure for impact exposure?

This model carries an IK08 impact rating, indicating resistance to mechanical impact beyond basic enclosure protection. That makes it a stronger option for environments where the enclosure may be exposed to incidental knocks or rough handling.

What temperature range can this enclosure handle?

This enclosure is specified for use from -40 degrees C to 70 degrees C. That range supports use in both cold and hot operating environments within the stated limits.

Does this model include any special enclosure features?

Yes, the product description notes that this is a screw type enclosure and that the series has a knock out base. Those features help distinguish it within the Boxco S-Series enclosure line.
