Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80×180×85mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-081808-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-081808-K is a 80×180×85 mm ABS enclosure with a transparent cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-ATS-081808-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×180×85 mm (3.15×7.09×3.35 in)

Material

Material
ABS
Cover
Transparent

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

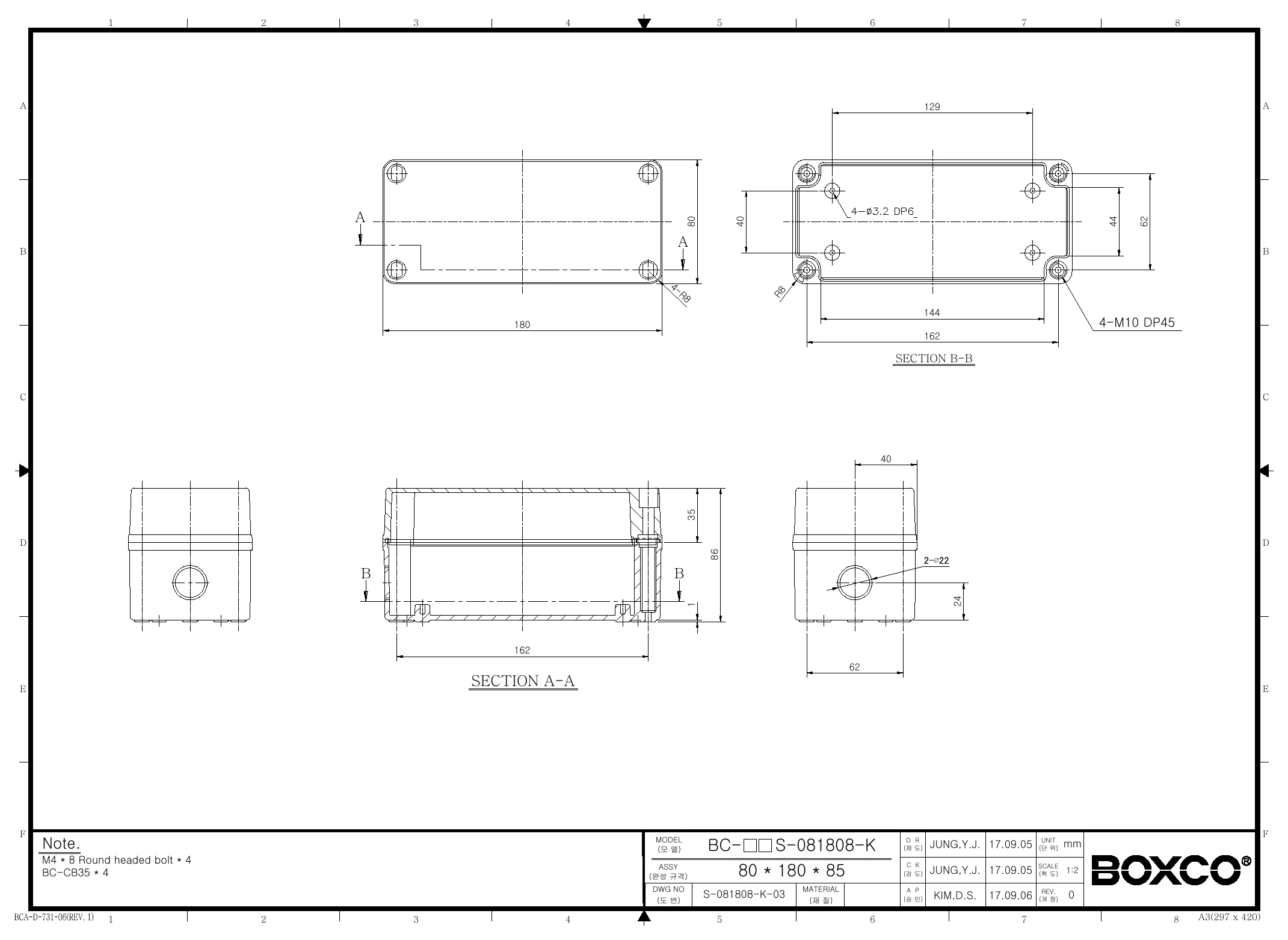

BC-ATS-081808-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco S-Series BC-ATS-081808-K enclosure?

This model is a plastic enclosure made from ABS and measures 3.15 x 7.09 x 3.35 inches (80 x 180 x 85 mm). It has a transparent cover, a screw-type design, an IP67 rating, and an IK08 impact rating. The listed product weight is 0.5000 kg.

Is the cover transparent on this enclosure?

Yes, this specific BC-ATS-081808-K model includes a transparent cover. That can be useful when contents need to remain visible without opening the enclosure. The transparent cover is part of the stated product configuration for this model.

What kind of environments is this enclosure designed for?

This enclosure is rated IP67 and IK08, so it is intended for demanding environments where dust protection, temporary water immersion resistance, and impact resistance matter. Its operating temperature range is -40 °C to 70 °C. Buyers looking for a durable general-purpose protective housing often check these ratings first.

What material is the BC-ATS-081808-K made from?

The enclosure body is made from ABS plastic. For buyers comparing materials, this model is specifically identified as an ABS enclosure rather than a metal version. That makes the material type clear when matching it to an existing enclosure standard or sourcing preference.

Does this Boxco S-Series enclosure have a knockout base?

Yes, the product description states that this series has a knock out base. That feature is called out as part of the S-Series design for this model. If a knockout base is a requirement for your enclosure selection, this model meets that stated feature.

What kinds of applications is this enclosure commonly considered for?

This model is generally considered for applications that need a compact protective enclosure with a screw-type transparent cover and solid environmental protection. Buyers often evaluate it for industrial or commercial equipment housings where visibility and enclosure durability are important. Final fit should still be confirmed against the product dimensions and environmental requirements.
