Boxco S-Series 80×250×70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-082507-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-082507-K is a 80×250×70 mm ABS enclosure with a grey cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-AGS-082507-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×250×70 mm (3.15×9.84×2.76 in)

Material

Material
ABS
Cover
Grey

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

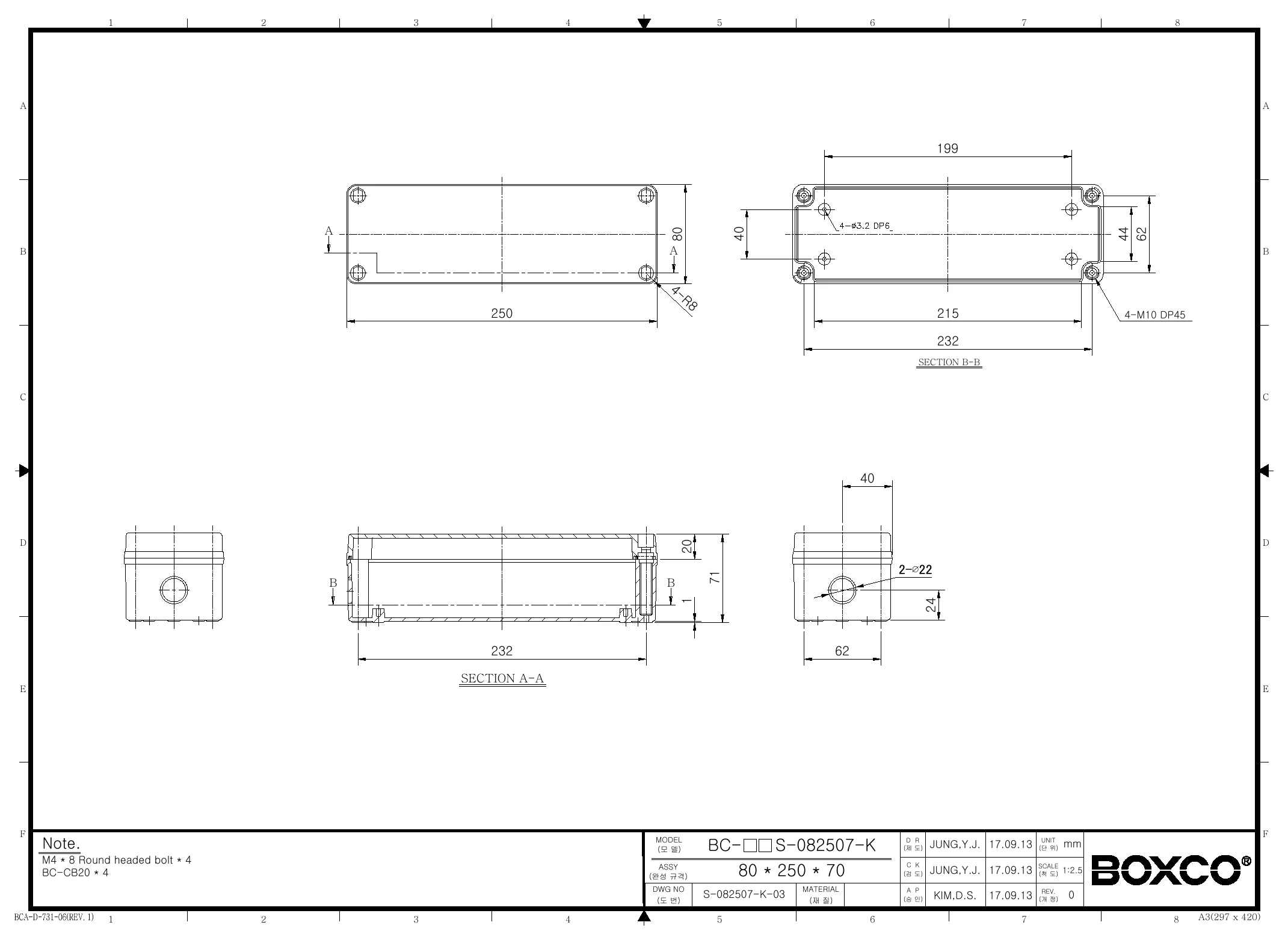

Technical drawings

BC-AGS-082507-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure typically used for?

This model is suited to protecting components in industrial, commercial, and general-purpose equipment where a sealed plastic enclosure is needed. Its 3.15 x 9.84 x 2.76 inch size, ABS construction, and screw-type cover make it a practical choice for control, protection, or housing applications that need a durable non-metallic box.

What are the main specifications of this enclosure?

This enclosure measures 3.15 x 9.84 x 2.76 inches (80 x 250 x 70 mm) and is made from ABS with a grey cover. It is rated IP67 for ingress protection, IK08 for impact resistance, uses a screw-type cover, and weighs 0.5000 kg.

Is this enclosure suitable for wet or dusty environments?

Yes, this model carries an IP67 rating, which means it is built for strong protection against dust ingress and temporary water exposure. That makes it a good fit for demanding environments where a standard unsealed enclosure would not be adequate.

How durable is this plastic enclosure in tougher operating conditions?

This enclosure combines ABS construction with an IK08 impact rating, giving it better resistance to physical knocks than a basic light-duty box. It is also rated for operation from -40 degrees C to 70 degrees C, which supports use across a wide range of ambient conditions.

What makes this screw-type enclosure different from a basic plastic box?

This model stands out by combining a screw-type cover, IP67 sealing, IK08 impact protection, and a knock out base in one enclosure. Compared with a basic non-sealed plastic box, it is better suited to applications that need stronger environmental protection and a more secure closure.

Does this enclosure include any feature for easier panel or entry-point planning?

Yes, the product description specifies that this S-Series enclosure has a knock out base. That makes it a useful option for applications where base access or planned entry-point flexibility is important during enclosure selection.
