Boxco

Boxco S-Series 80×250×70mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-082507-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-082507-K is a 80×250×70 mm ABS enclosure with a transparent cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-ATS-082507-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×250×70 mm (3.15×9.84×2.76 in)

Material

Material
ABS
Cover
Transparent

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

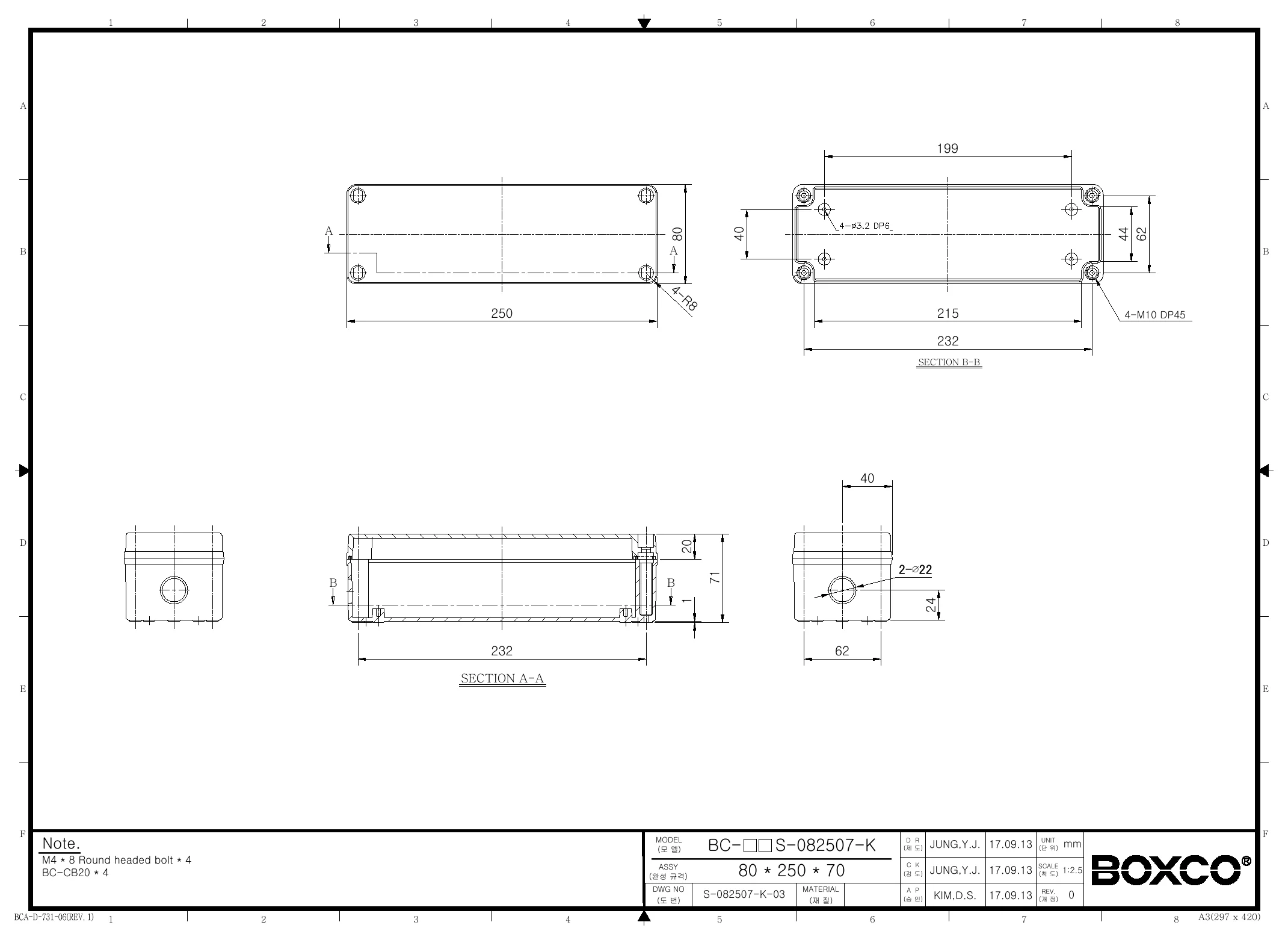

BC-ATS-082507-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key specifications of the Boxco S-Series BC-ATS-082507-K enclosure?

This model measures 3.15 x 9.84 x 2.76 inches (80 x 250 x 70 mm). It is made of ABS plastic, uses a screw type design, includes a transparent cover, and is rated IP67 and IK08.

What kinds of applications is this enclosure typically used for?

This enclosure is suited for protecting components in industrial and commercial environments where a sealed plastic housing is needed. Its long, narrow form factor and transparent cover make it a practical choice when internal contents may need to be viewed without opening the box.

Is this enclosure suitable for demanding environmental conditions?

Yes. This model has an IP67 rating for dust-tight and water-resistant protection and an IK08 impact rating for mechanical durability. It is also specified for temperatures from -40°C to 70°C.

What does the transparent cover provide compared to a standard opaque cover?

The transparent cover allows visual inspection of the contents without removing the lid. For buyers comparing options, this can be useful when quick status checks are important while keeping the enclosure closed.

Does this Boxco enclosure include any features for enclosure modification or customization?

Yes. The product description states that this S-Series model has a knock out base. That feature can be relevant for buyers looking for an enclosure series with built-in base knockout provision.

What is the material and weight of this enclosure?

This enclosure is made from ABS plastic. The listed weight for this model is 0.5000 kg.
