Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80×250×85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-082508-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-082508-K is a 80×250×85 mm ABS enclosure with a grey cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-AGS-082508-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×250×85 mm (3.15×9.84×3.35 in)

Material

Material
ABS
Cover
Grey

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

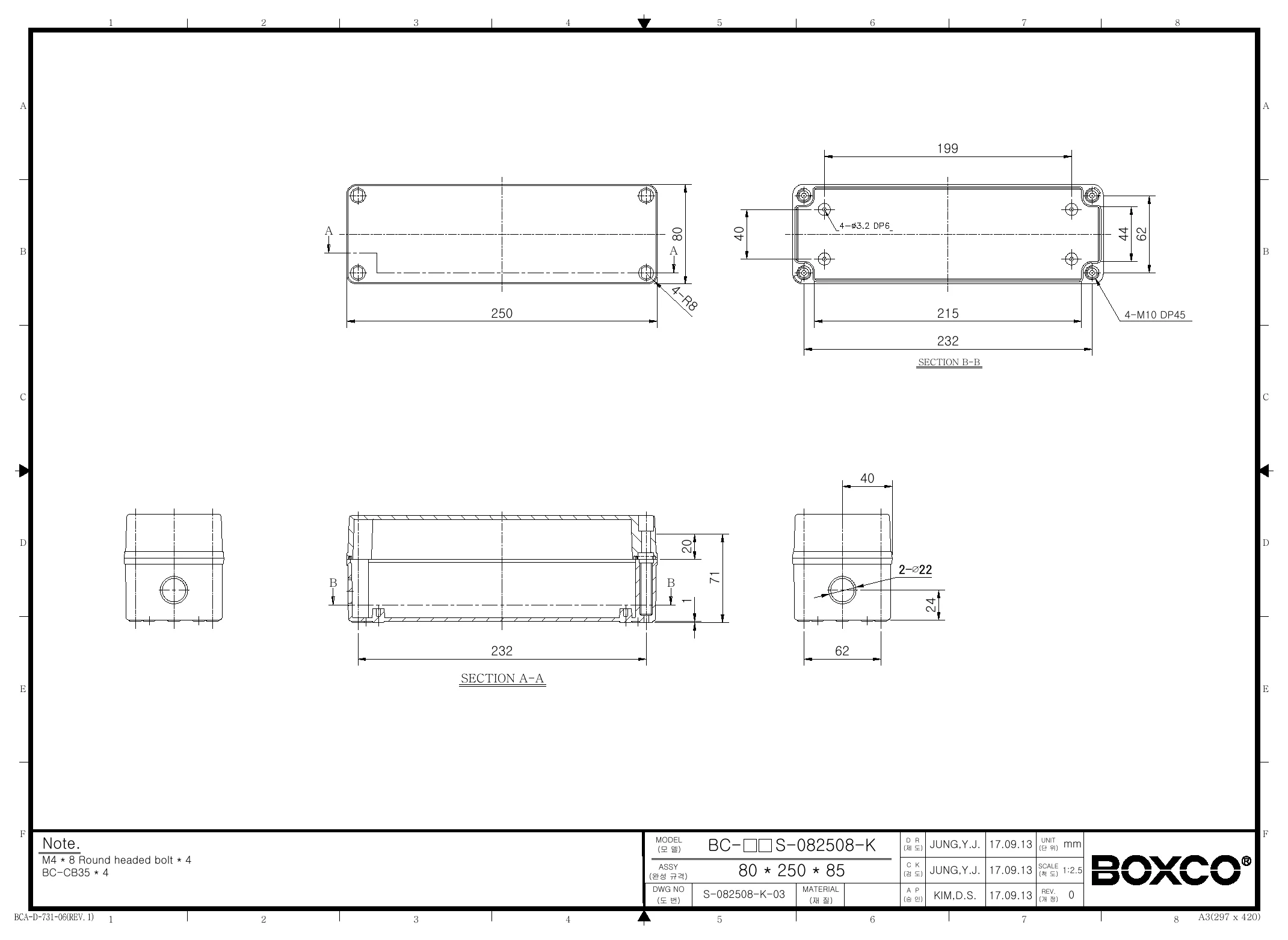

BC-AGS-082508-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure used for?

This model is a plastic enclosure box intended for protecting components in industrial and commercial applications where a sealed housing is needed. Its screw-type design and enclosure form factor make it suitable for general-purpose equipment protection rather than open-exposure mounting without a housing.

What are the dimensions of this enclosure?

The Boxco S-Series BC-AGS-082508-K measures 3.15 x 9.84 x 3.35 inches, which is 80 x 250 x 85 mm. These dimensions make it a longer-format enclosure compared with compact junction-style boxes.

Is this enclosure suitable for wet or dusty environments?

Yes. This enclosure is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. Buyers commonly look for this level of sealing when selecting an enclosure for demanding indoor or outdoor environments.

How impact-resistant is this plastic enclosure?

This model carries an IK08 impact rating. That gives it a defined level of mechanical impact resistance beyond a basic unrated plastic box, which can be useful in industrial and utility settings.

What material and cover style does this model use?

The enclosure is made of ABS plastic and comes with a grey cover. It is a screw-type enclosure, and the product description also notes that this series has a knock out base.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40°C to 70°C. That range supports use in both cold and warm environments within those limits.
