Boxco

Boxco S-Series 80x110x45mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-081104
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATS-081104 is a 80×110×45 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-081104Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×110×45 mm (3.15×4.33×1.77 in)
Mounting plate dimension M1 × M2
65 × 95 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
0811 P (Plastic, P type), 0811 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

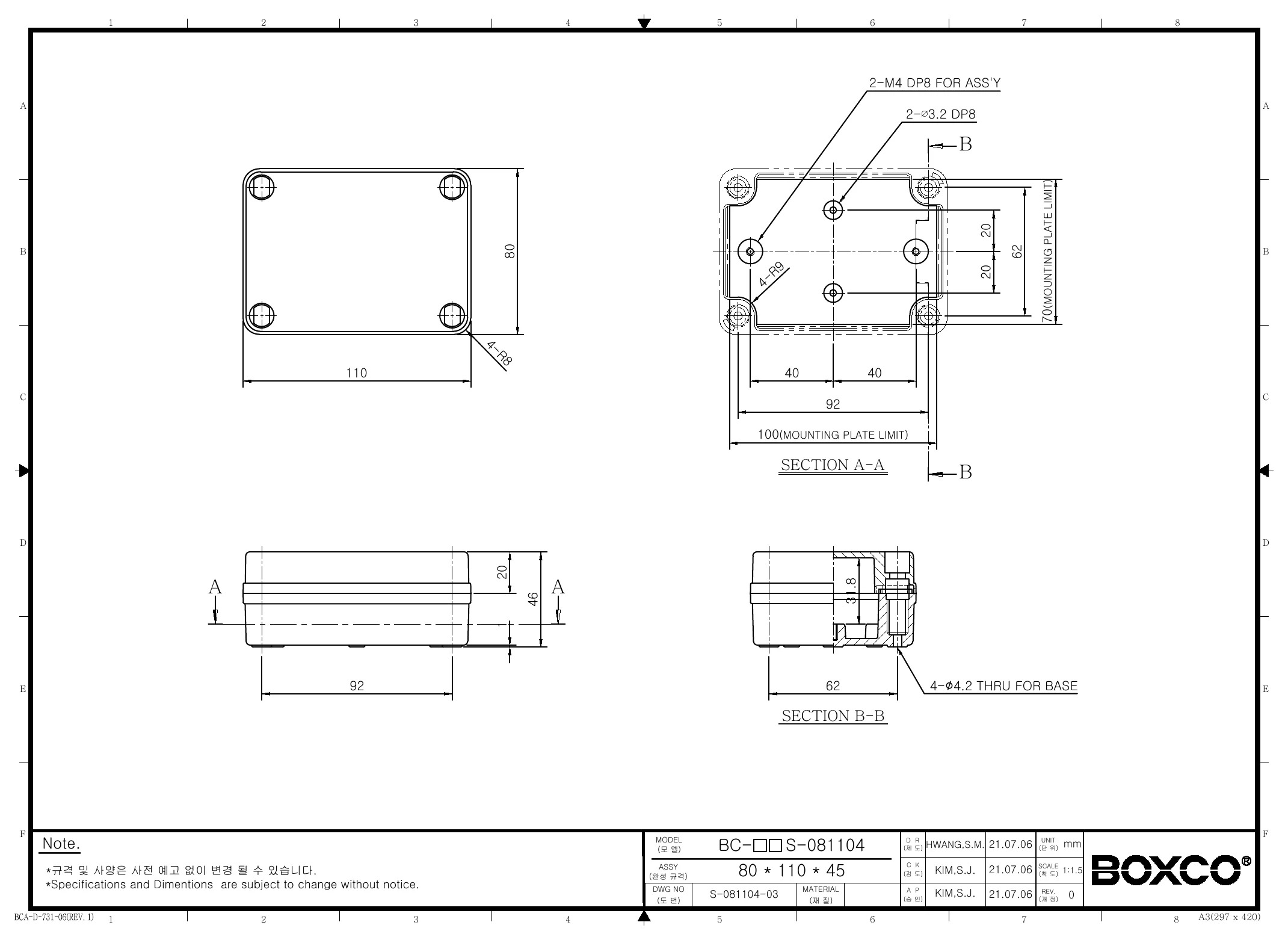

Technical drawings

BC-ATS-081104 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key specifications of Boxco S-Series BC-ATS-081104?

This plastic enclosure measures 3.15 x 4.33 x 1.77 inches (80 x 110 x 45 mm). It is made from ABS, has a transparent cover, uses a screw-type closure, and is rated IP67 and IK08. The listed weight is 0.148 kg.

Is this enclosure suitable for outdoor environments?

Yes. The Boxco S-Series description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use. It is also designed to maintain its appearance better over time, with only limited color change after long-term exposure.

How well does this enclosure protect against dust, water, and impact?

This model carries an IP67 rating, indicating strong protection against dust ingress and temporary water exposure under rated conditions. It also has an IK08 impact rating, which reflects resistance to external mechanical impact. The product description also highlights high impact resistant material and a precision-injected gasket for waterproof and dust-proof performance.

Can this enclosure be used around sensitive electronic equipment?

Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a practical option for applications where static control is a consideration.

What internal mounting features does this enclosure include?

The enclosure includes internal mounting plate attachment points designed to secure a mounting plate tightly to brass-inserted injection molding. It also includes pre-molded mounting screw nuts, which can support mounting of DIN rail or other internal equipment. These built-in features make the enclosure better suited for organized component mounting than a plain empty box.

What temperature range is this enclosure rated for?

The listed operating temperature range for this model is -40 C to 70 C. That range supports use in both low-temperature and moderately high-temperature industrial or commercial environments, as long as the rest of the application is designed within those limits.

What makes this model different from a basic plastic enclosure?

This model combines several differentiators in one enclosure: IP67 and IK08 ratings, ABS construction, a transparent cover, anti-static material, and UV-stabilized outdoor durability. It also includes integrated mounting-related features such as internal plate attachment points and pre-molded screw nuts. Those details make it more application-ready than a basic general-purpose enclosure.
